Used for：
Low volage induced electromotor(600V level) protective relay
break-down watch current relay
alternative replacement for the existing relay

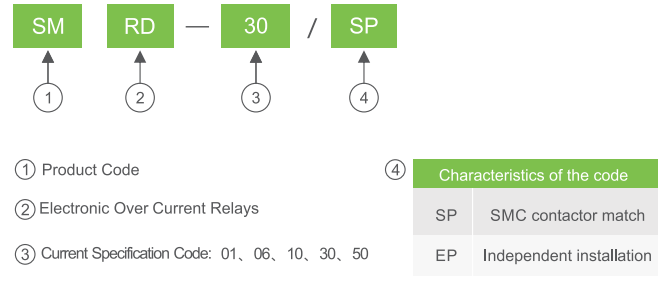

Type and Signification
Product feature：
● Protection against over-current,phase-out and locked-rotor
● The startup delay or operation delay can be set separately
● Adopt relay suitable for vibration and short circuit
● Wide voltage range setting
● Confirm operation display and running current(LED)
● Manual(immediate)/automatic reset
● Fault protection function
● Ultra low power consumption
Technical Parameters
TYPE
Can be equipped with contactor
Specifications and codes
Setting current（A）
Performance characteristic
Constant time-lag
Power（kW）
Defensive function
Overcurrent
Default phase
Locked rotor
Delay time
Reset feature
Manual / Electric Reset
Operating voltage
Voltage
Frequency
Auxiliary contactor
Output contactor
Status
Capacity
Insulation resistance
50MΩ or Higher than megohm DC 500V
Compression strength
Ambient temperature
Stockpile
Operation
Humidity
Indicating action
Red LED: Display pverload action
Green LED(P.L): Display power supply / Red LED(O.L): Display overload action
SMRD-01EP、06EP、30EP
SMRD-01EP、06EP、30EP
SMRD-50EP
SMC-09~22
SMC-32~48
10
30
01
06
30
50
0.5~10
1~30
0.1~1
0.5~6.5
1.5~30
5~50
230~240V
1.5
3.7
~0.05
0.12~0.75
0.55~3.7
1.5~7.5
380~460V
3.7
7.5
~0.15
0.25~1.5
1.5~7.5
3.7~11
O-time
O-time
O-time + D-time
0.5~12s
0.5~30s
180~260V AC
90~260 V AC (*380V,440 AC/DC)
50/60Hz
1C
Order（COM/95-NC/96-NO/98）/ Type B（1a 97,98/1b 95,96）
AC 250V / 5A Resistivity
2kV, 50/60Hz, 1min
-25℃ ~ 70 ℃
-90℃ ~ 80 ℃
45% ~ 85% RH
Outline Dimension:
