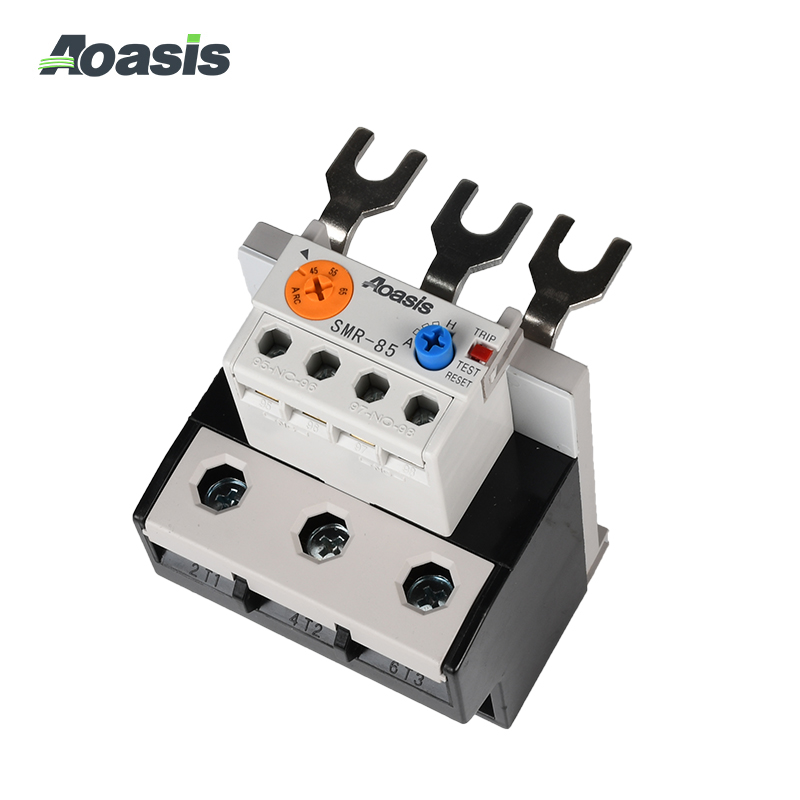

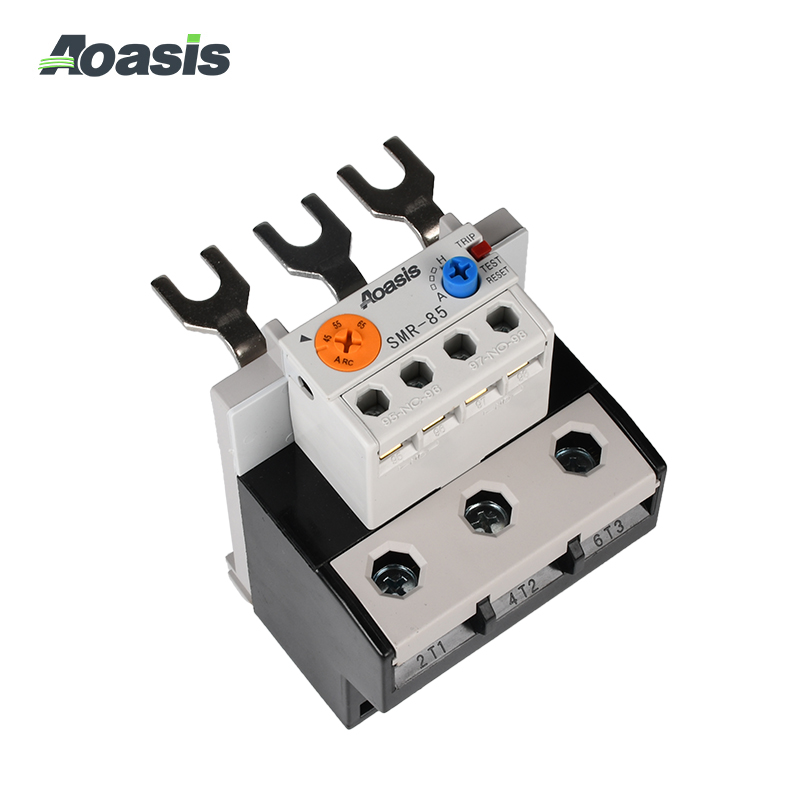

Type and Signification：
Characteristics：

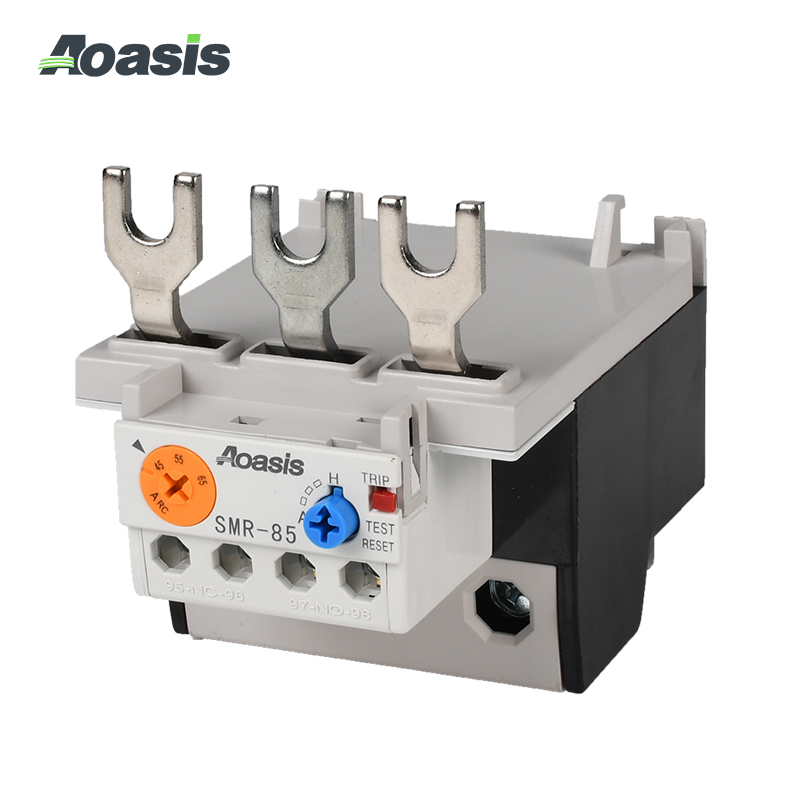

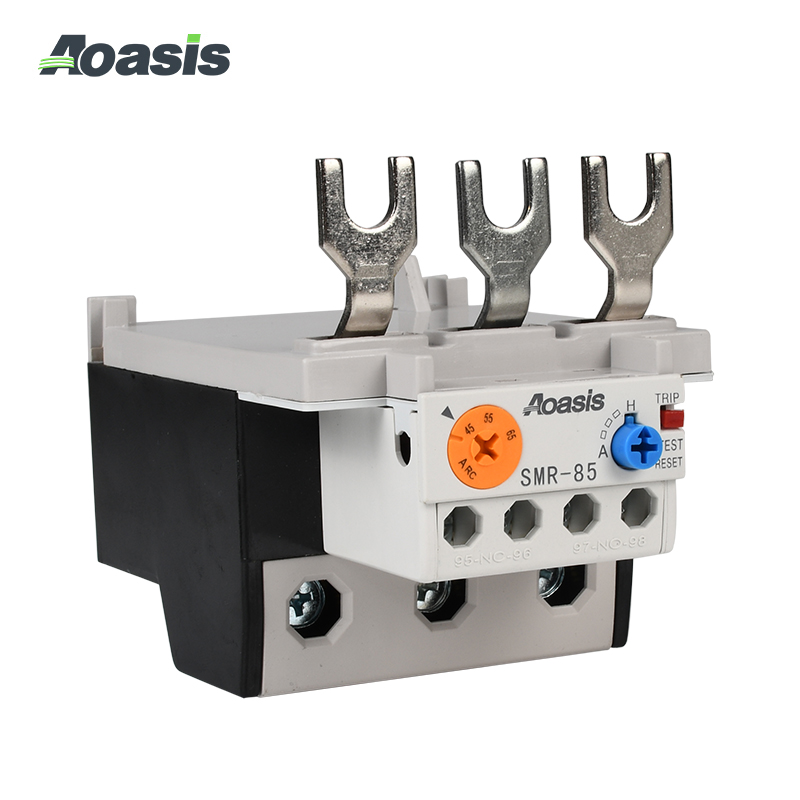

● When the thermal overload relay tripped, the trip indicator will go up 2-3mm;When the thermal overload relay on the mode of manual reset ,you can put on the reset button to reset.
● Automatic reset:put on the reset button and turn 90°anticlockwise.

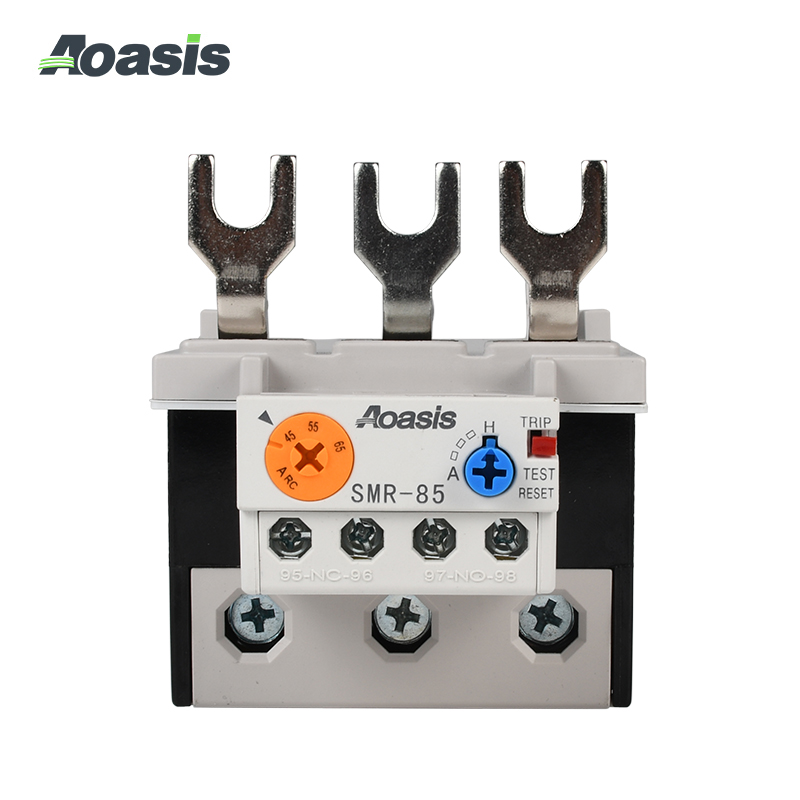

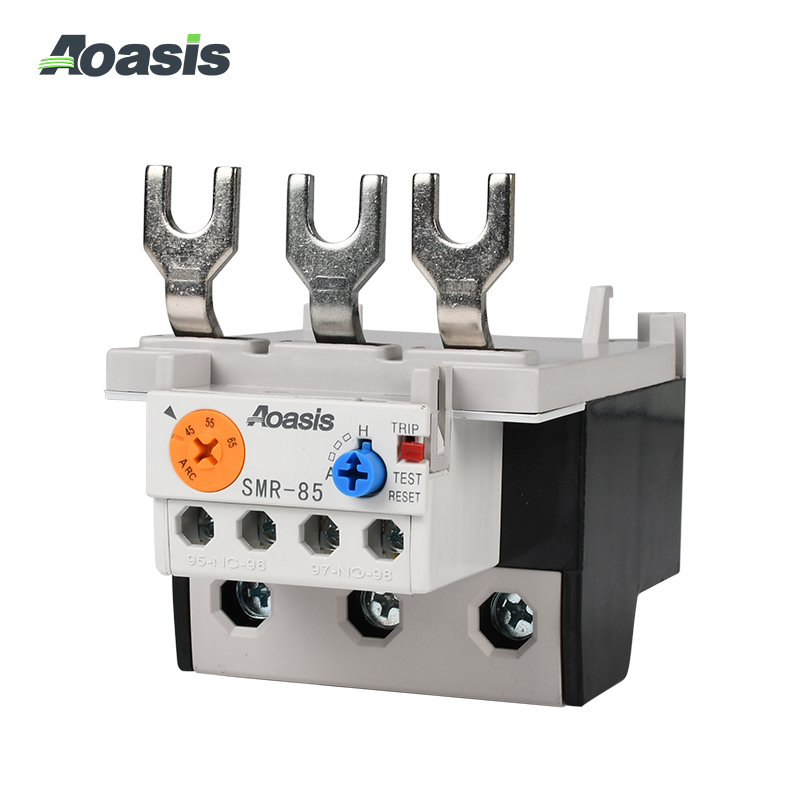

● Main circuit terminal and control circuit terminal is clearly distinguished to avoid wrong wiring by manual.
Technical Parameters：
|
Type |
SMR-85 |
SMR-100 |
|
Return Mode |
Manual or Auto return |
|
|
Current Setting Range |
Setting Range (A) |
Setting Range (A) |
|
34-50 45-65 54-75 63-85
|
34-50 39-57 43-65 54-80 65-100 85-125 |
|
|
Contact Arrangement |
1NO+1NC |
|
|
Model of Matching Contactors |
SMC-50, SMC-65, SMC-75, SMC-85 |
SMC-100, SMC-125 |
Dimensions(mm)：
 |
|
SMR-85 |
