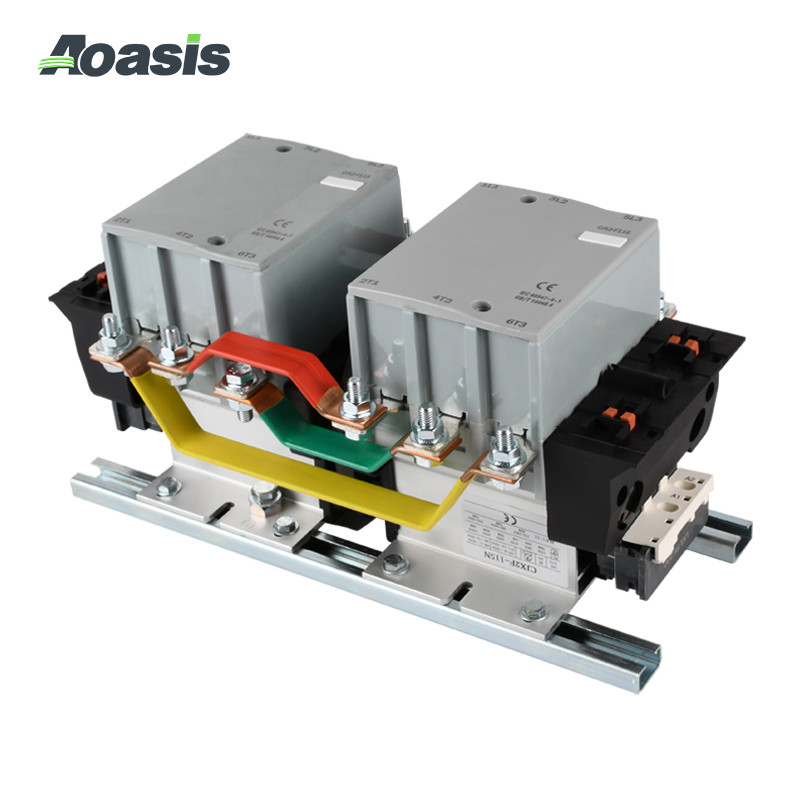

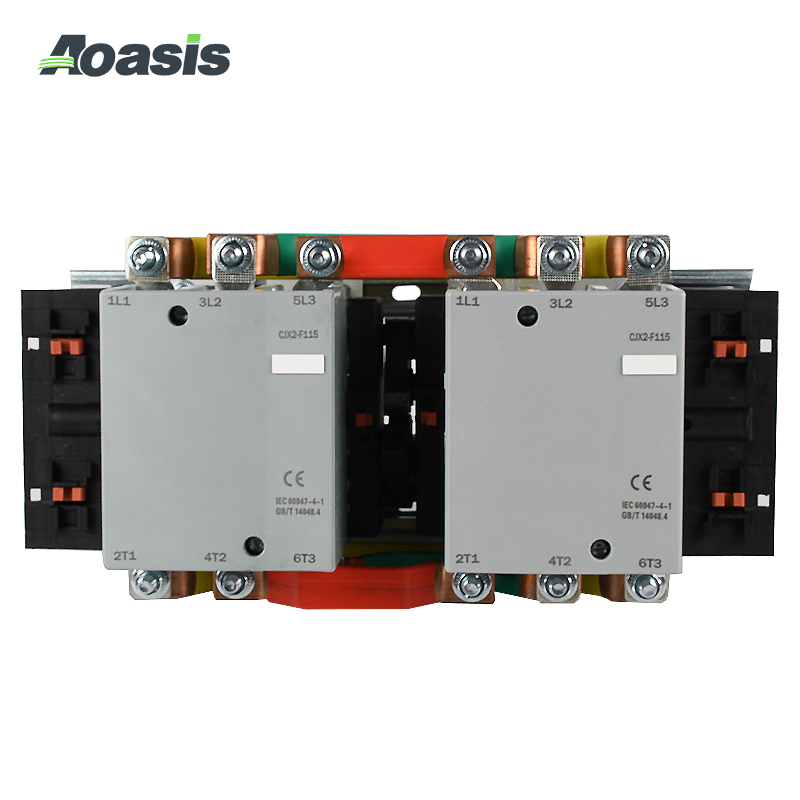

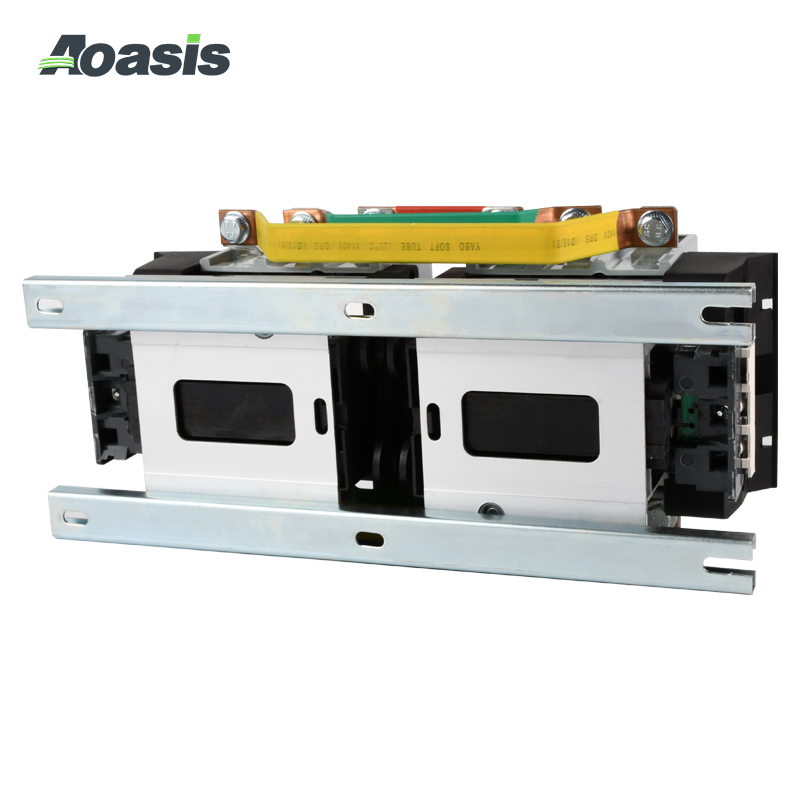

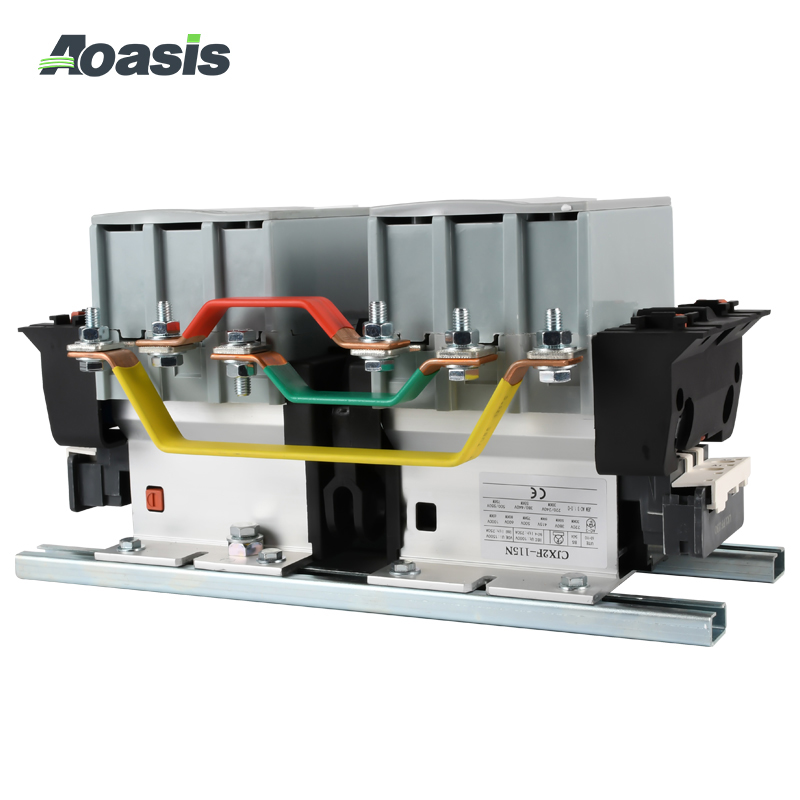

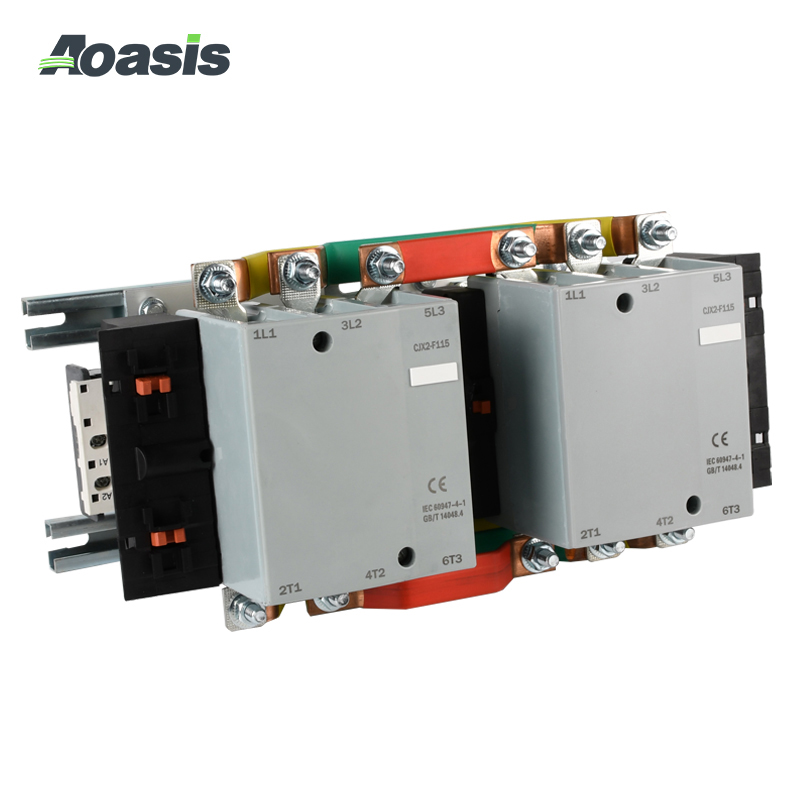

CJX2-F115/150N Reversing Contactor

CJX2-N

Characteristics

Inquiry

Product Details

Technical parameters：


Type

 (AC-3）

Rated Current 400V

(50/60Hz)AC-3(kW)Rated Power of Three-phase Motor

220V

230V

380V

400V

415V

440V

500V

660V

690V

1000V

CJX2-F115N

115

30

55

59

59

75

80

65

CJX2-F150N

150

40

75

80

80

90

100

65

CJX2-F185N

185

55

90

100

100

110

110

100

CJX2-F225N

225

63

110

110

110

129

129

100

CJX2-F265N

265

75

132

140

140

160

160

147

CJX2-F330N

330

100

160

180

200

200

220

160

CJX2-F400N

400

110

200

220

250

257

280

185

CJX2-F500N

500

147

250

280

295

355

335

335

CJX2-F630N

630

200

335

375

400

400

450

425

CJX2-F800N

800

220

450

425

425

450

475

450

Product Mix:

ProductAccessories:

Dimensions(mm):
CJX2-F/N Reversing Contactors(CJX2-F115N\1154N-800N)


CJX2-F/N

a

b

b1

C

G

G1

J

J1

J2

J3

L

P1

115

345

162

137

171

-

80

71

57

-

-

107

77

1154

419

162

137

171

-

80

108

75.5

-

 -

107

77

150

345

170

137

171

 -

80

71

57

-

-

107

71

1504

422

170

137

171

 -

80

111

75.5

 -

-

107

71

185

357

174

137

181

 -

80

78

59.5

 -

-

113.5

78

1854

437

174

137

181

 -

80

118

79.5

 -

-

113.5

78

225

357

197

137

181

 -

80

78

59.5

 -

-

113.5

62

2254

437

197

137

181

-

80

118

79.5

 -

-

113.5

54

265

425

203

145

213

 -

96

109

61.5

 -

 -

141

100

2654

521

203

145

213

-

96

157

85.5

 -

-

141

100

330

447

206

145

219

-

96

124

65.5

 -

-

145

107

3304

543

206

145

219

-

96

172

89.5

 -

 -

145

107

400

446

206

209

219

80

170

157

64.5

67

19.5

145

107

4004

542

206

209

219

80

170

157

112.5

67

67.5

145

107

500

485

238

209

232

80

170

156

84.5

66

39.5

146

112

5004

595

238

209

232

140

230

156

79.5

66

34.5

146

112

630

636

304

280

255

180

-

139

68.5

-

-

155

137

6304

796

304

280

255

240

 -

139

68.5

 -

-

155

137

800

636

304

280

255

180

 -

139

68.5

 -

 -

155

137

(1)Except AOC -F630 and F800 : 4 x中10.5.

(2)ExceptAOC -F630and F800.
