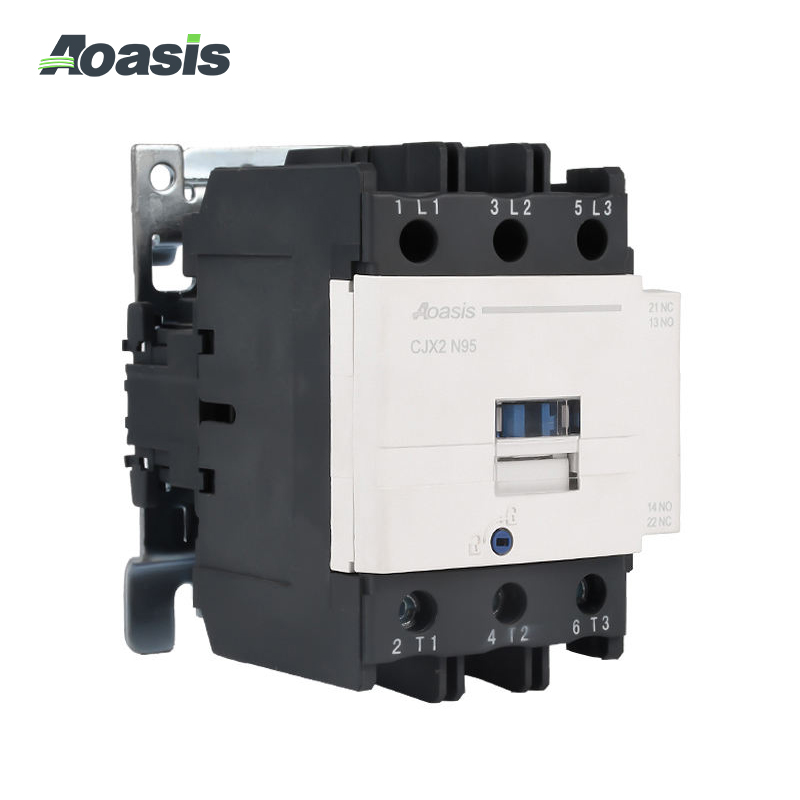

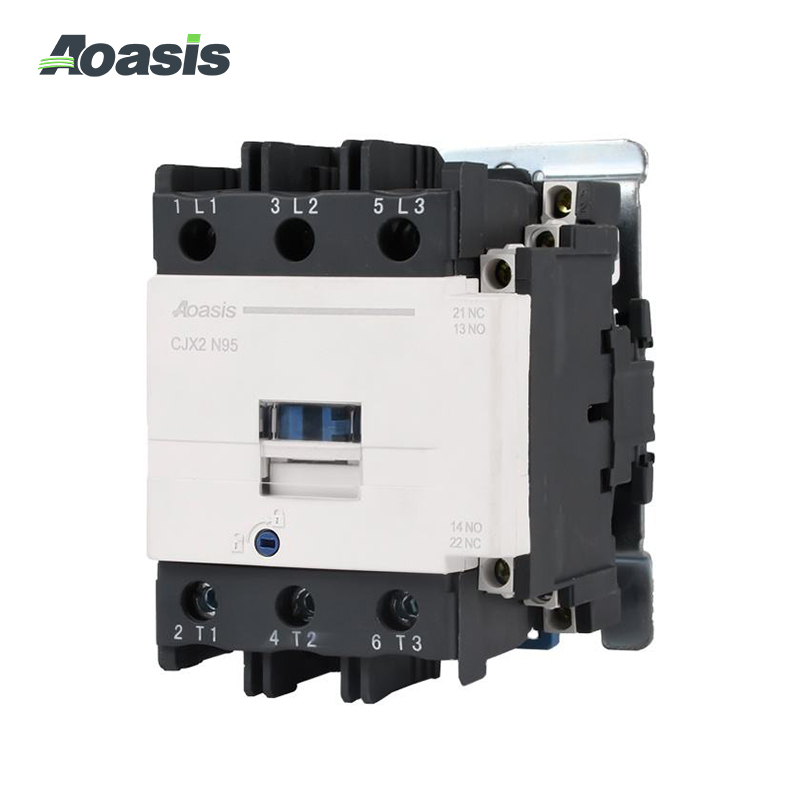

Technical Parameters:
|
Type |
CJX2N-40 |
CJX2N-50 |
CJX2N-65 |
CJX2N-80 |
CJX2N-95 |
|||
|
Rated Power kW/HP(AC-3) IEC60947-4-1 GB14048.4 |
200-240V |
11/15 |
15/20 |
18.5/25 |
22/30 |
25/35 |
||
|
380-440V |
18.5/25 |
22/30 |
30/40 |
37/50 |
45/60 |
|||
|
500-550V |
22/30 |
30/40 |
37/50 |
45/60 |
45/60 |
|||
|
Rated Current A(AC-3) IEC60947-4-1 GB14048.4 |
200-240V |
50 |
60 |
75 | 90 | 110 | ||
|
380-440V |
40 | 50 | 65 | 80 | 95 | |||
|
380-440V |
34 | 39 | 42 | 49 | 59 | |||
|
Conventional Thermal Current lth:(A) |
60 | 80 | 80 | 110 | 130 | |||
|
Rated Insulated Voltage Ui:(V) |
690 |
|||||||
|
Auxiliary Contact AC-15 |
Contact
Arrangement |
Standard |
1NO+1NC |
|||||
|
Special |
---- | |||||||
|
Rated Current A(AC-15) IEC60947-5-1 GB14048.5 |
200-240V |
1.6 | ||||||
|
380-440V |
0.95 | |||||||
|
Conventional Thermal Current lth:(A) |
16 | |||||||
|
Electric Life(Million Times)(AC-3) |
1 | |||||||
| Mechanical Life(Million Times) | 5 | |||||||
Circuits Characteristic and Terminal Connection:
AC
50Hz/60Hz
Connection Circuits
CJX2N-40
CJX2N-50
CJX2N-65
CJX2N-80
CJX2N-95
Coil Voltage(V)
24，48，110，220/230，380/400，420/440
Acting Range
Attraction(Hot)
（85%～110%）Us；+40℃
Release(Cold)
AC:(20%～75%）Us,DC:(10%～75%）Us;-5℃
Installation
35mm DIN Rail or Screw(M4)
Control Circuit Connection
Min./Max,sectional area
1wire
4/50
10/120
2wires
4/25
10/120+10/50
1wire
4/50
10/120
2wires
4/16
10/120+10/50
1wire
4/50
10/120
2wires
4/25
10/120+10/50
External Dimensions(mm) H(height):
