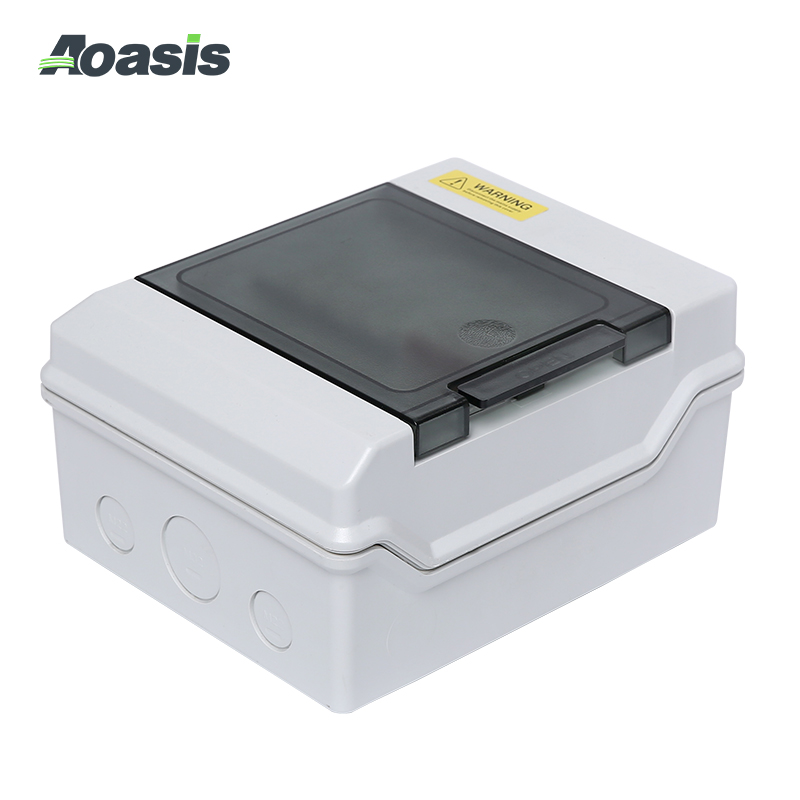

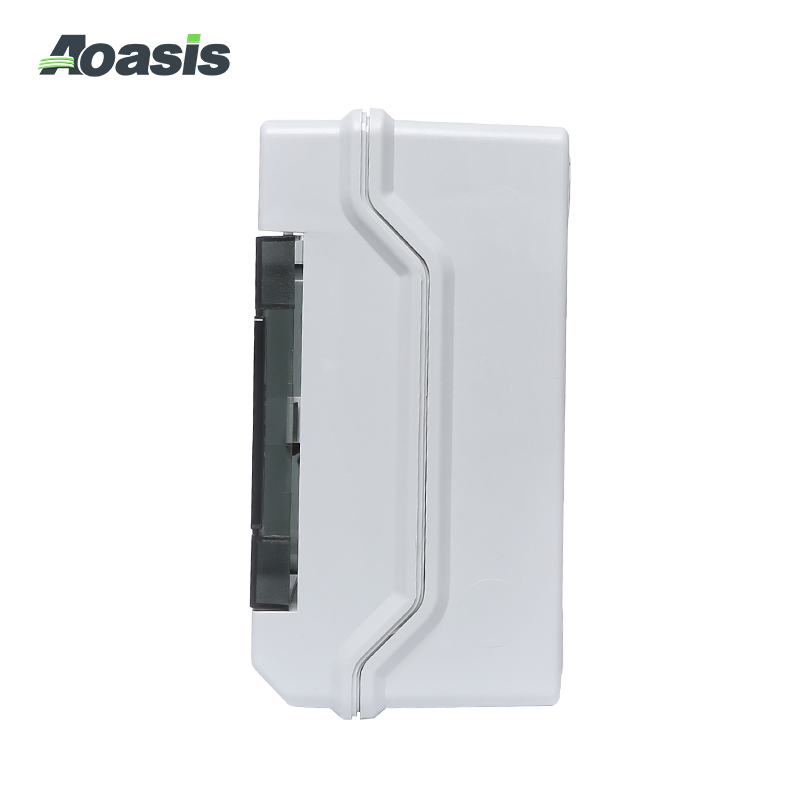

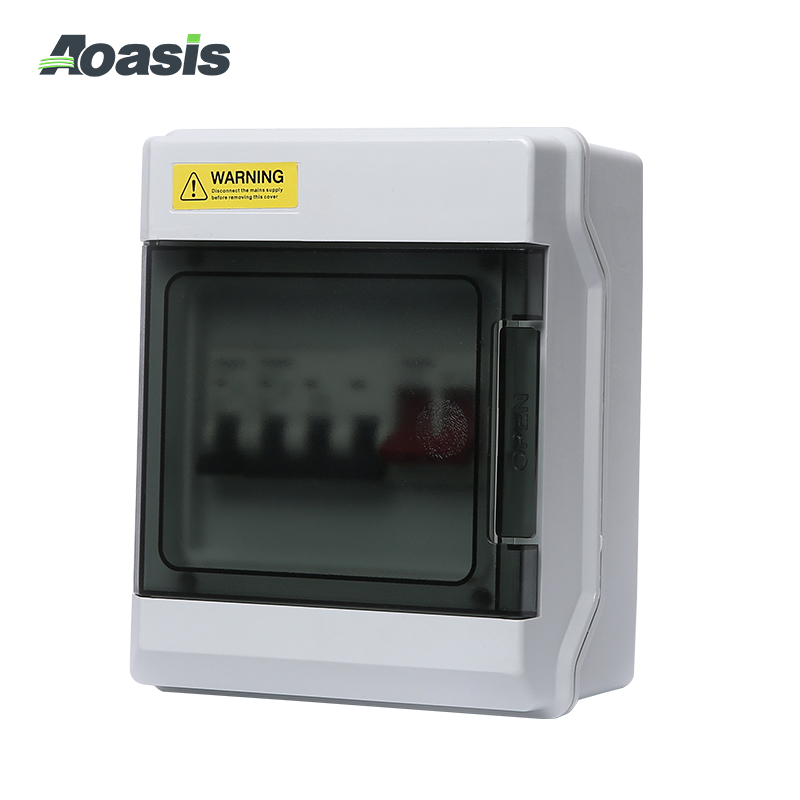

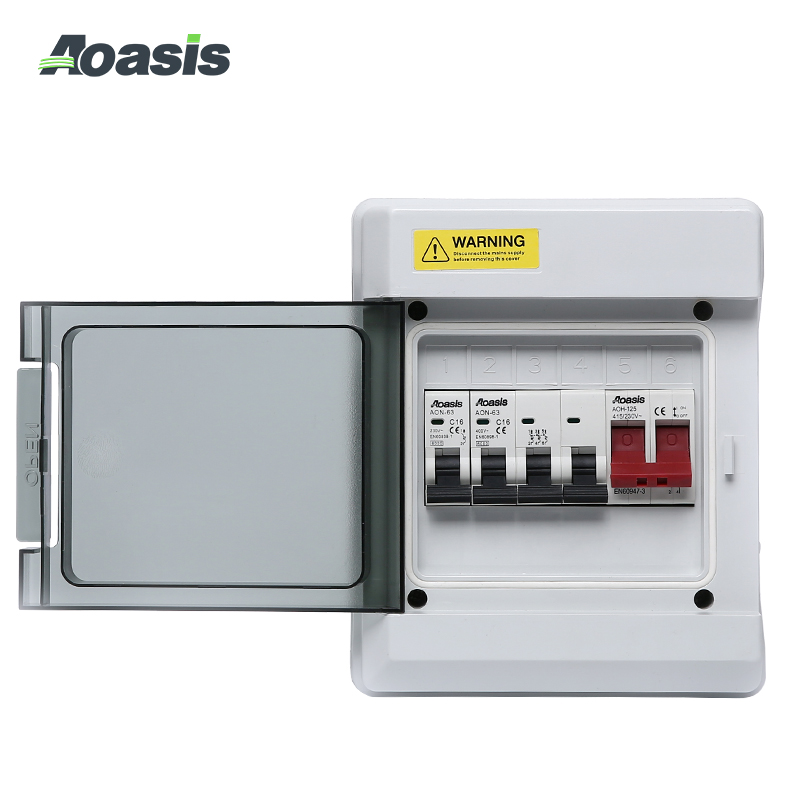

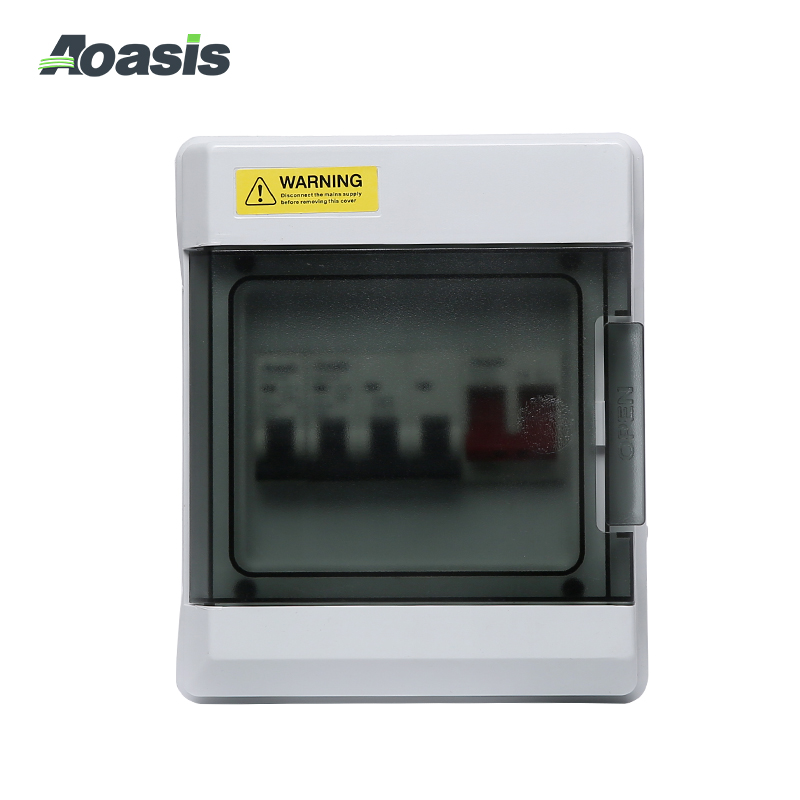

AOX1-6MP

Waterproof Distribution Box

Characteristics

AOX1 Series Distribution Box is suitable for residences, apartments, villas, hotels,commercial buildings and other places.
Used in conjunction with Aoasis modular low-voltage power distribution products,it provides real estate developers,electrical switchgear manufacturers,and end users with a safe, stable and complete indoor low-voltage terminal power distribution solution.

Inquiry

Product Details

Video

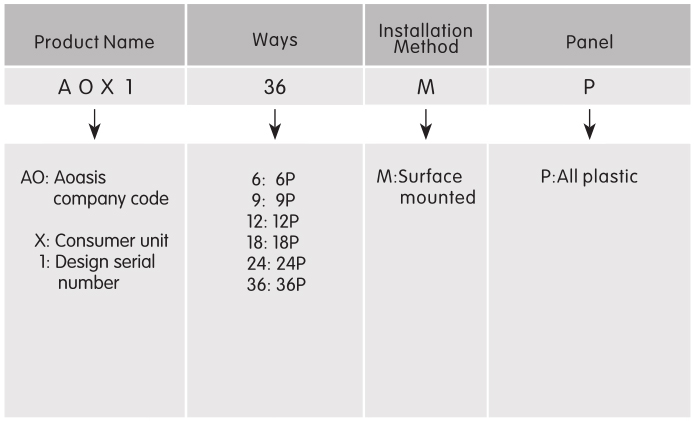

Product Selection:


Note:The width is multiple of 18mm, 1-digit width is 18mm.


Main Parameter:

Rated Working Voltage

230/400VAC

Max.Rated Working Current

125A

Case Material

Movable door: Translucence

The movable door is made of high quality PC material.

The bottom box is made of ABS flame retardant material with V-0 flame retardant grade.

Installation and Wiring

There are knockout holes on the top and bottom for easy access of wires.

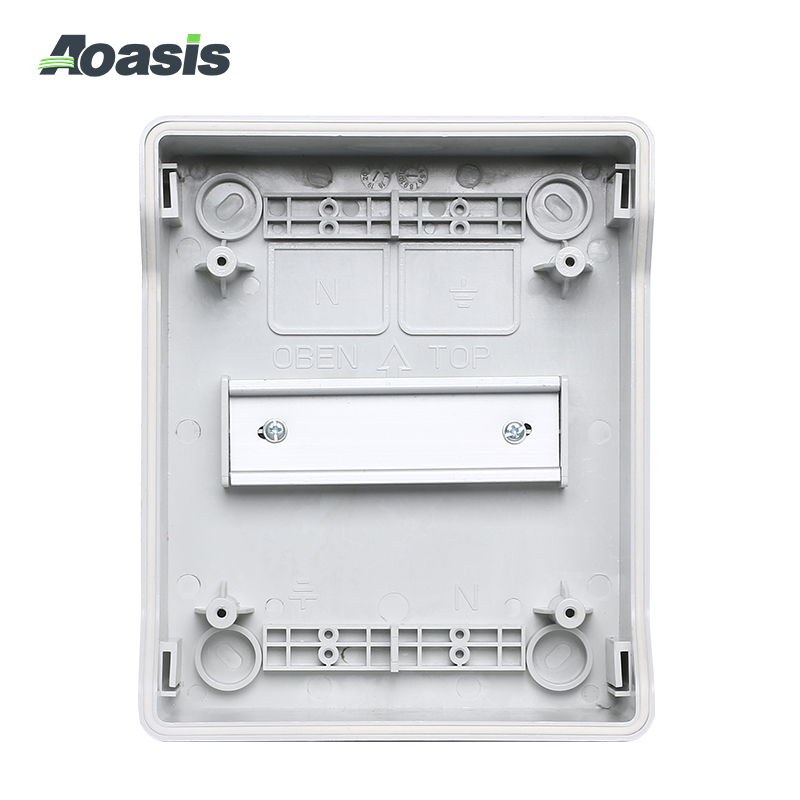

There is a distance between the bottom box and the guide rail to meet the customer's wiring needs.

For easy and accurate installation, the guide rail can be fine-tuned in the vertical direction, and also can be fine-tuned up and down.

Standard

GB/T 17466.1,GB/T 17466.24

Protection Grade

Ip30

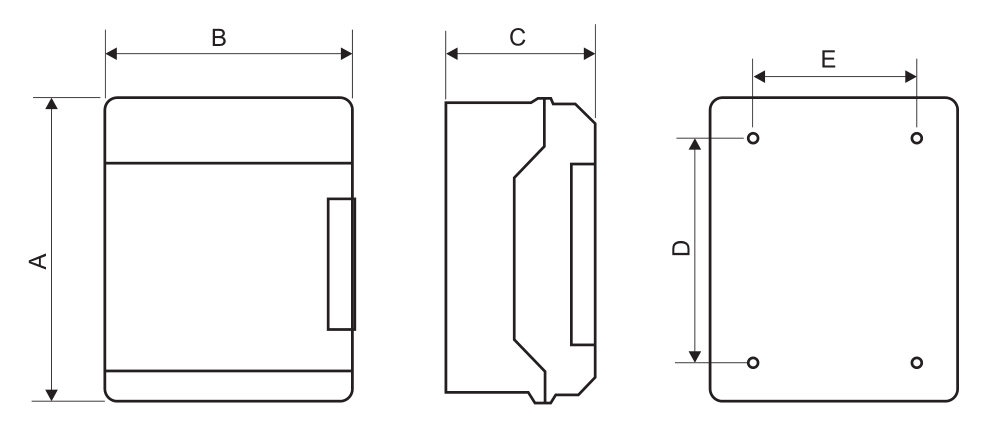

Outline Overall andInstallation Dimensions(mm):

Type

Ways

A

B

C

D

E

AOX1-6MP

6P

200

165

100

-

-

AOX1-9MP

9P

200

219

100

-

-

AOX1-12MP

12P

230

273

110

-

-

AOX1-18MP

18P

230

381

110

-

-

AOX1-24MP

24P

-

-

-

-

-

AOX1-36MP

36P

-

-

-

-

-
