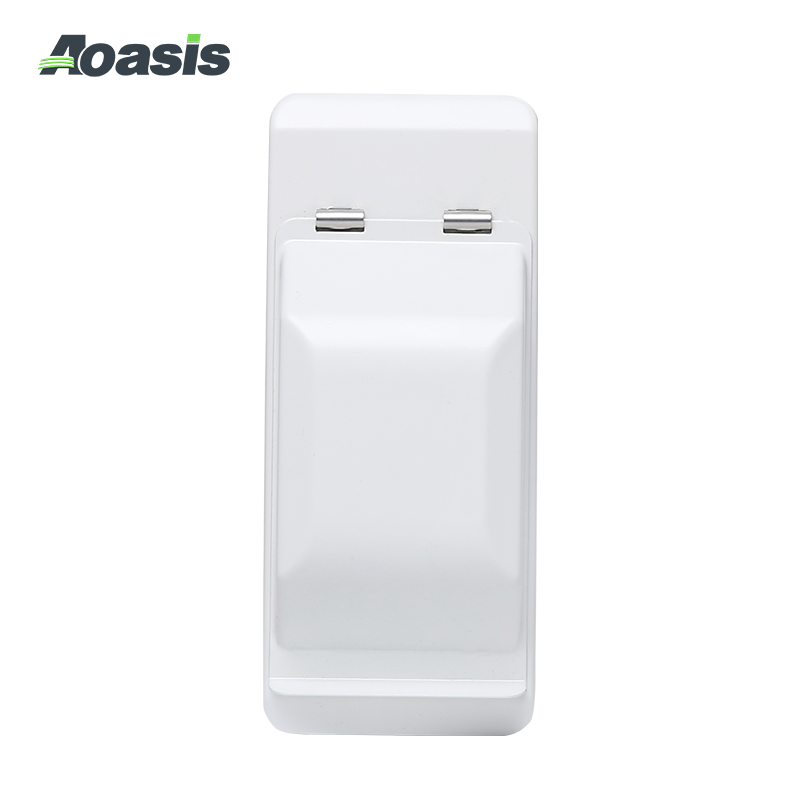

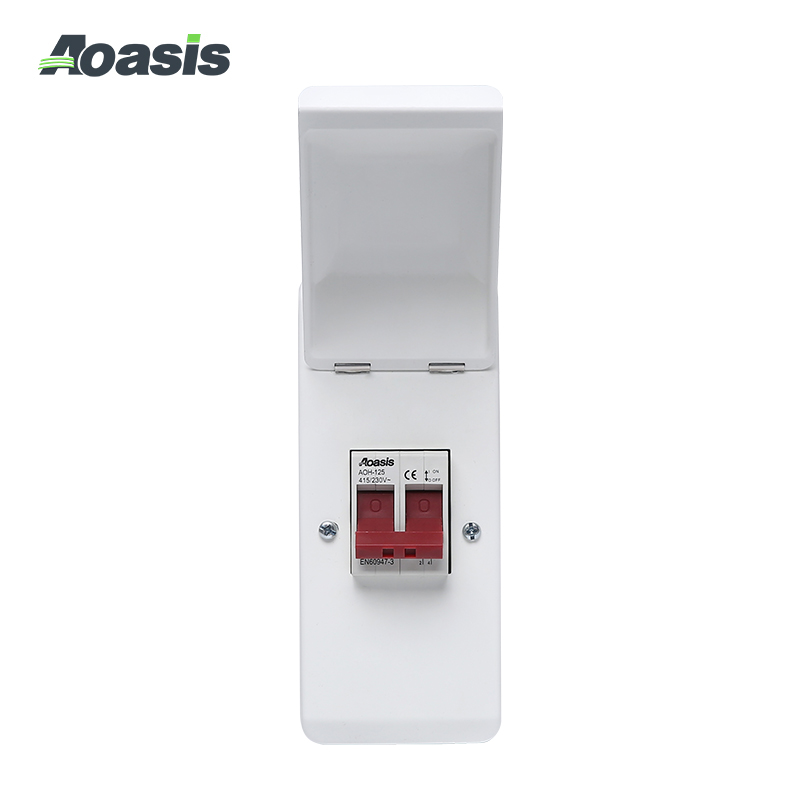

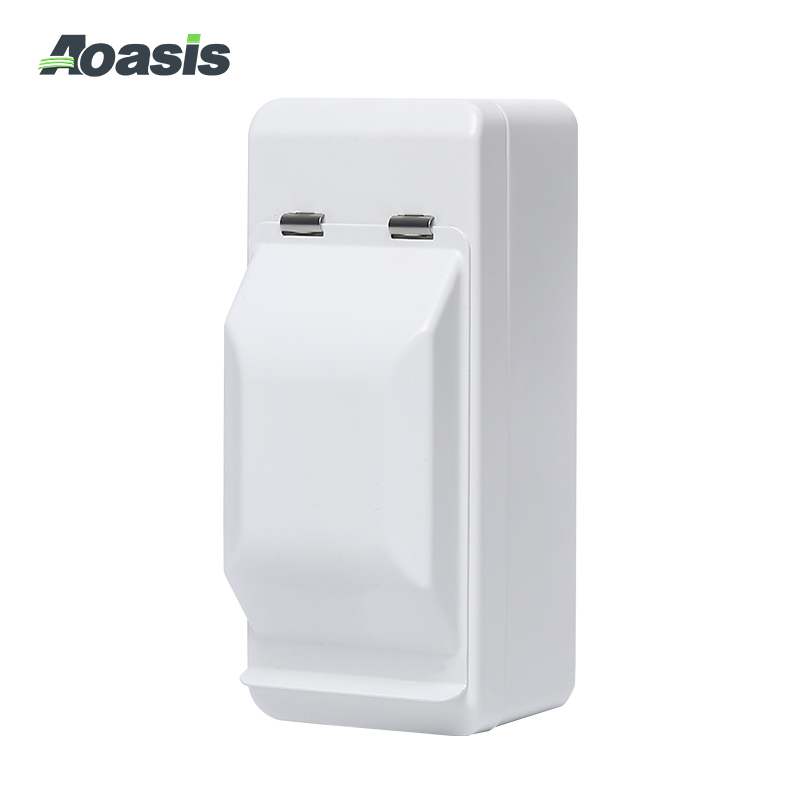

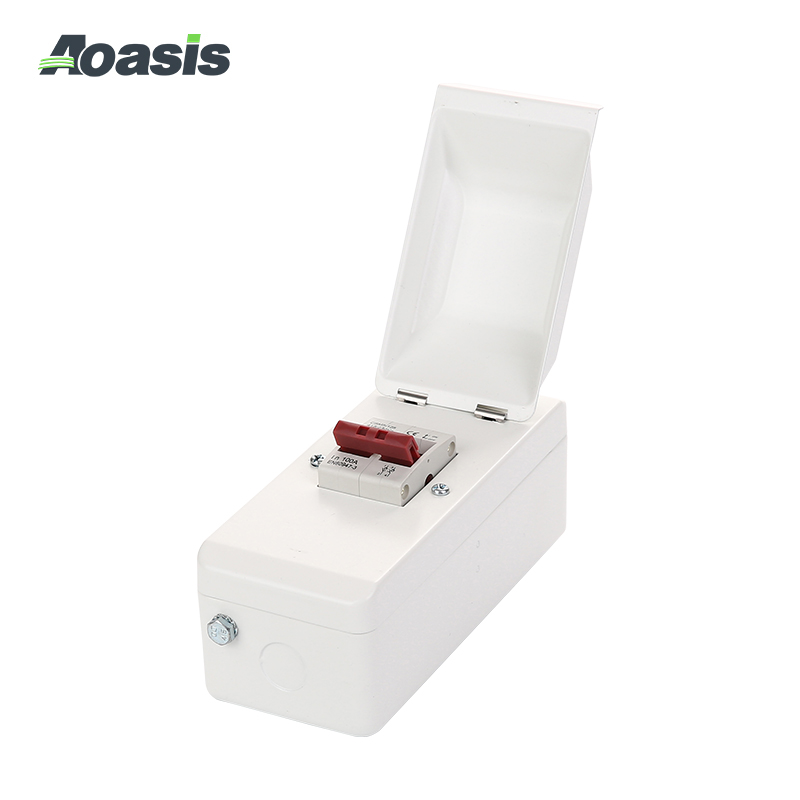

AOX1-2MT

Metal Distribution Box

Characteristics

AOX1 Series Distribution Box is suitable for residences, apartments, villas, hotels,commercial buildings and other places.
Used in conjunction with Aoasis modular low-voltage power distribution products,it provides real estate developers,electrical switchgear manufacturers,and end users with a safe, stable and complete indoor low-voltage terminal power distribution solution.

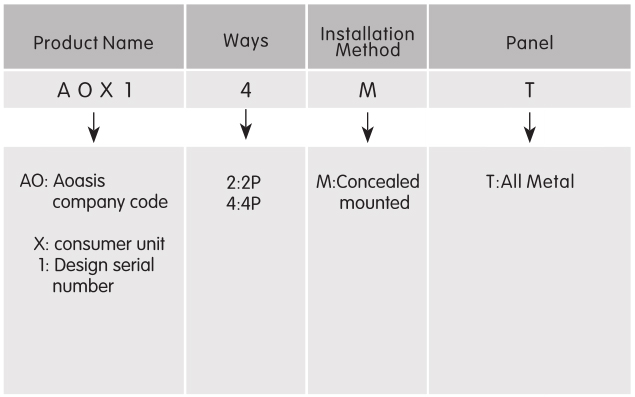

Product Selection:

Note:The width is multiple of 18mm, 1-digit width is 18mm.


Main Parameter:

Rated Working Voltage

230/400VAC

Max.Rated Working Current

125A

Case Material

Movable door: Ivory

The movable door adopts high-quality cold-rolled steel plate material.

The bottom box is made of cold-rolled steel plate, and the edges are bent.The surface is treated with electrostatic spray, which is strong and durable and has excellent corrosion resistance.

Installation and Wiring

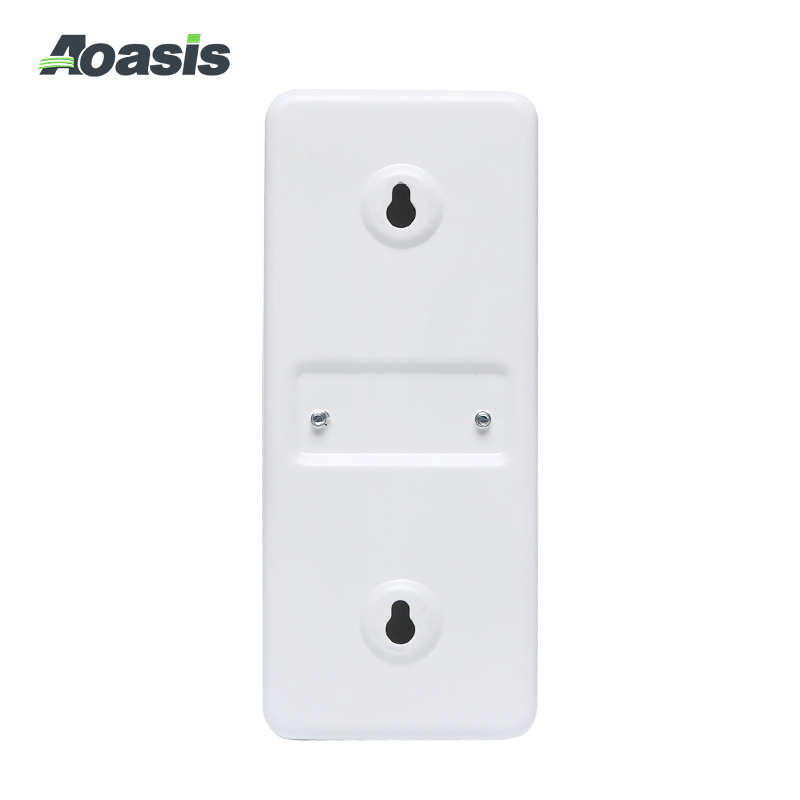

There are knockout holes on the top and bottom for easy access of wires.

There is a distance between the bottom box and the guide rail to meet the customer's wiring needs.

For easy and accurate installation, the guide rail can be fine-tuned in the vertical direction, and also can be fine-tuned up and down.

Standard

GB/T 17466.1,GB/T 17466.24

Protection Grade

Ip30

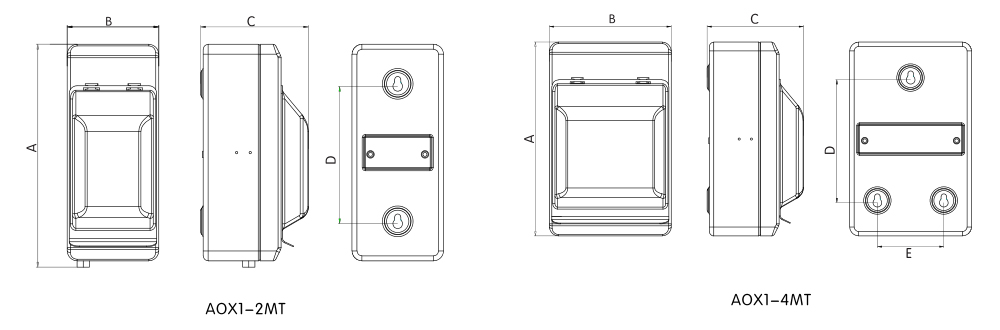

Outline Overall and Installation Dimensions(mm) :

Type

Ways

A

B

C

D

E

AOX1-2MT

2P

180

74

91

111

-

AOX1-4MT

4P

175

110

91

111

60
