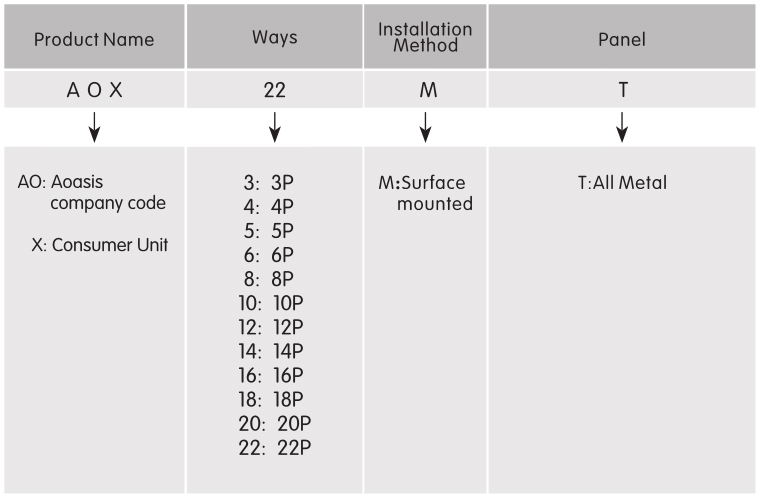

Product Selection：
Note:The width is multiple of 18mm, 1-digit width is 18mm.
Main Parameter：
|
Rated Working Voltage |
230/400VAC |
|
Max.Rated Working Current |
125A |
|

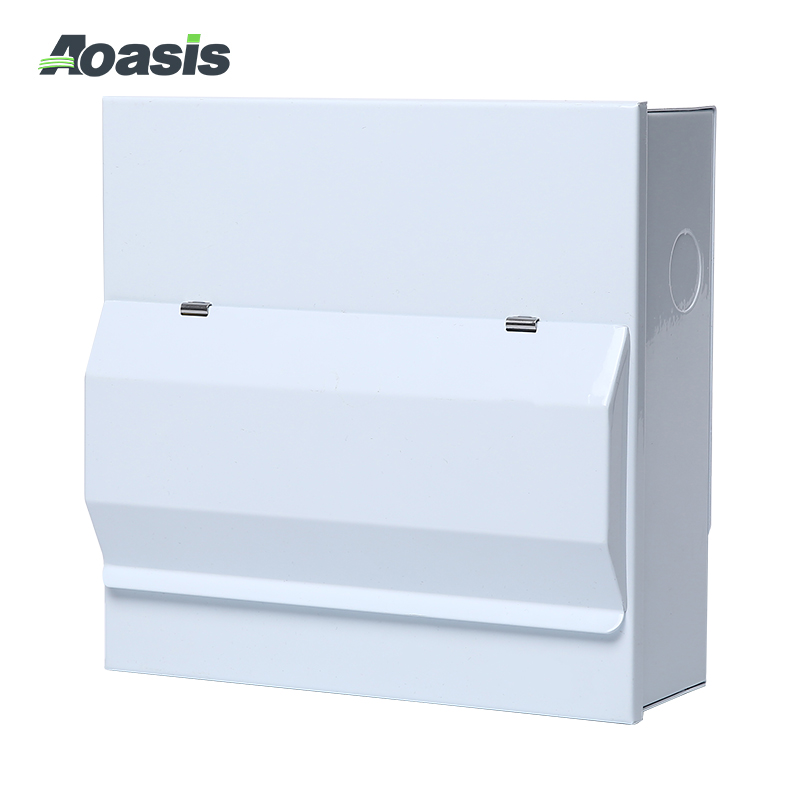

Case Material |
Movable door: Ivory |
|
The movable door adopts high-quality cold-rolled steel plate material. |
|
|
The bottom box is made of cold-rolled steel plate, and the edges are bent.The surface is treated with electrostatic spray, which is strong and durable and has excellent corrosion resistance. |
|
|

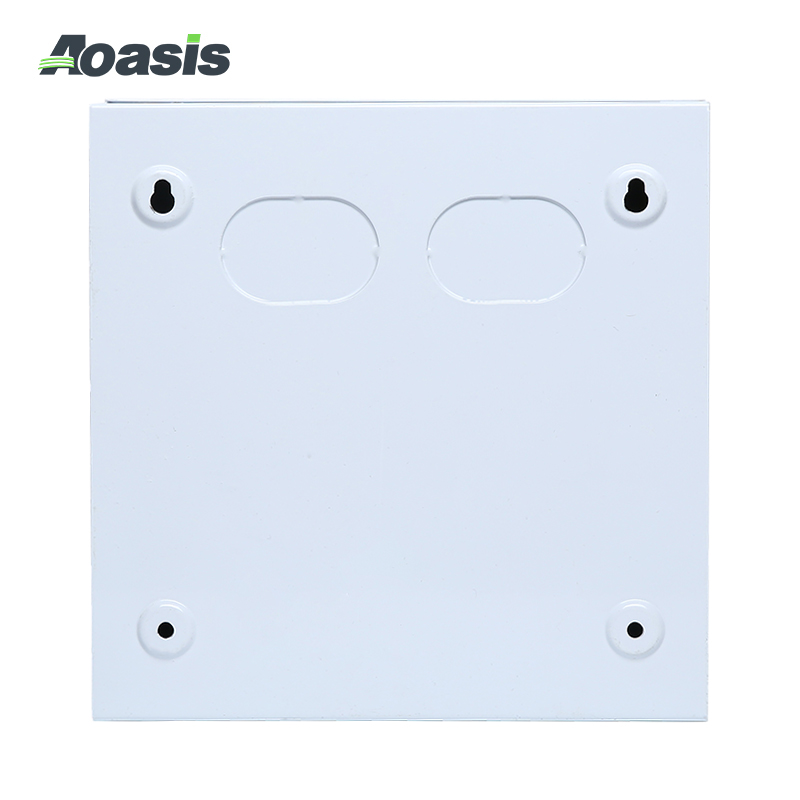

Installation and Wiring |

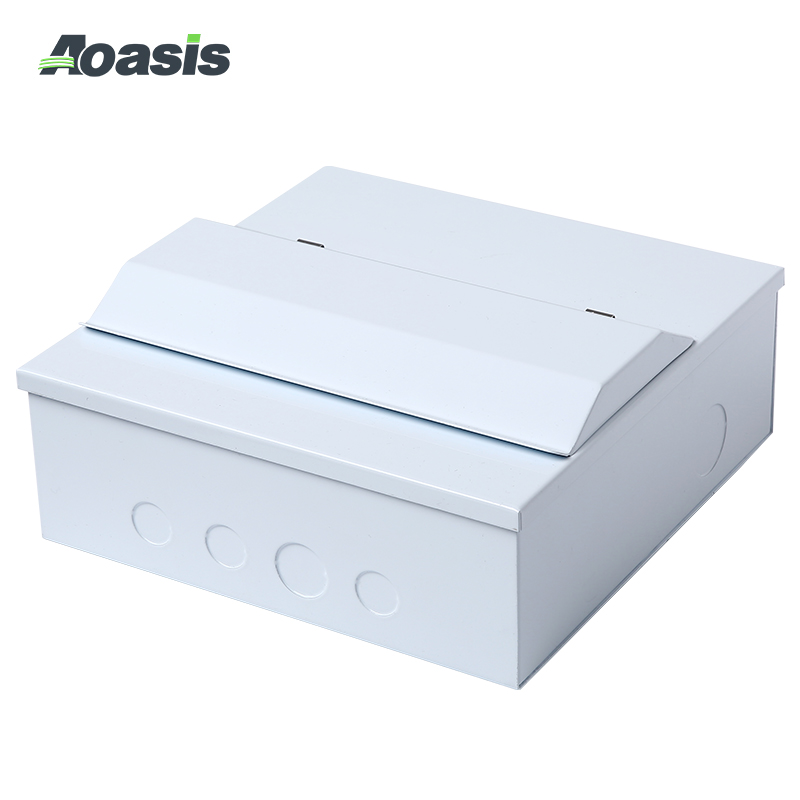

There are knockout holes on the top and bottom for easy access of wires. |
|

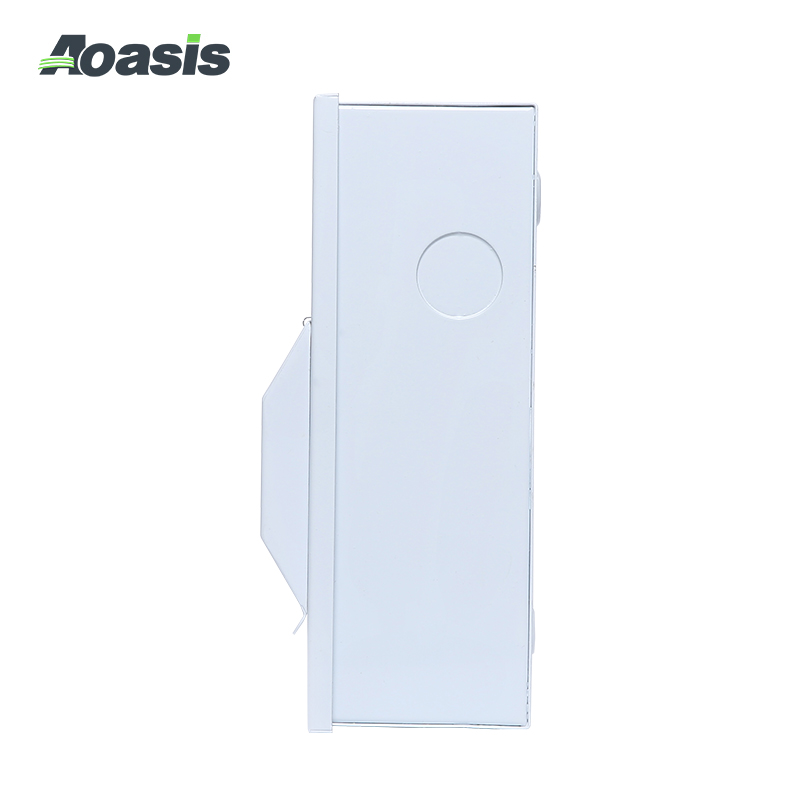

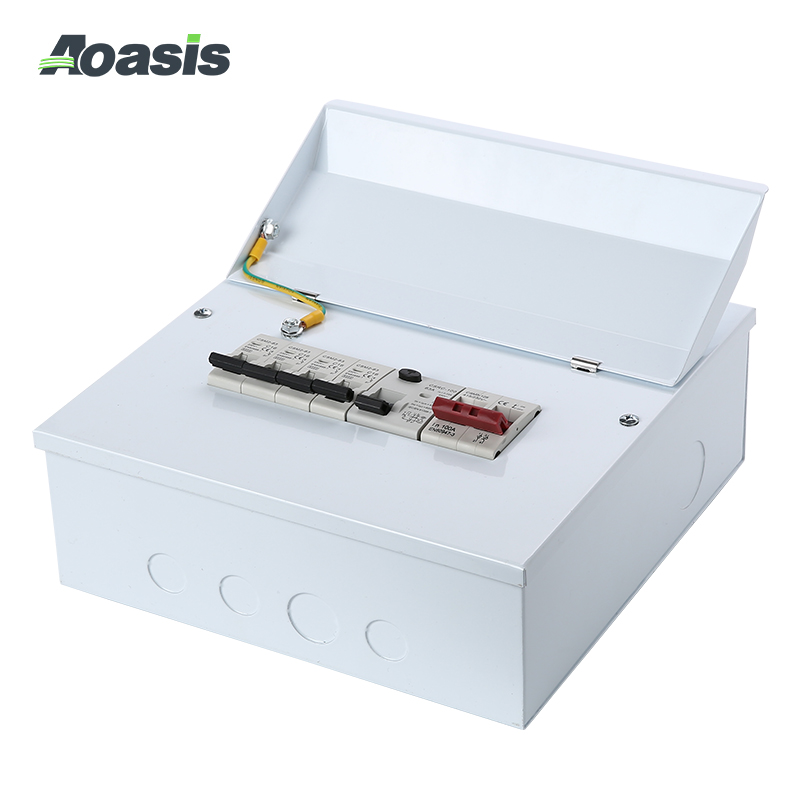

There is a distance between the bottom box and the guide rail to meet the customer's wiring needs. |
|
|
For easy and accurate installation, the guide rail can be fine-tuned in the vertical direction, and also can be fine-tuned up and down. |
|
|
Standard |
GB/T 17466.1,GB/T 17466.24 |
|
Protection Grade |
Ip30 |

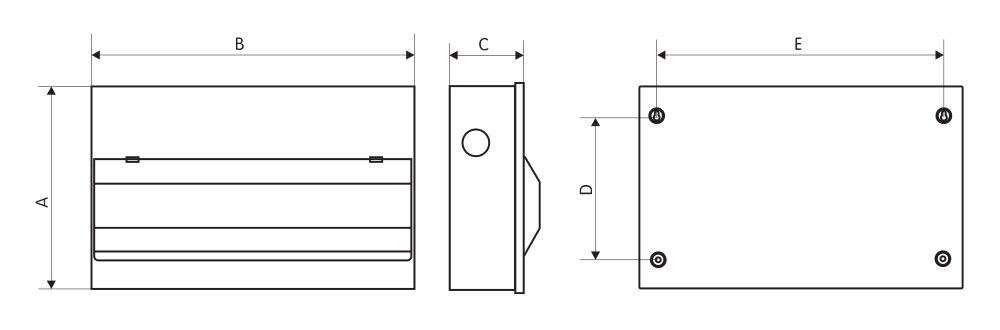

Outline Overall andInstallation Dimensions(mm)：
|
Type |
Ways |
A |
B |
C |
D |
E |
|
AOX-3MT |
3P |
240 |
108 |
110 |
154 |
- |
|
AOX-4MT |
4P |
240 |
126 |
110 |
154 |
- |
|
AOX-5MT |
5P |
240 |
144 |
110 |
154 |
- |
|
AOX-6MT |
6P |
240 |
204 |
102 |
154 |
150 |
|
AOX-8MT |
8P |
240 |
240 |
102 |
154 |
186 |
|
AOX-10MT |
10P |
240 |
276 |
102 |
154 |
214 |
|
AOX-12MT |
12P |
240 |
312 |
102 |
154 |
250 |
|
AOX-14MT |
14P |
240 |
348 |
102 |
154 |
286 |
|
AOX-16MT |
16P |
240 |
384 |
102 |
154 |
323 |
|
AOX-18MT |
18P |
240 |
420 |
102 |
154 |
352 |
|
AOX-20MT |
20P |
240 |
456 |
102 |
154 |
394 |
|
AOX-22MT |
22P |
240 |
492 |
102 |
154 |
430 |
