AOX-16MT

Metal Distribution Box

Characteristics

AOX Series Distribution Box is suitable for residences, apartments, villas, hotels,commercial buildings and other places.
Used in conjunction with Aoasis modular low-voltage power distribution products,it provides real estate developers,electrical switchgear manufacturers,and end users with a safe, stable and complete indoor low-voltage terminal power distribution solution.

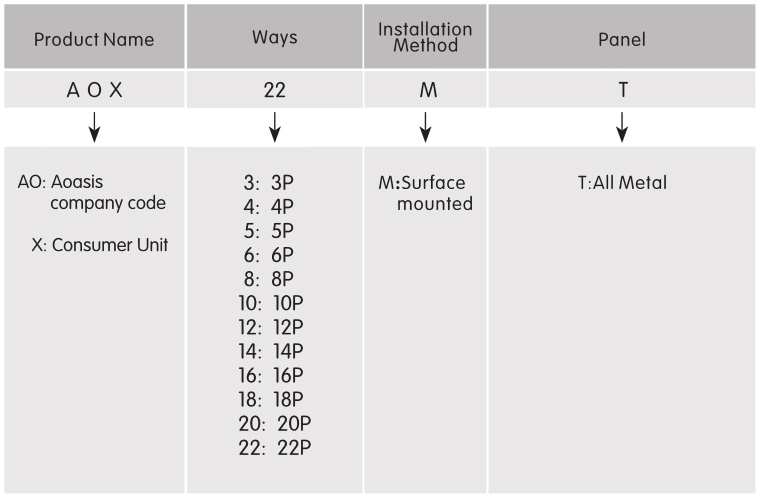

Product Selection:

Note:The width is multiple of 18mm, 1-digit width is 18mm.


Main Parameter:

Rated Working Voltage

230/400VAC

Max.Rated Working Current

125A

Case Material

Movable door: Ivory

The movable door adopts high-quality cold-rolled steel plate material.

The bottom box is made of cold-rolled steel plate, and the edges are bent.The surface is treated with electrostatic spray, which is strong and durable and has excellent corrosion resistance.

Installation and Wiring

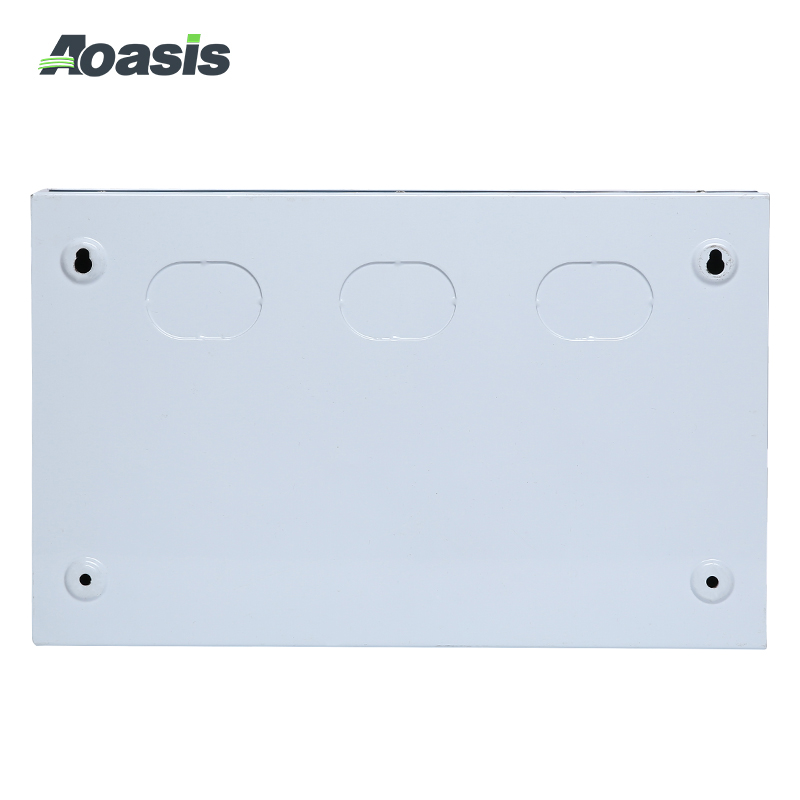

There are knockout holes on the top and bottom for easy access of wires.

There is a distance between the bottom box and the guide rail to meet the customer's wiring needs.

For easy and accurate installation, the guide rail can be fine-tuned in the vertical direction, and also can be fine-tuned up and down.

Standard

GB/T 17466.1,GB/T 17466.24

Protection Grade

Ip30

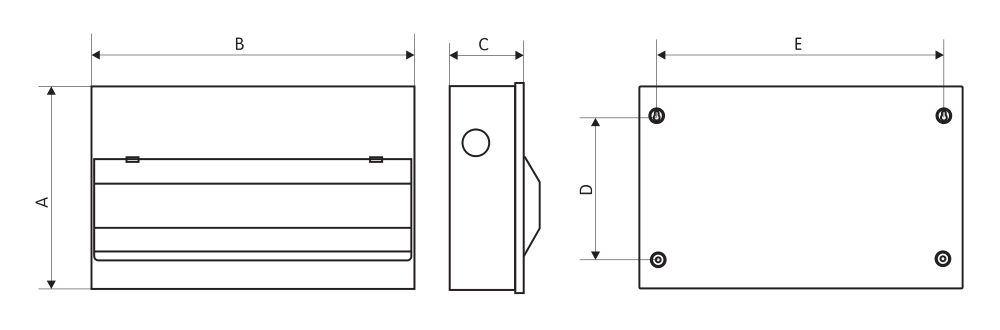

Outline Overall andInstallation Dimensions(mm):

Type

Ways

A

B

C

D

E

AOX-3MT

3P

240

108

110

154

-

AOX-4MT

4P

240

126

110

154

-

AOX-5MT

5P

240

144

110

154

-

AOX-6MT

6P

240

204

102

154

150

AOX-8MT

8P

240

240

102

154

186

AOX-10MT

10P

240

276

102

154

214

AOX-12MT

12P

240

312

102

154

250

AOX-14MT

14P

240

348

102

154

286

AOX-16MT

16P

240

384

102

154

323

AOX-18MT

18P

240

420

102

154

352

AOX-20MT

20P

240

456

102

154

394

AOX-22MT

22P

240

492

102

154

430
