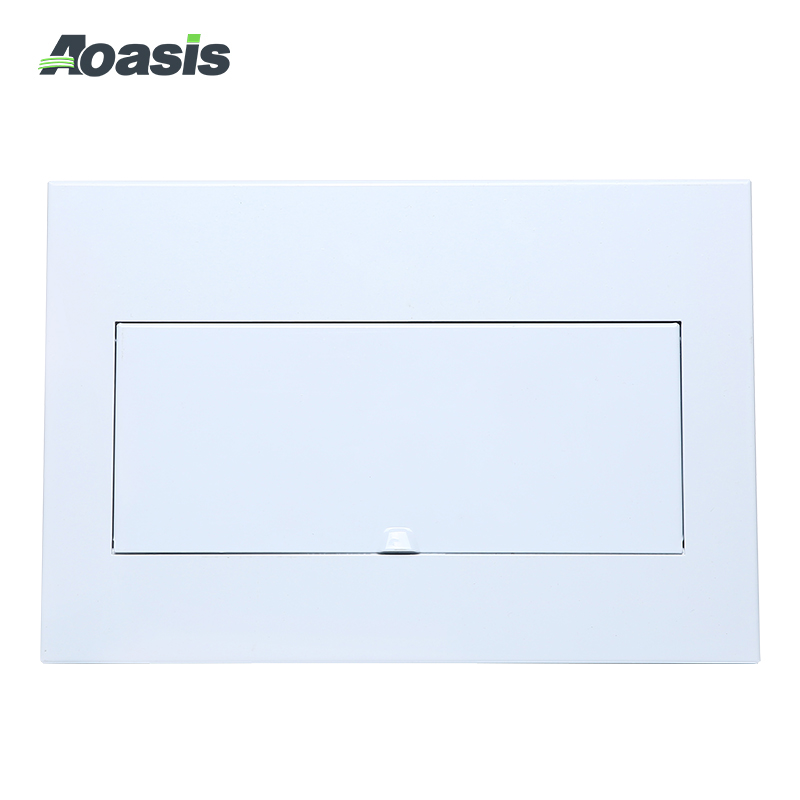

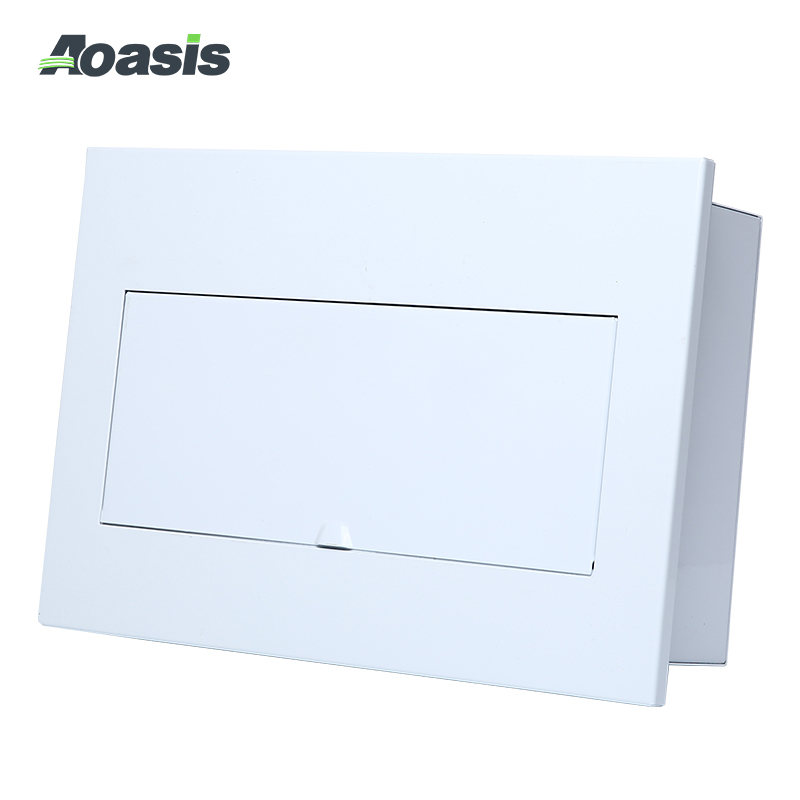

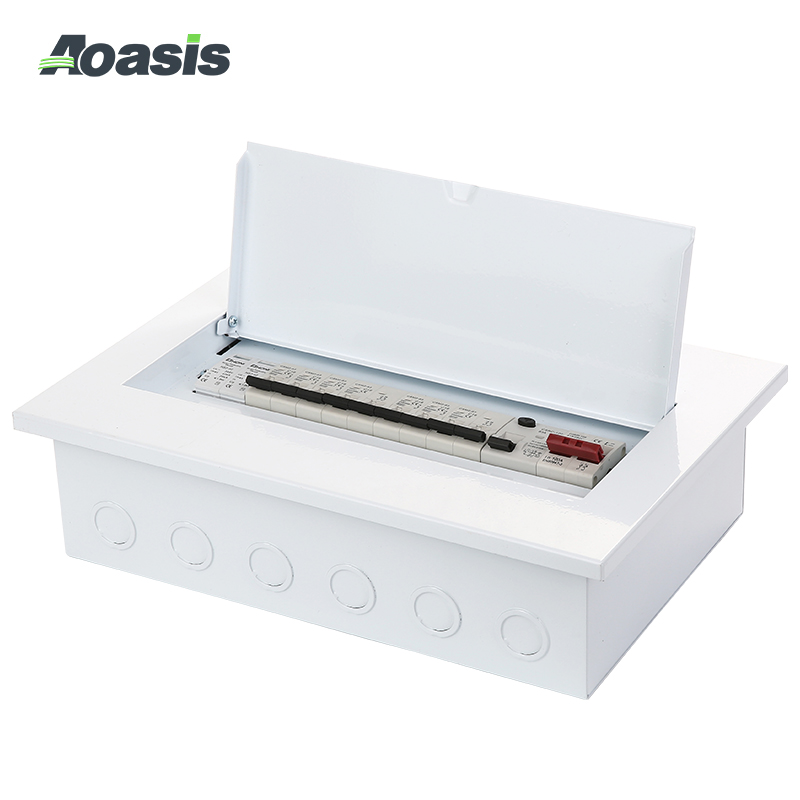

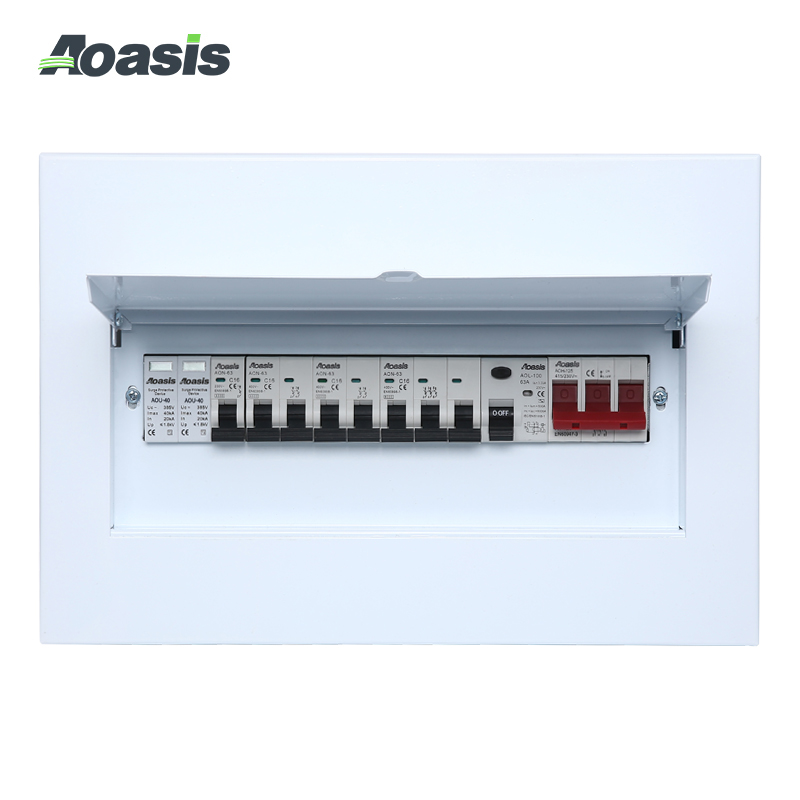

AOX-15RT

Metal Distribution Box

Characteristics

AOX Series Distribution Box is suitable for residences, apartments, villas, hotels,commercial buildings and other places.
Used in conjunction with Aoasis modular low-voltage power distribution products,it provides real estate developers,electrical switchgear manufacturers,and end users with a safe, stable and complete indoor low-voltage terminal power distribution solution.

Inquiry

Product Details

Video

Product Selection：


Note:The width is multiple of 18mm, 1-digit width is 18mm.



Main Parameter：

Rated Working Voltage

230/400VAC

Max.Rated Working Current

125A

Case Material

Movable door: Ivory

The movable door adopts high-quality cold-rolled steel plate material.

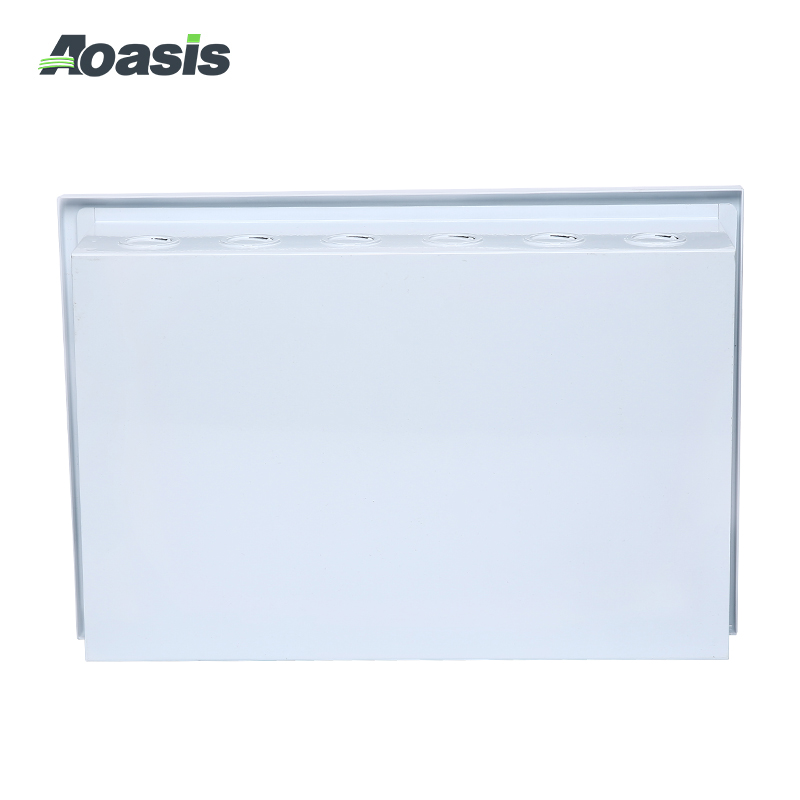

The bottom box is made of cold-rolled steel plate, and the edges are bent.The surface is treated with electrostatic spray, which is strong and durable and has excellent corrosion resistance.

Installation and Wiring

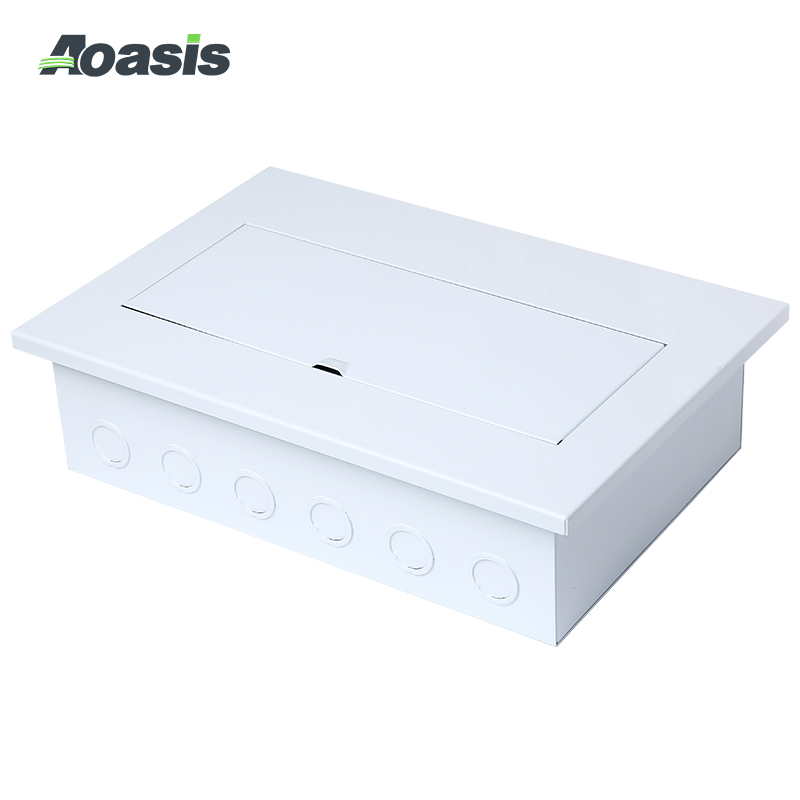

There are knockout holes on the top and bottom for easy access of wires.

There is a distance between the bottom box and the guide rail to meet the customer's wiring needs.

For easy and accurate installation, the guide rail can be fine-tuned in the vertical direction, and also can be fine-tuned up and down.

Standard

GB/T 17466.1,GB/T 17466.24

Protection Grade

Ip30



Outline Overall andInstallation Dimensions(mm)：

Type

Ways

A

B

C

D

E

F

AOX-6RT

6P

256

216

104

225

184

95

AOX-8RT

8P

256

252

104

225

220

95

AOX-10RT

10P

256

287

104

225

256

95

AOX-12RT

12P

256

323

104

225

292

95

AOX-15RT

15P

256

376

104

225

346

95

AOX-18RT

18P

256

430

104

225

400

95

AOX-20RT

20P

256

467

104

225

436

95

AOX-24RT

24P Single row

456

323

104

420

292

95
