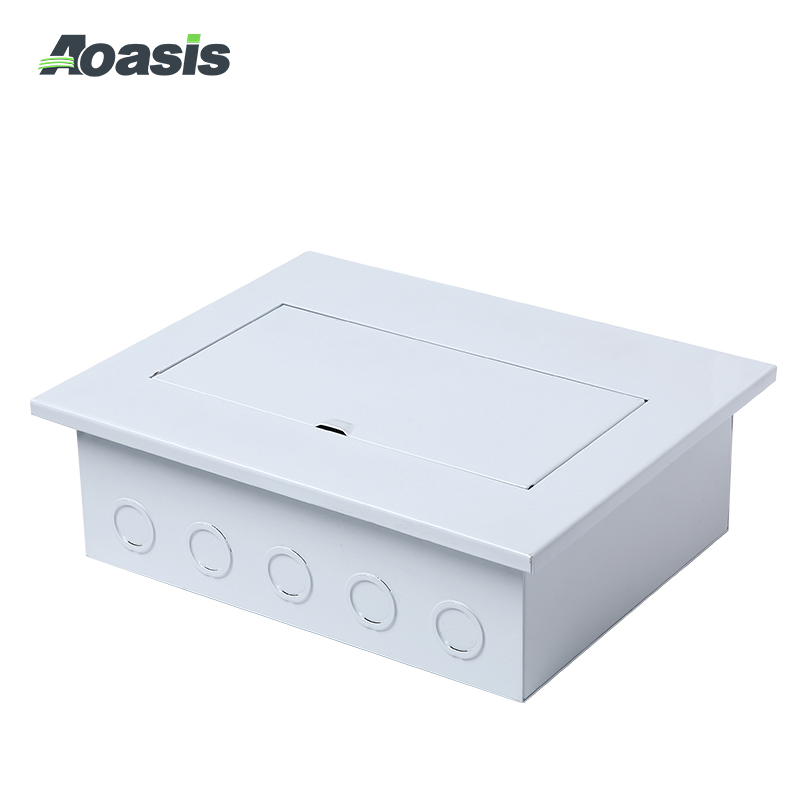

Product Selection：

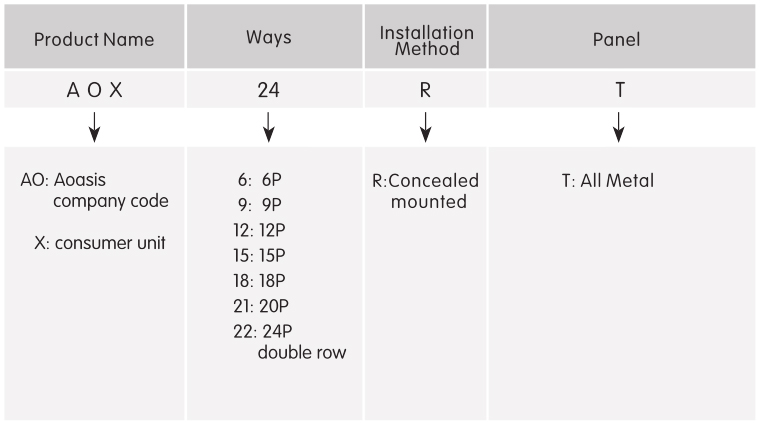

Note:The width is multiple of 18mm, 1-digit width is 18mm.
Main Parameter：
|
Rated Working Voltage |
230/400VAC |
|
Max.Rated Working Current |
125A |
|
Case Material |
Movable door: Ivory |
|
The movable door adopts high-quality cold-rolled steel plate material. |
|
|
The bottom box is made of cold-rolled steel plate, and the edges are bent.The surface is treated with electrostatic spray, which is strong and durable and has excellent corrosion resistance. |
|
|

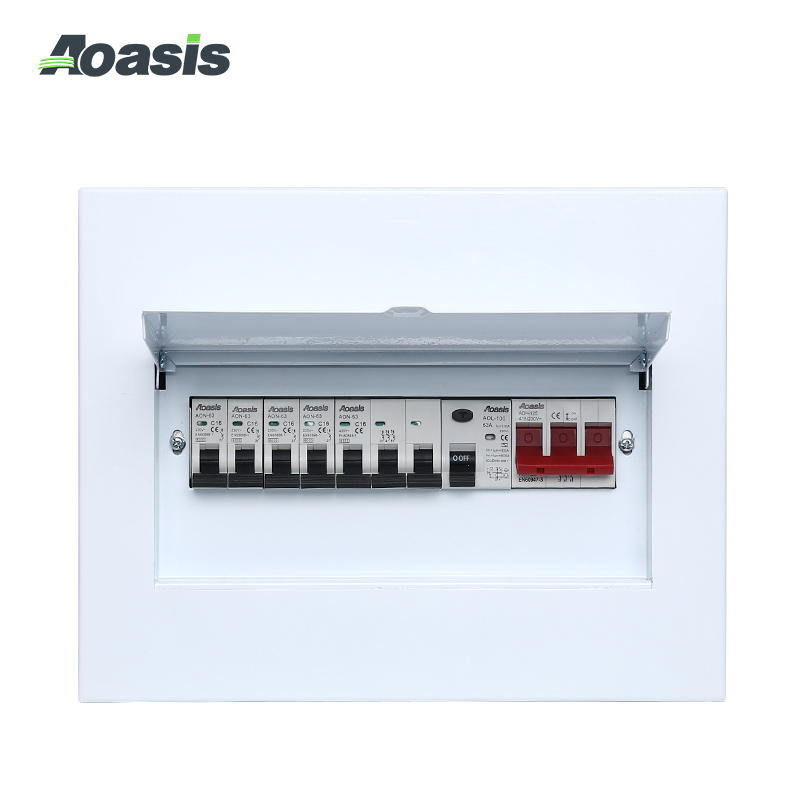

Installation and Wiring |

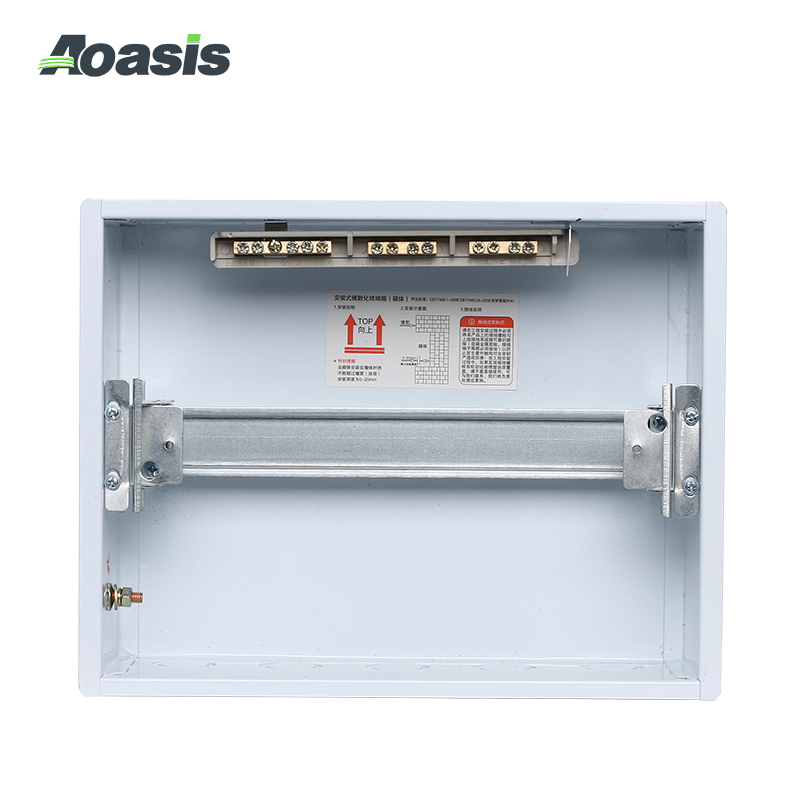

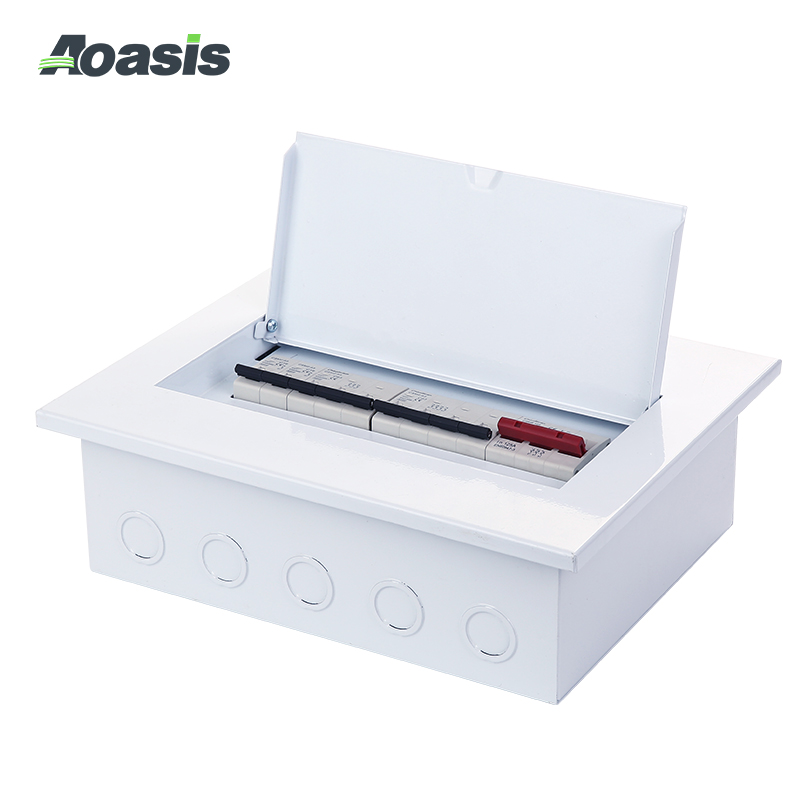

There are knockout holes on the top and bottom for easy access of wires. |
|
There is a distance between the bottom box and the guide rail to meet the customer's wiring needs. |
|
|
For easy and accurate installation, the guide rail can be fine-tuned in the vertical direction, and also can be fine-tuned up and down. |
|
|
Standard |
GB/T 17466.1,GB/T 17466.24 |
|
Protection Grade |
Ip30 |

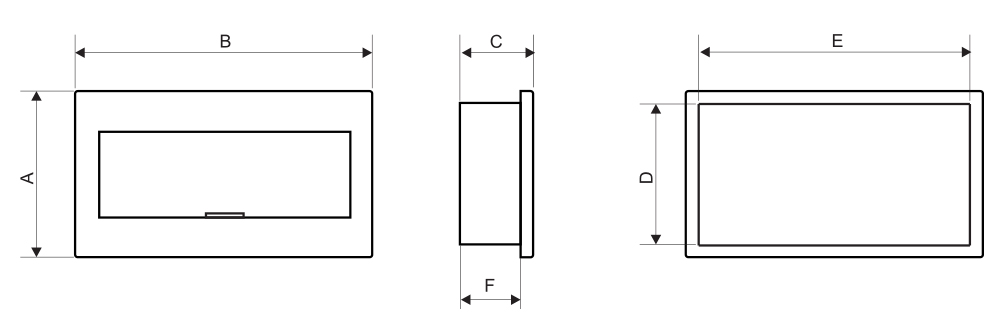

Outline Overall andInstallation Dimensions(mm)：
|
Type |
Ways |
A |
B |
C |
D |
E |
F |
|
AOX-6RT |
6P |
256 |
216 |
104 |
225 |
184 |
95 |
|
AOX-8RT |
8P |
256 |
252 |
104 |
225 |
220 |
95 |
|
AOX-10RT |
10P |
256 |
287 |
104 |
225 |
256 |
95 |
|
AOX-12RT |
12P |
256 |
323 |
104 |
225 |
292 |
95 |
|
AOX-15RT |
15P |
256 |
376 |
104 |
225 |
346 |
95 |
|
AOX-18RT |
18P |
256 |
430 |
104 |
225 |
400 |
95 |
|
AOX-20RT |
20P |
256 |
467 |
104 |
225 |
436 |
95 |
|
AOX-24RT |
24P Single row |
456 |
323 |
104 |
420 |
292 |
95 |
