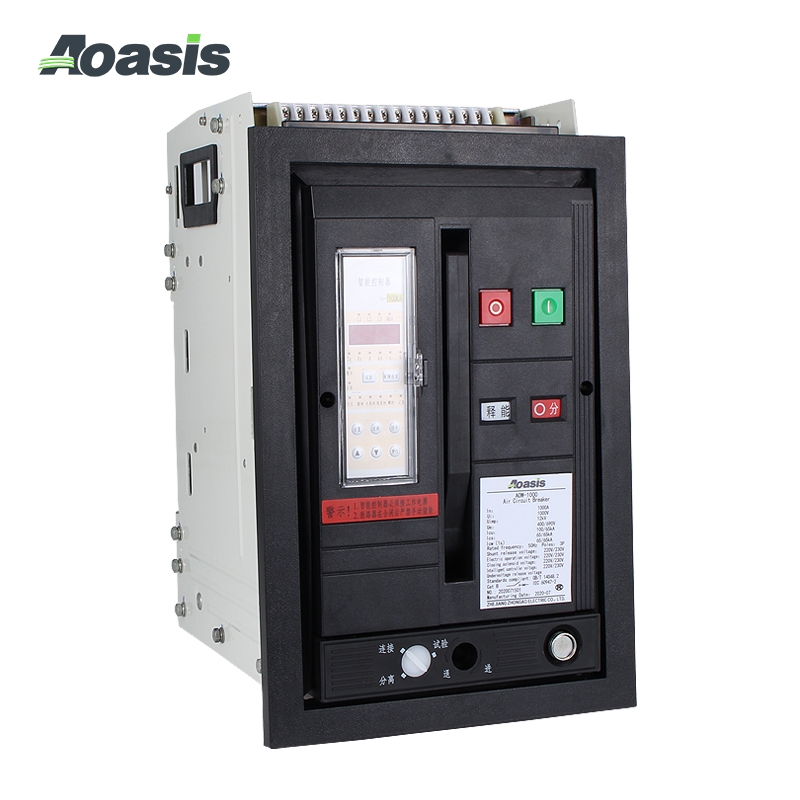

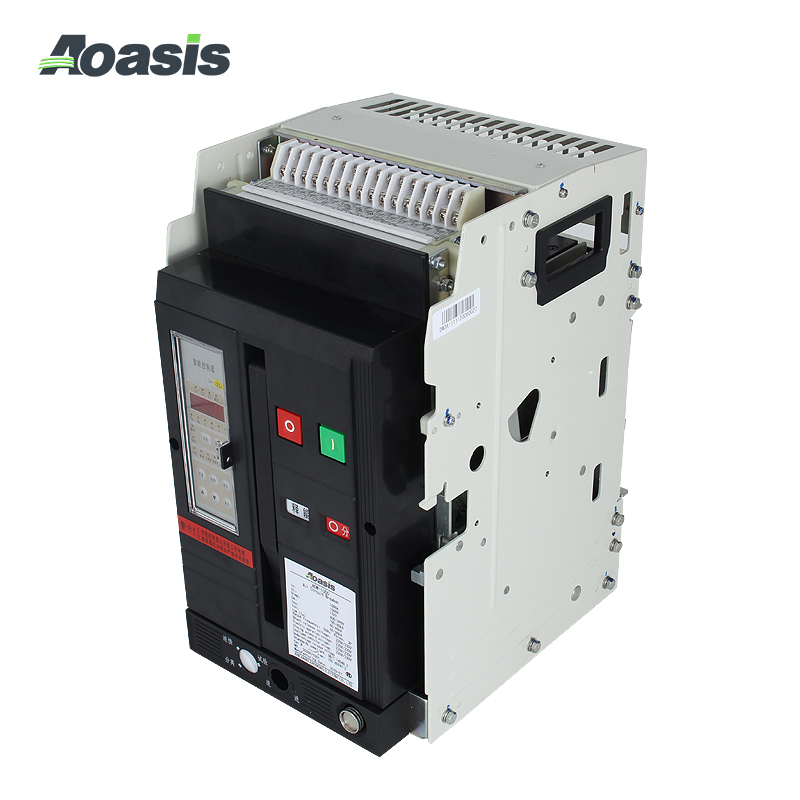

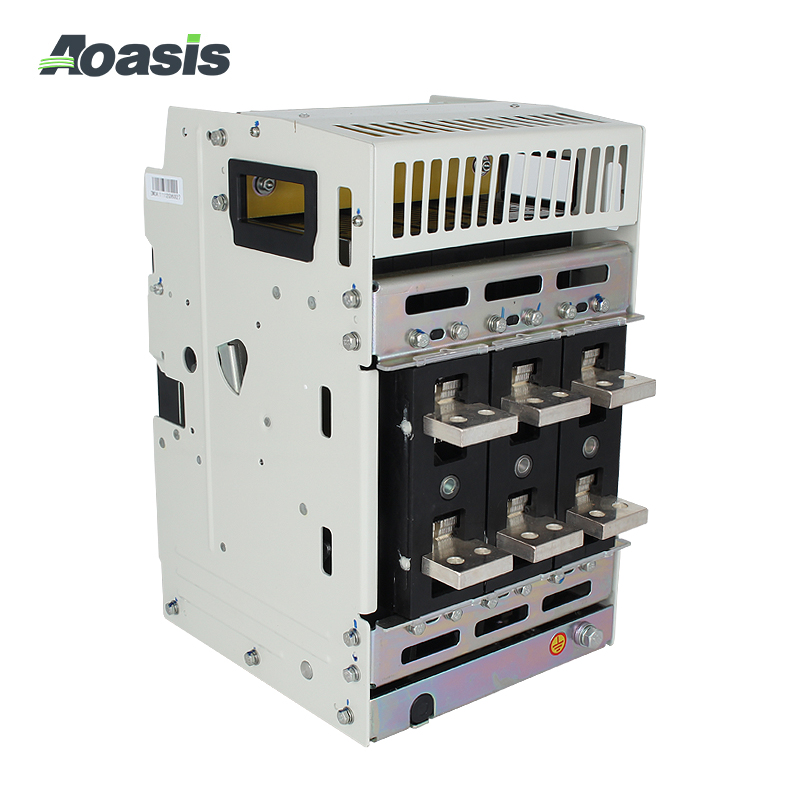

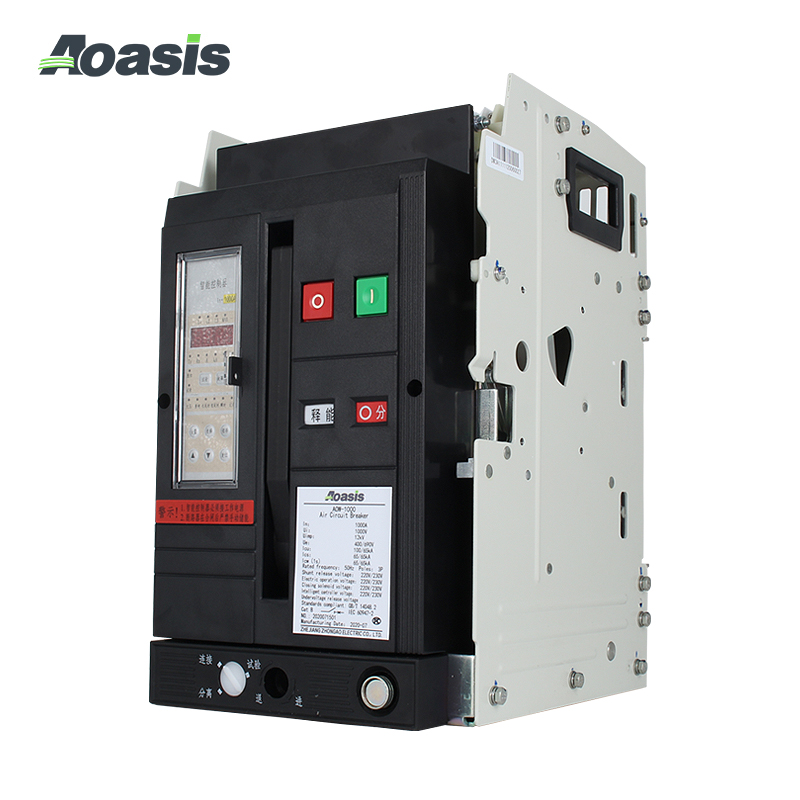

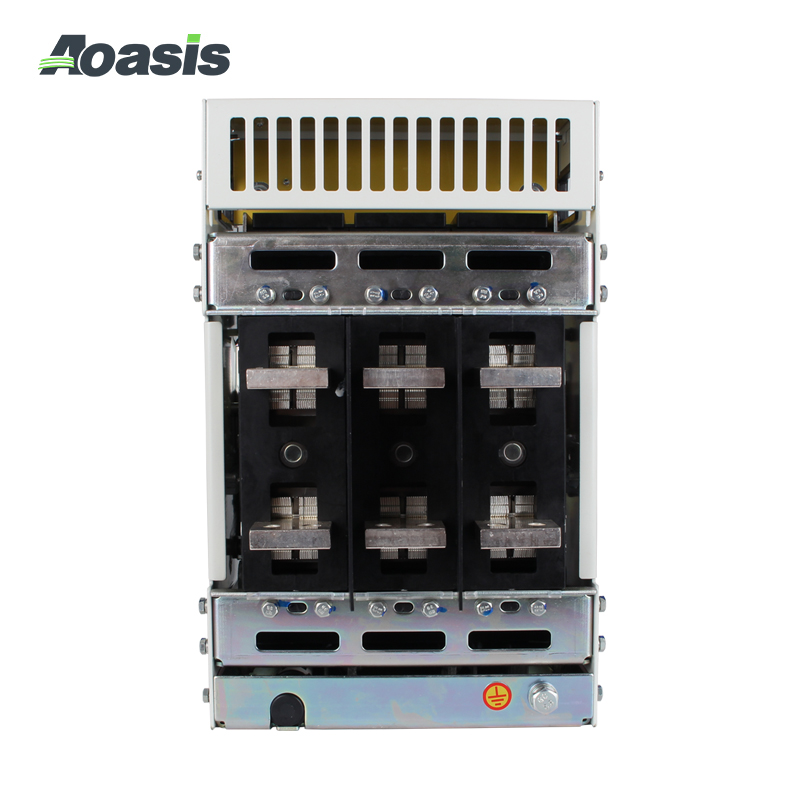

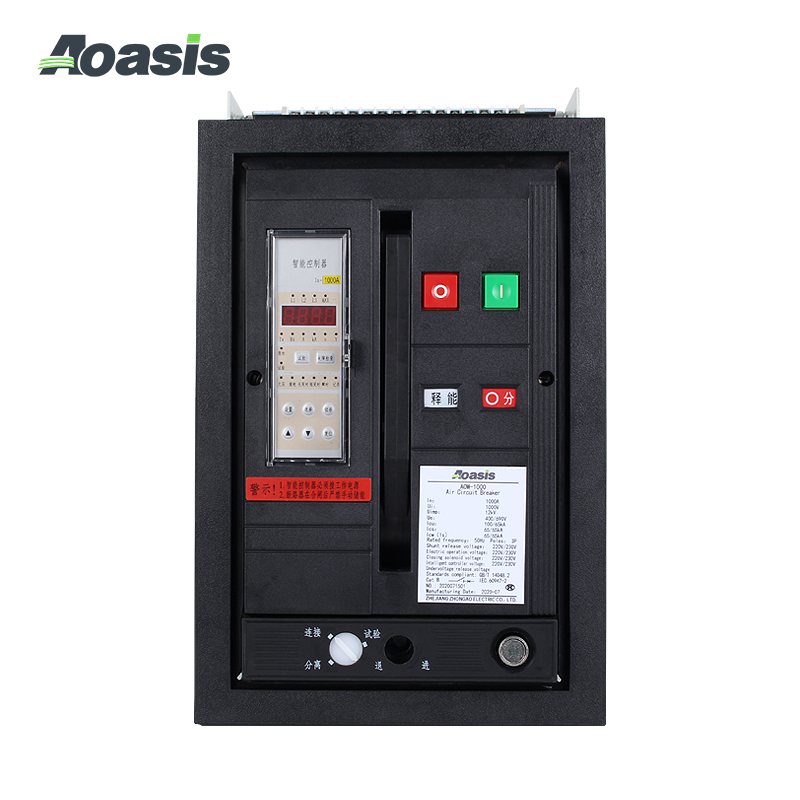

AOW-1000

ACB

Characteristics

It mainly used to distribute the power of the main distribution cabinet, protect the circuit and power supply from overloading, undervoltage and short circuit, the harm of single-phase grounding and other faults. This kinds of circuit breaker were provided with a variety of automatic protection function, can protect Cat.B optionally and improve the reliability of power supply. Under normal conditions, it can be used for infrequent conversion of circuits.

Rated Current: 1000A~6300A
Diference1:  a、drawer type  b、fixed type
Diference2:  a、 with LCD    b、without LCD

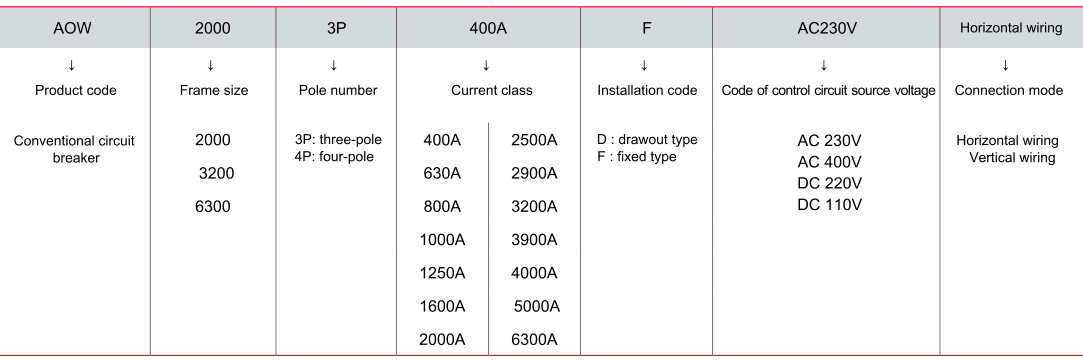

Type selection guide:

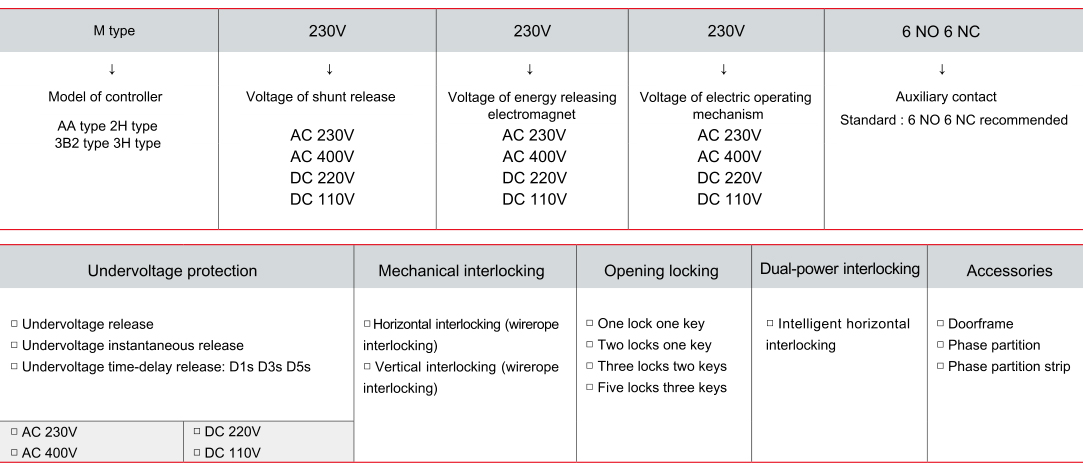

Type selection of standard parts and optional accessories:


Example for model selection:

AOW-2000/3P 400A F AC230V (fixed type 3-pole 400A voltage of control circuit (230v) default horizontal wiring, rated voltage 400v, M type controller, shunt 230v, electric operating mechanism 230V, standard 6 NO 6 NC contacts. Please specify according to the above table if need other accessories.


Main performance indexes:

Type

AOW-1000

AOW-1600

AOW-2000

AOW-2500

Frame size rated current Inm (A)

1000

1600

2000

2500

Pole

3P,4P

3P,4P

3P,4P

3P,4P

Rated current In (A)

1000


200-800,1000,
1250-1600



630-800,1000-1600,
2000


2500

Rated voltage Ue (V)

400,690

400,690

400,690

400,690

Insulation voltage Ui (V)

1000

1000

1000

1000

Impulse withstand voltage Uimp (V)

12000

12000

12000

12000

Power frequency withstand voltage U (V)

-



Ac3500 50Hz

-

Rated current of N-pole IN (A)

-



50%ln

-

Ultimate breaking capacity lcu (kA)

AC400V

100

100

80

100

AC690V

65

65

50

65

Running breaking capacity lcs (kA)

AC400V

65

65

50

65

AC690V

65

65

40

65

Short-current making capacity lcm(kA)

AC400V

-

-

176

-

AC690V

-

-

105

-

Short-time withstand current(1s)(RMS) lcw (kA)

AC400V

65

65

50

65

AC690V

65

65

40

65

Closing time(ms)

-

-

70(max)

-

Operating performance

Electrical life

Maintenance free

-

-

6500

-

-

-

3000

-

Mechanical life

Maintenance required

-

-

15000

-

-

-

30000

-

Connection mode

-

-

Horizontal,vertical

-


Overall dim.(mm)
H(height)×W(width)×L(thickness)


Fixed type 3P

-

-

402×362×323

-

Fixed type 4P

-

-

402×457×323

-

Drawout type 3P

-

-

432×375×421

-

Drawout type 4P

-

-

432×470×421

-

Note:-null
