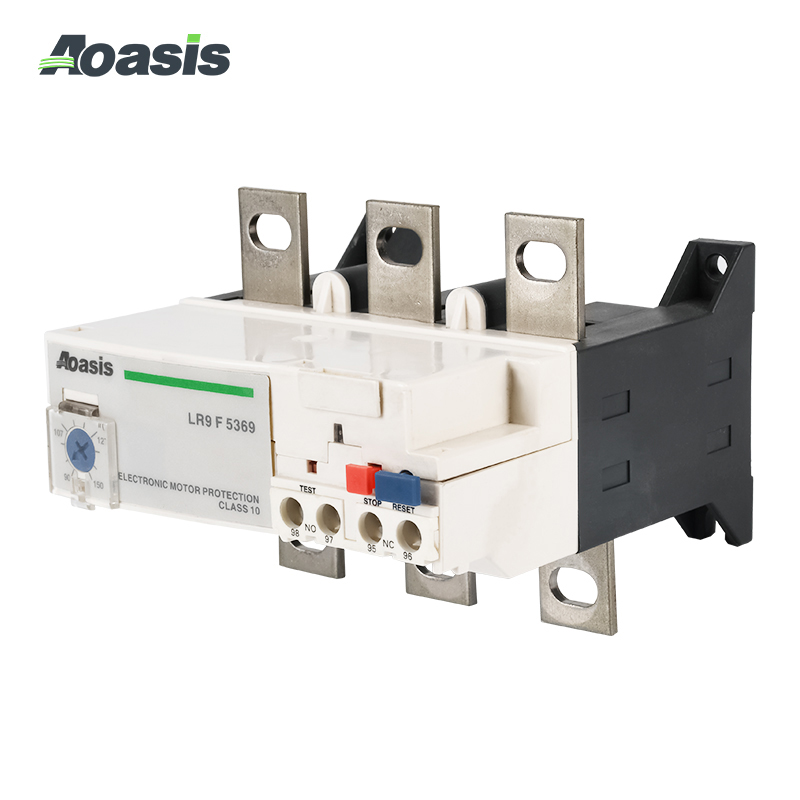

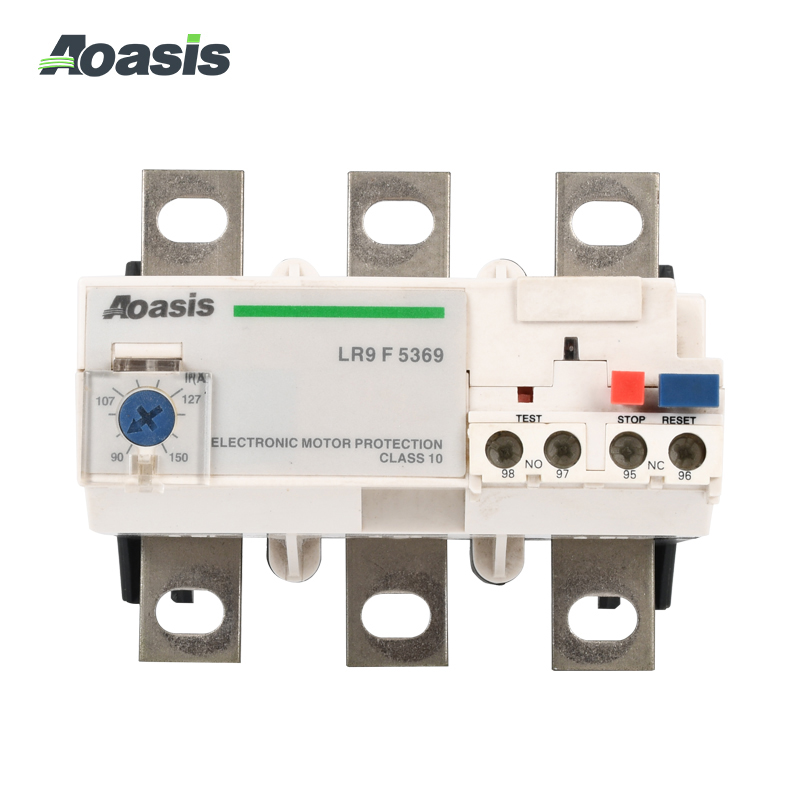

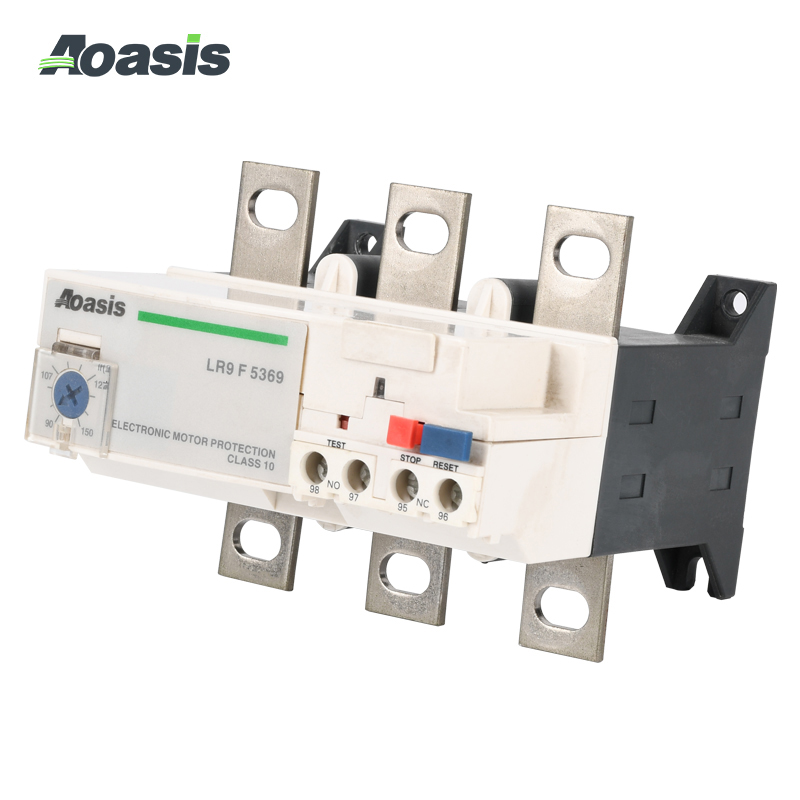

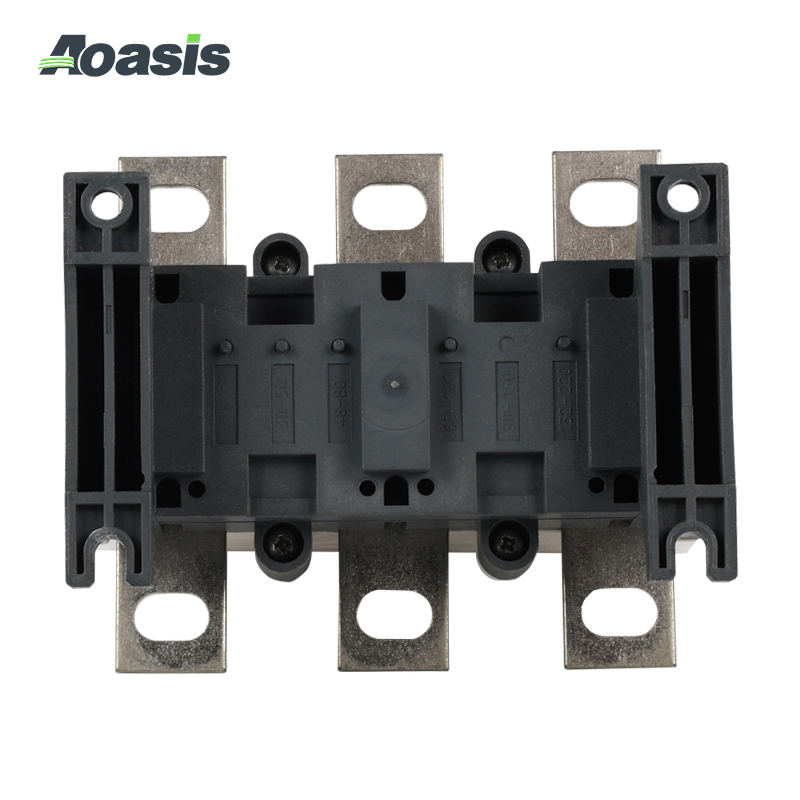

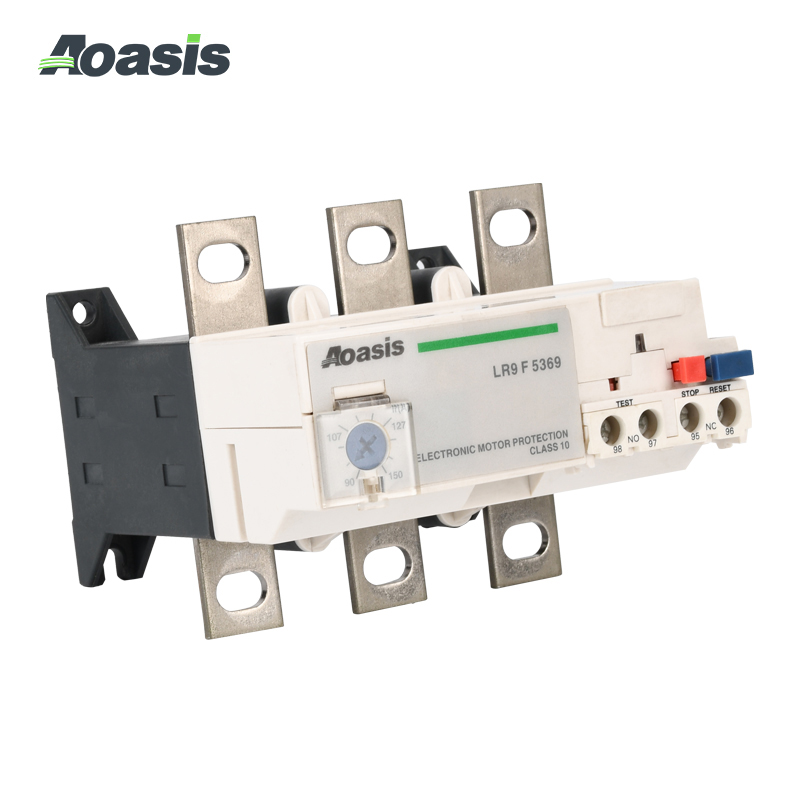

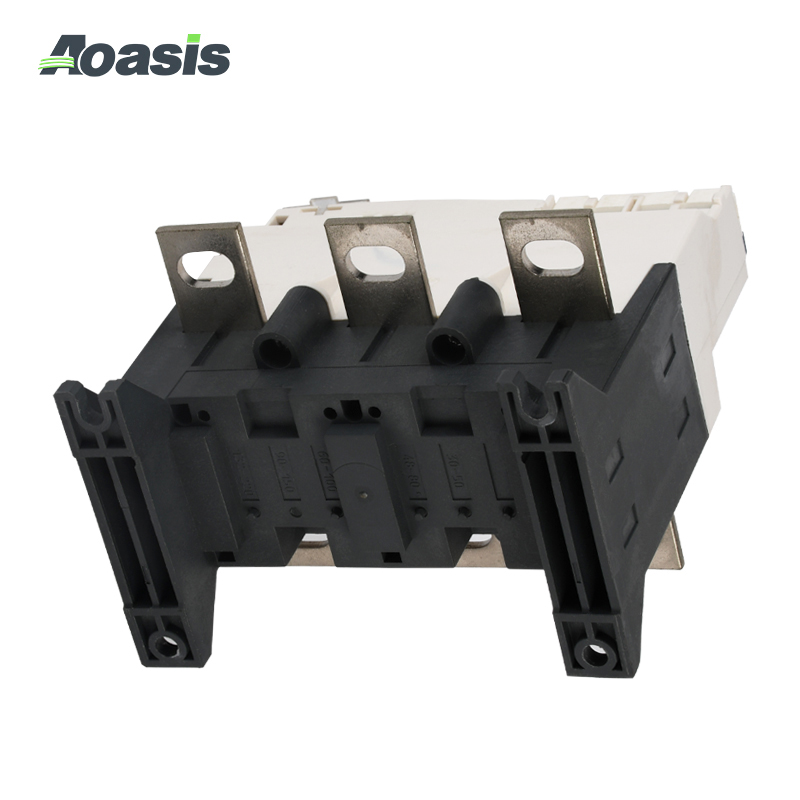

AOR9-F口Oseries thermal relay is suitable for using in the circuits rated voltage up to 660V rated current 630A AC 50Hz or 60Hz, for over-voltage protection ofAC motor. The relay has the differential mechanism and temperature compensation. It can be used with CJX2-F AC contactor, or can be used alone.
Technical Parameters:
|
Type |
Number |
Setting range(A) |
For contactor |
|
AOR9-F口O |
5357 | 30-50 | CJX2-F115-185 |
| 5363 | 40-80 |
CJX2-F115-185 |
|
| 5367 | 60-100 |
CJX2-F115-185 |
|
| 5369 | 90-150 |
CJX2-F115-185 |
|
| 5371 | 132-220 | CJX2-F225-265 | |
|
AOR9-F口O |
7375 | 200-330 |
CJX2-F225-500 |
| 7379 | 300-500 | CJX2-F225-500 | |
| 7381 | 380-630 | CJX2-F225-630 |

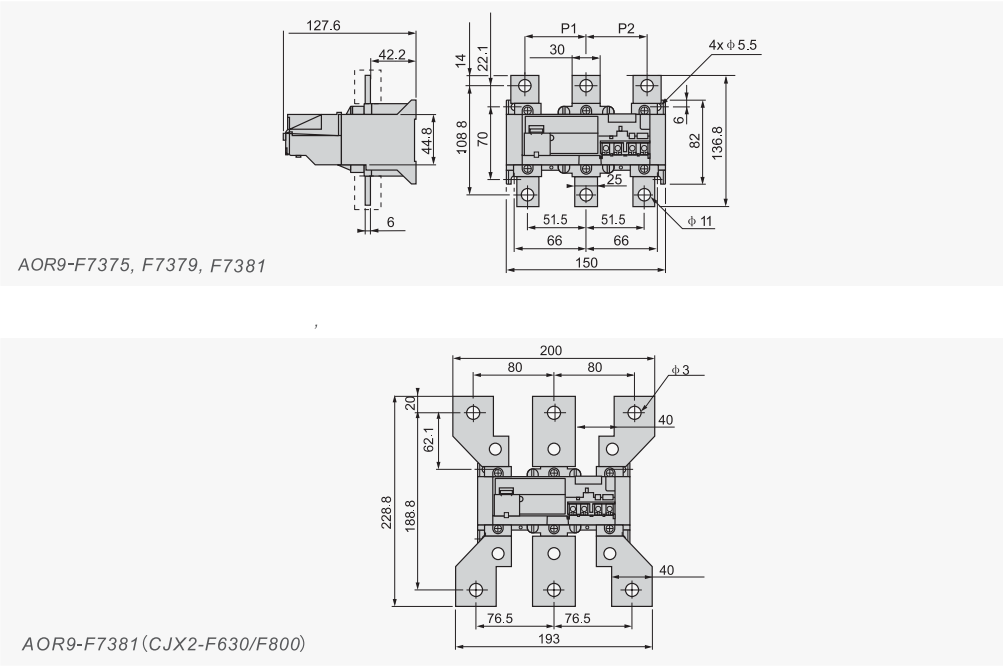

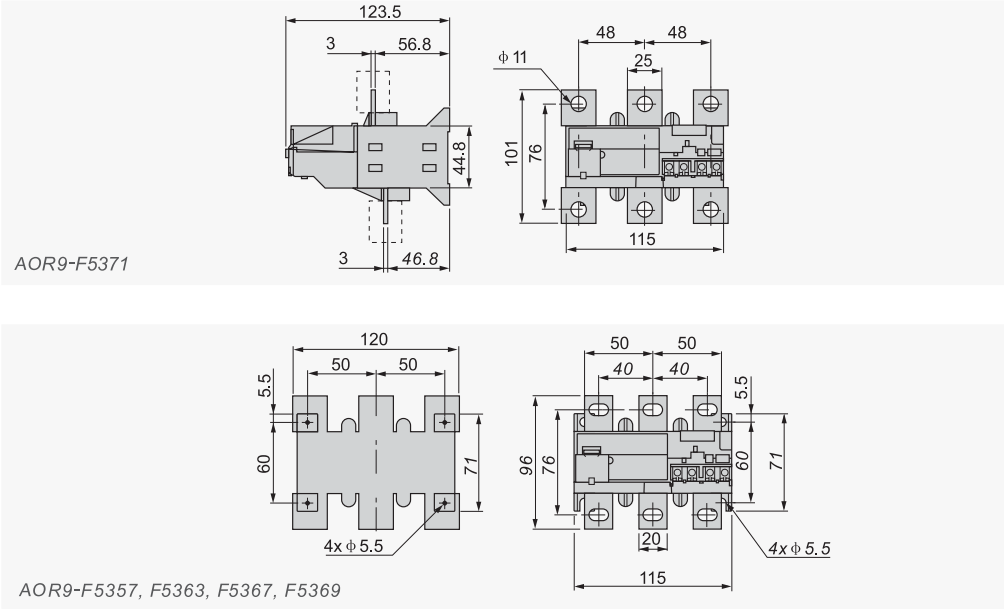

Dimensions(mm):
