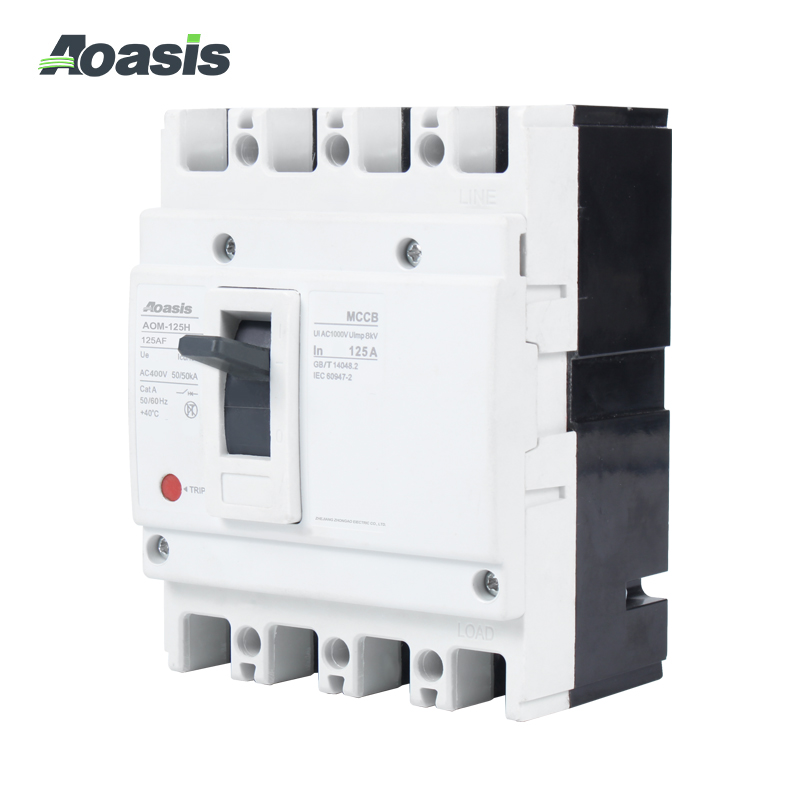

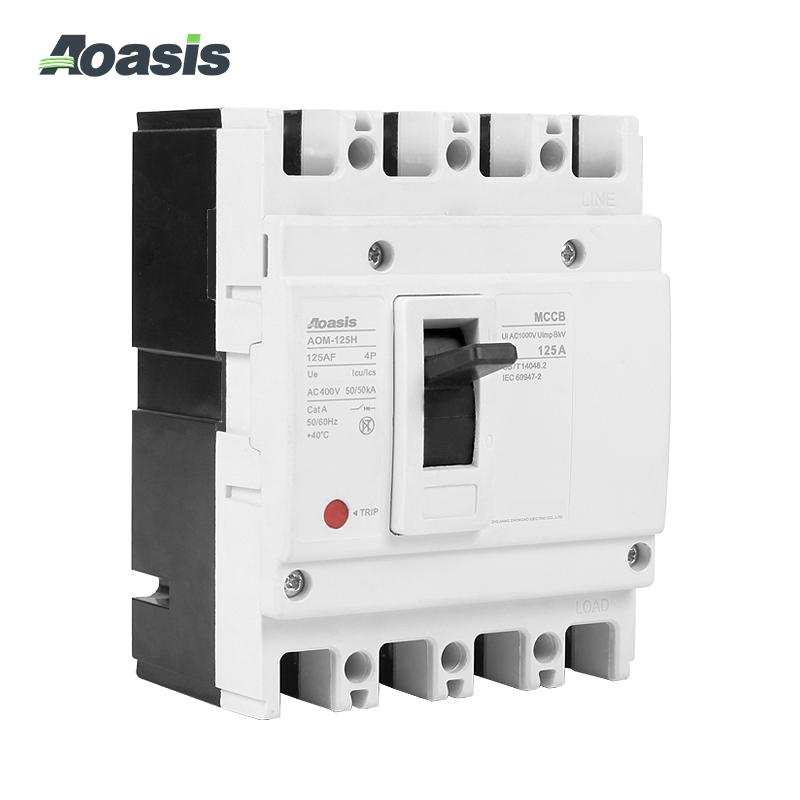

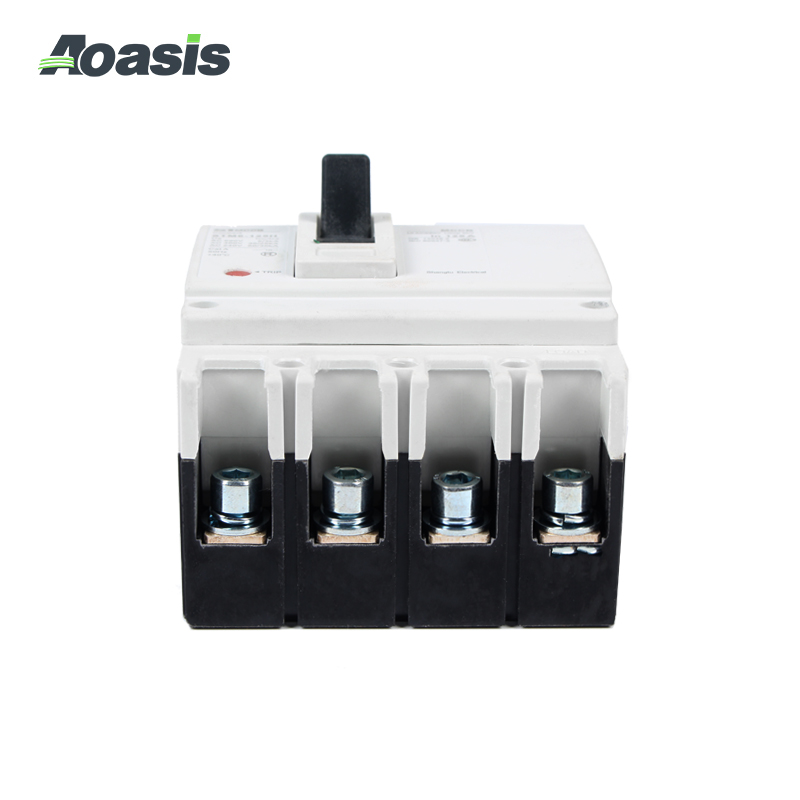

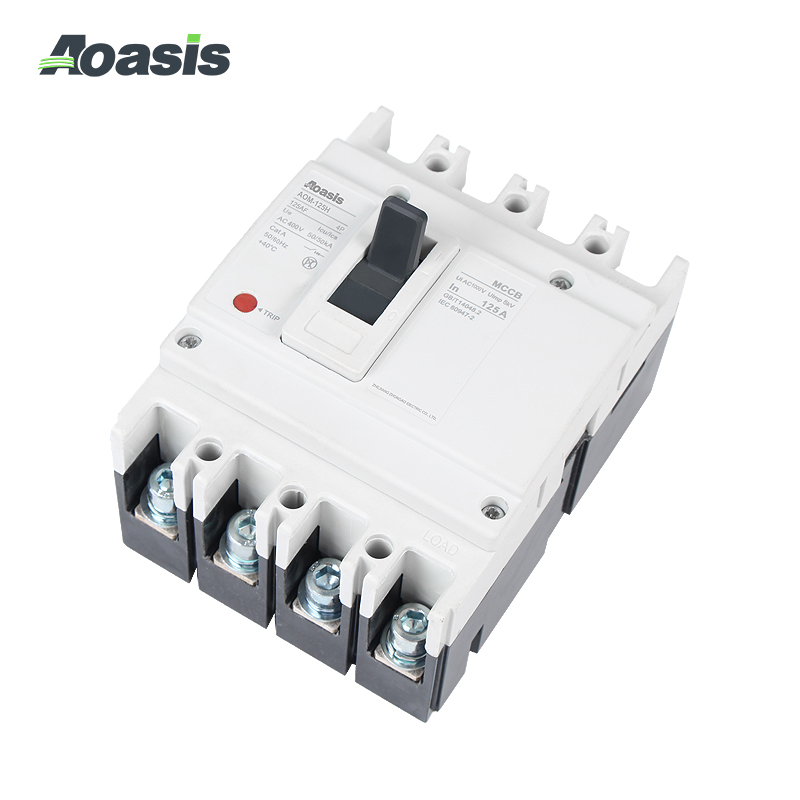

Product features：
Feature 1: U-shaped static contact

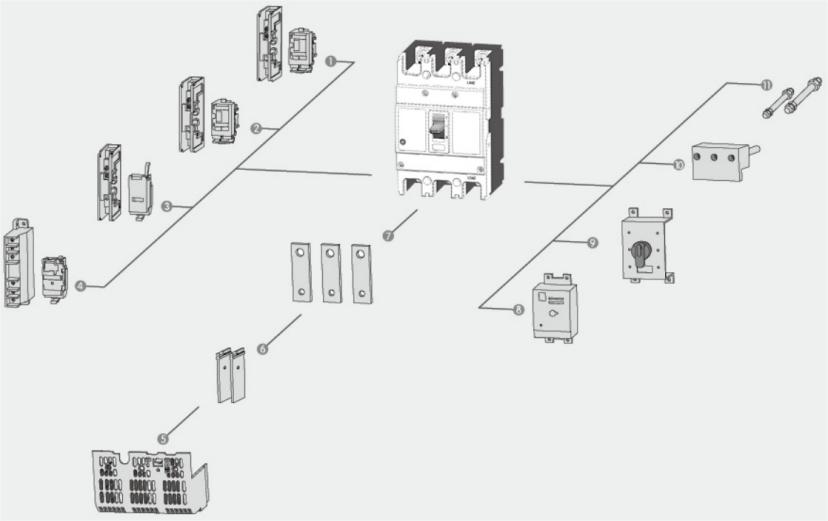

Feature 2: modularized accessories
Feature 3: miniaturized frame
Feature 4: contact repulsion device (patented technology)
Feature 5: intelligence
Feature6: modularized arc extinguishing system
Feature 7: unification
Ambient and installation conditions：
l Below 2000 meters above sea level;
l Ambient medium temperature should be within -5℃to +40℃(+45℃for marine products);
l lt can withstand the effect of damp air;
l lt can withstand the effect of moulds;
l lt can withstand the effect of nuclear radiation;
l The max inclination is 22.5 degree;
l lt still can work reliably when the ship subjects to normal vibration;
l lt can still work reliably if the product subjects to the earthquake (4g).
l Places where the surrounding medium is free from explosion danger, and far away from gas or conductive dust that would erode the metal or destroy the insulation;
l keep away from rain or snow.

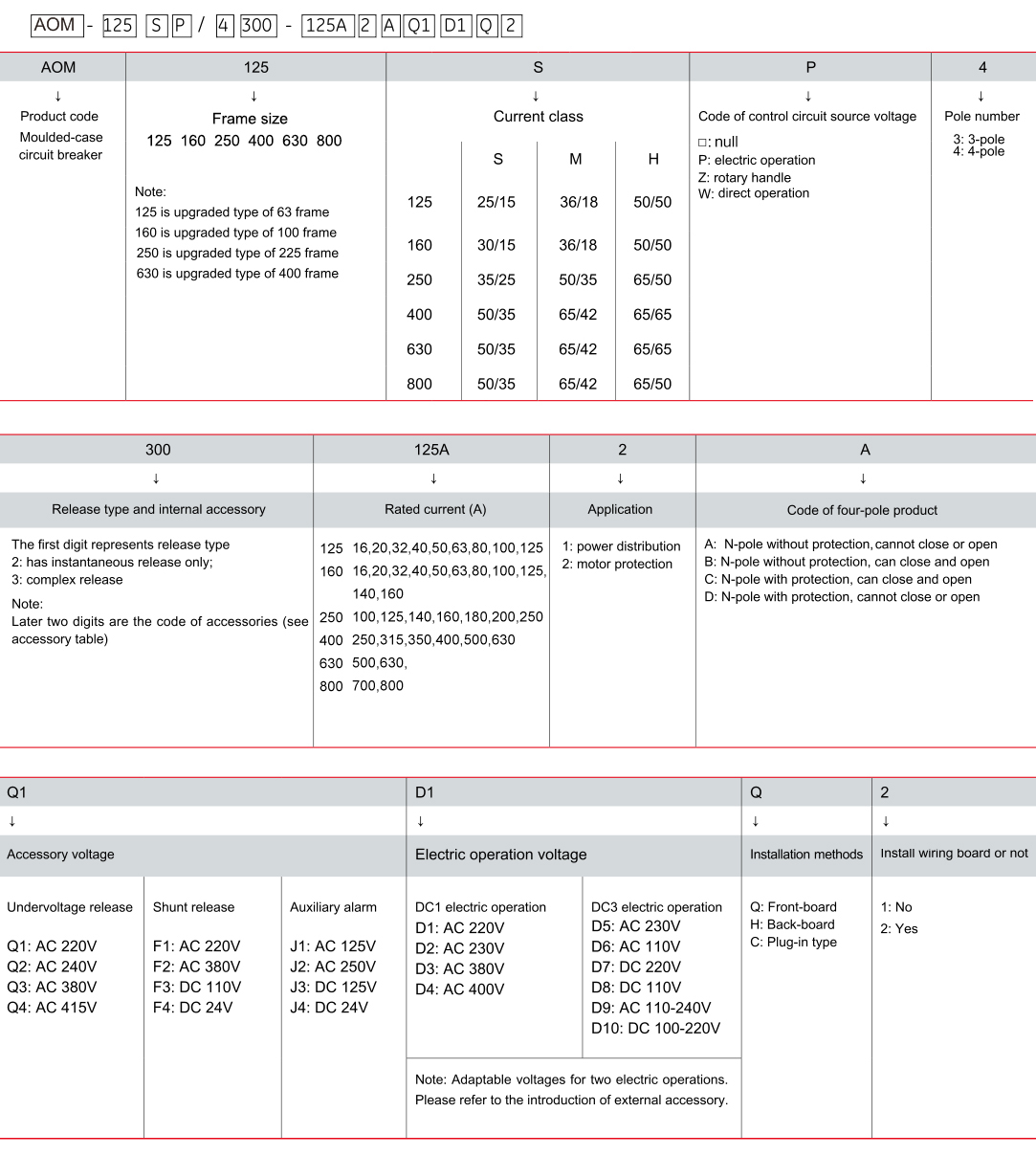

Product selection guide：
Main performance indexes：
|
Type |
AOM-125S |
AOM-125M |
AOM-125H |
AOM-160S |
AOM-160M |
AOM-160H |
||
|
Pole |
1P,2P,3P,4P |
2P,3P,4P |
||||||
|
Rated current(A) |
16,20,32,40,50,63,80,100,125 |
16,20,32,40,50,63,80,100,125,140,160 |
||||||
|
Rated voltage |
AC 400V |
AV 400V |
||||||
|
Rated insulation voltage |
AC 1000V |
AC 1000V |
||||||
|
Short-circuit breaking capacity (KA)Icu/Ics |
AC 400V |
25/15 |
36/18 |
50/50 |
30/15 |
36/18 |
2P:30/50 3P/4P:50/50 |
|
|
Operating cycle number |
ON |
6000 |
3000 |
|||||
|
OFF |
9000 |
7000 |
||||||
|
Outline dim. (mm)
a-b-c-ca
|
1P |
25-130-68-90 |
/ |
/ |
/ |
|||
|
2P |
50-130-68-90 |
60-155-68-90 |
60-155-68-90 |
60-155-88-115 |
||||
|
3P |
75-130-68-90 |
90-155-68-90 |
90-155-68-90 |
90-155-88-115 |
||||
|
4P |
100-130-68-90 |
120-155-68-90 |
120-155-68-90 |
120-155-88-115 |
||||
|
Weight (kg) |
1P |
0.25 |
0.3 |
/ |
/ |
/ |
||
|
2P |
0.5 |
0.55 |
1.0 |
1.1 |
||||
|
3P |
0.55 |
0.65 |
1.1 |
1.2 |
||||
|
4P |
0.65 |
0.8 |
1.4 |
1.5 |
||||
|
Electric operating device (MD) |
● |
● |
||||||
|
External driving operating handle |
● |
● |
||||||
|
Automatic release |
Thermal electromagnetic type |
Thermal electromagnetic type |
||||||
