Product Selection：
Technical Parameters：
Type

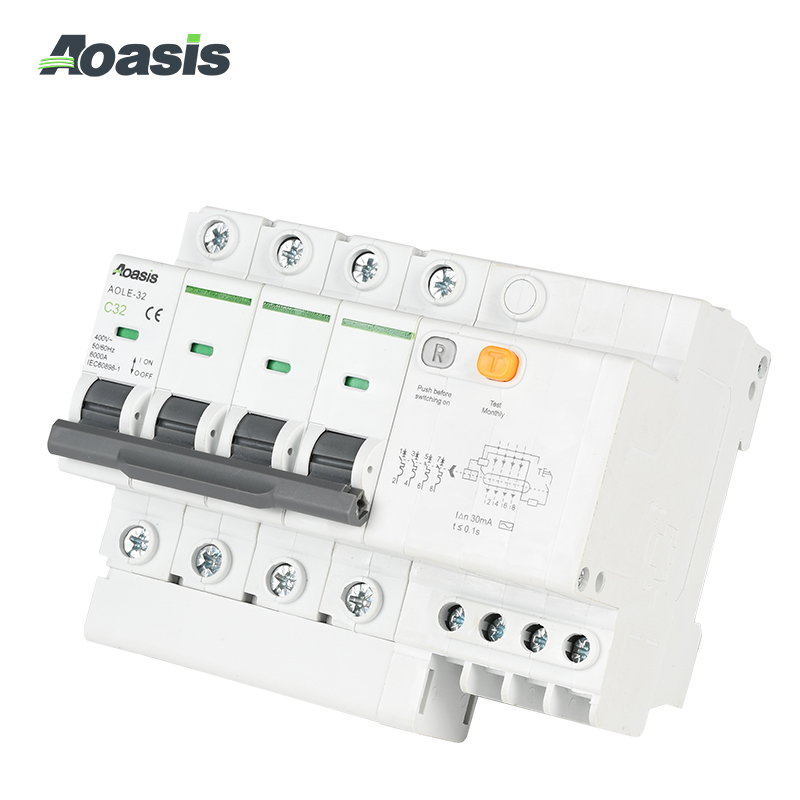

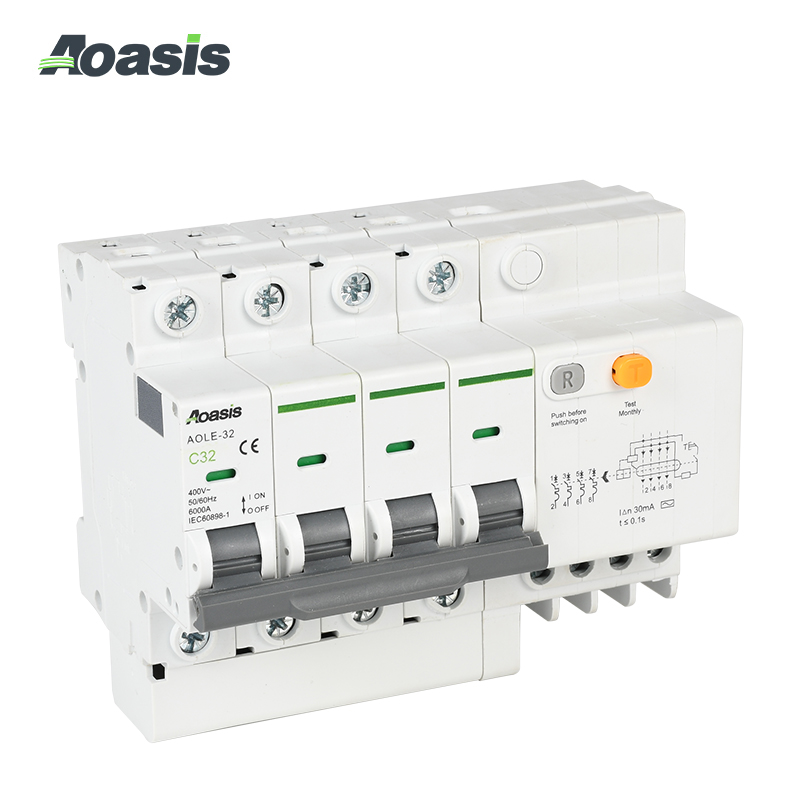

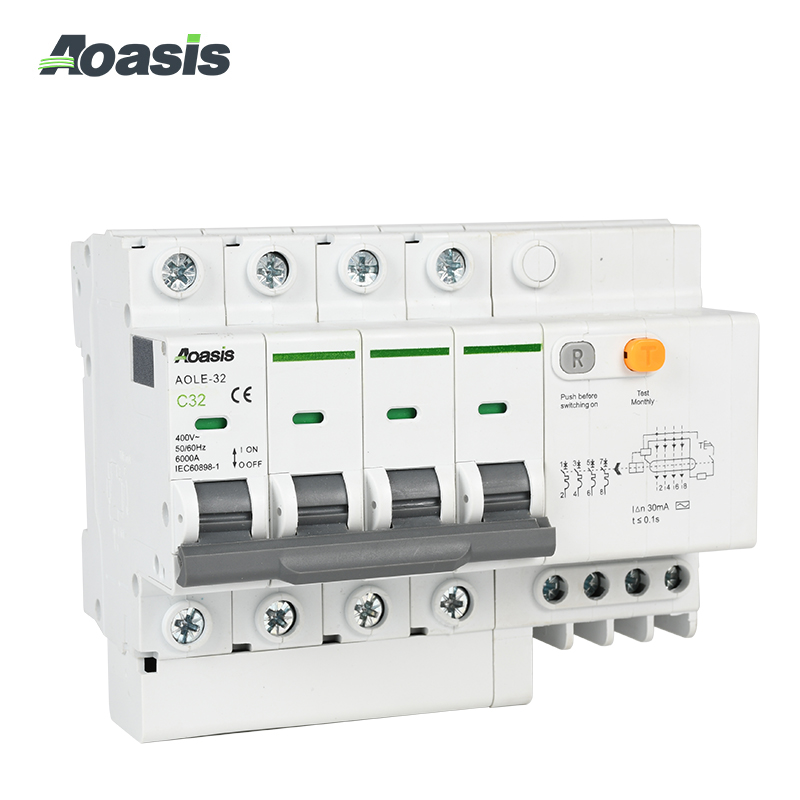

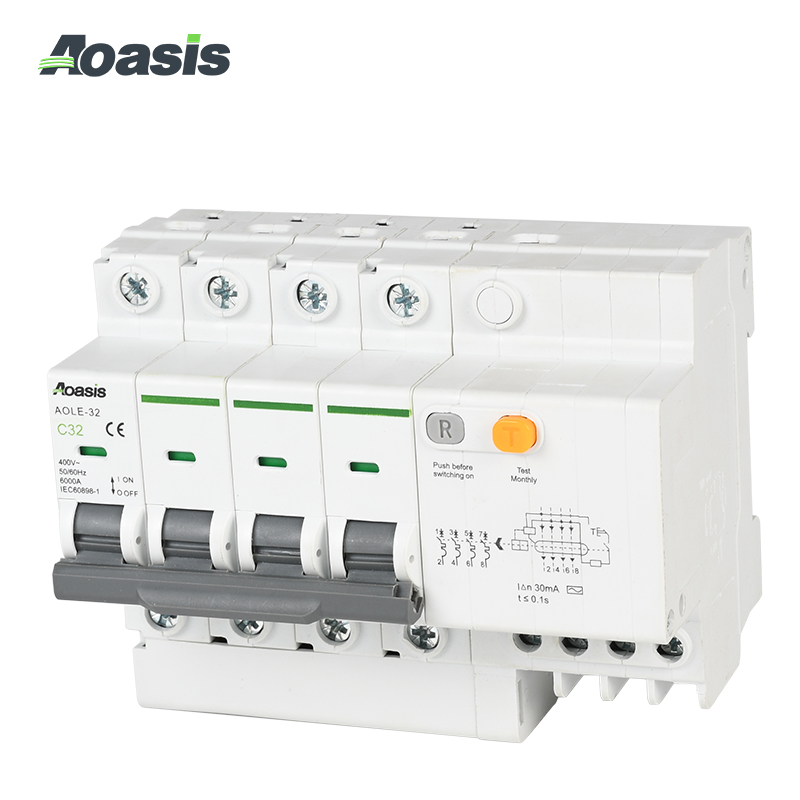

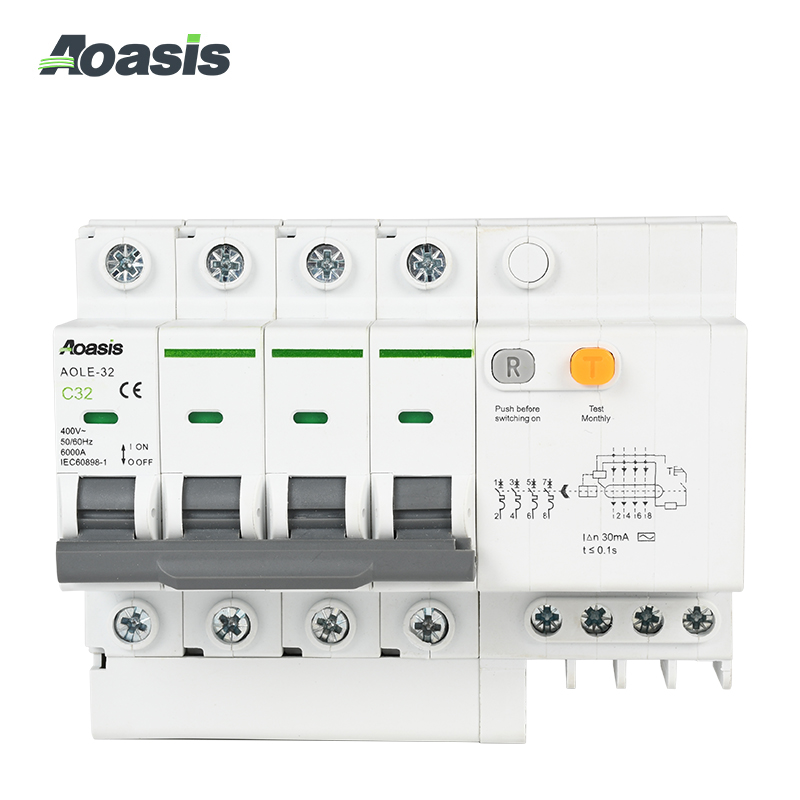

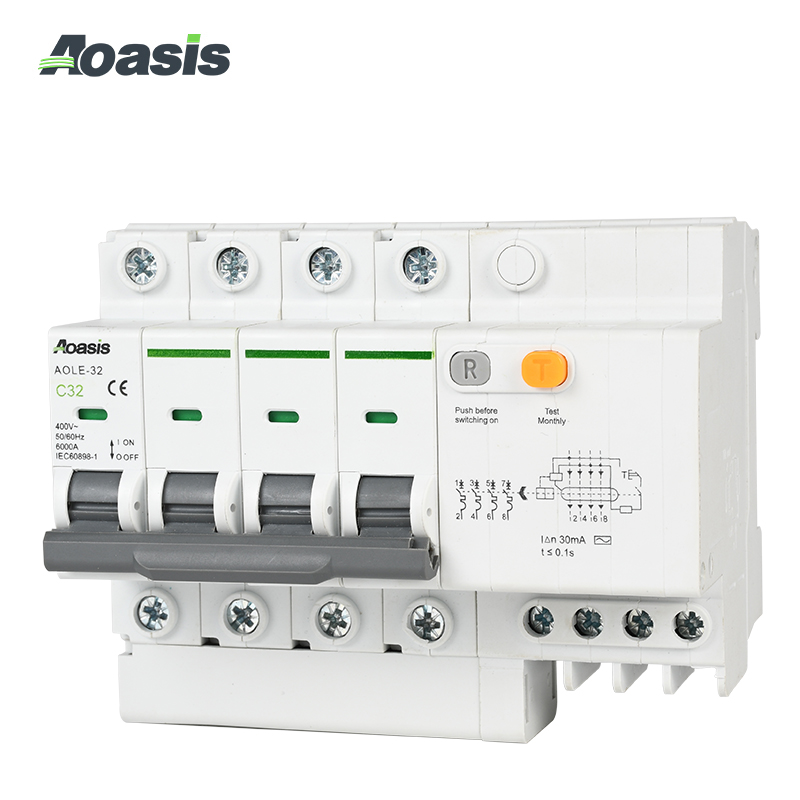

AOLE-32
AOLE-63
Standard
GB16917.1, 1IEC61009-1
Functions
Short-circuit protection、Overload protection、Leakage Protection、Isolation function
Frame current(A) lnm
32A
63A
Pole
1P+N、2P: 230V AC 3P、3P+N、4P: 400V AC
Rated current(A)
6、10、16、20、25、32
40、50、63
Rated voltage(V) Ue
1P+N、2P: 230V AC 3P、3P+N、4P: 400V AC
Rated insulated voltage(V)
250V（relatively）/500V（relative phase）
Rated impulse withstand voltage(kV) Uimp
4
Rated residual working current(mA)
30、100、300
Residual current characteristics
AC Type
Rated short-circuit breaking capacity lcn
4. 5kA、6kA
Rated ultimate short-circuit breaking capacity lcu
4. 5kA、6kA
Rated operating short-circuit breaking capacity lcs
4. 5kA、6kA
Trip curve
B(3In~5In)
C(5In~10In)
D(10In~14In)
Release Form
Thermomagnetic release
Electrical life
10000
Mechanical life
20000
Pollution grade
2
Protection level
IP20
Temperature
-35℃~+70℃
Altitude
Do not exceed 2000m
Wiring terminal
Screw crimping
Max. connection capacity(mm2)
6-32A: 16mm2
40-63A: 25mm2
Max. ultimate torque (Nm)
6-32A: 2N.m
40-63A: 2.5 N.m
Installation category
II、III
Installation method
TH35-7.5、TH37-7.5 type DIN
Incoming wiring method
Install the wire at the top
