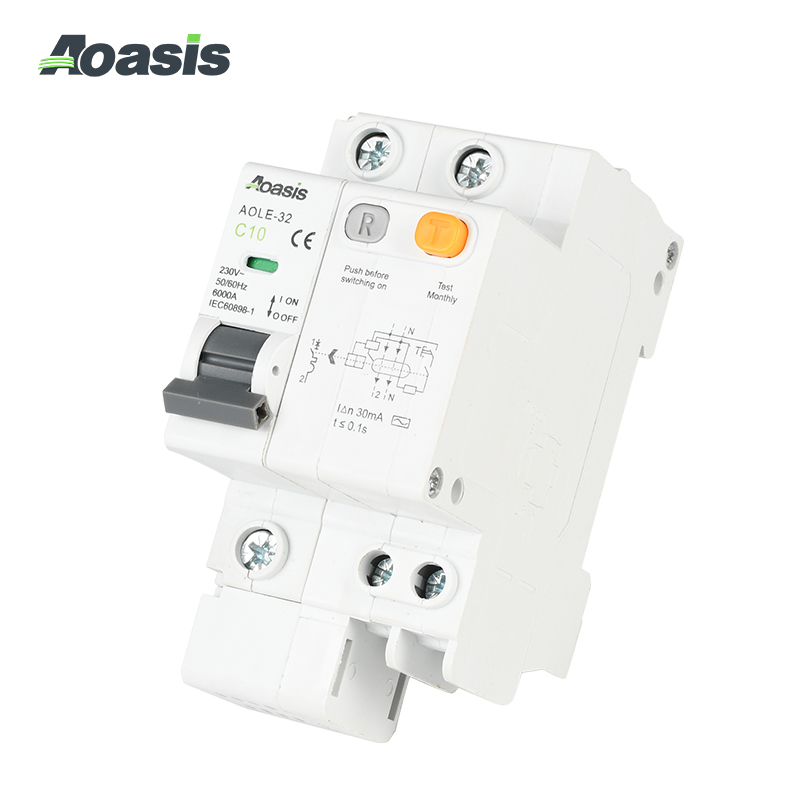

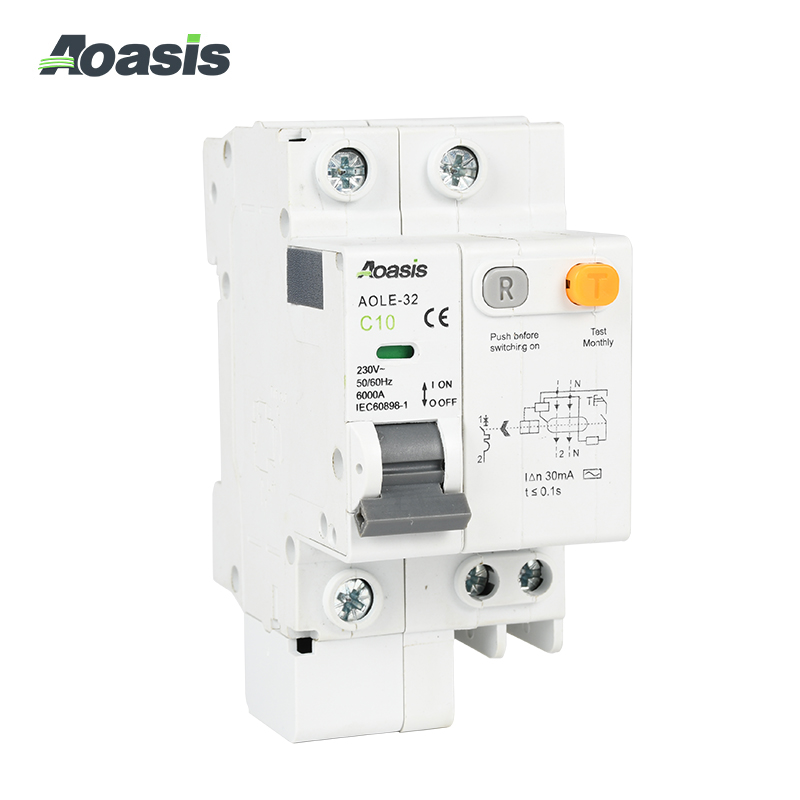

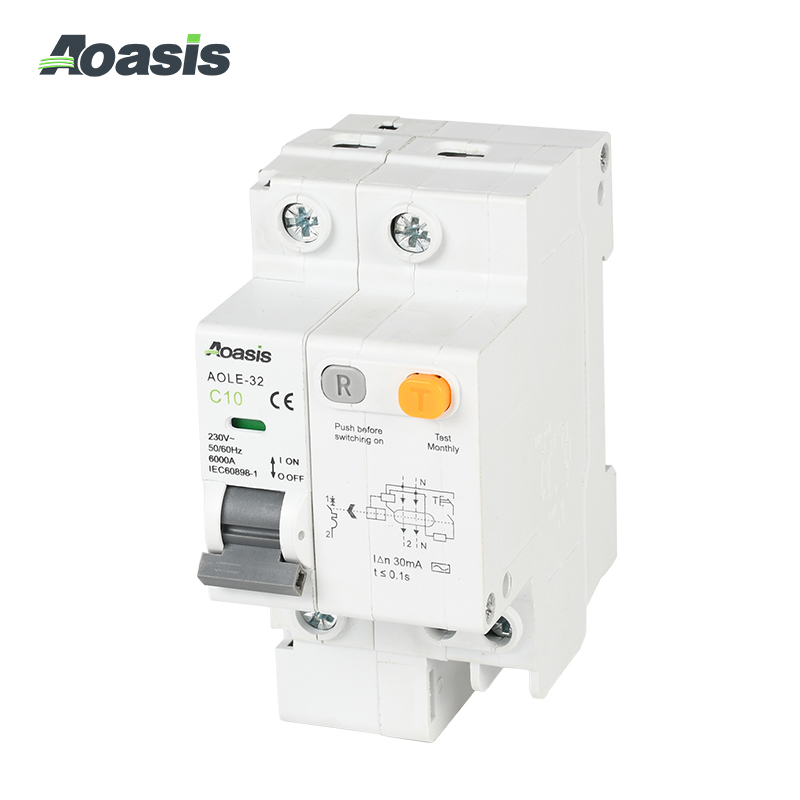

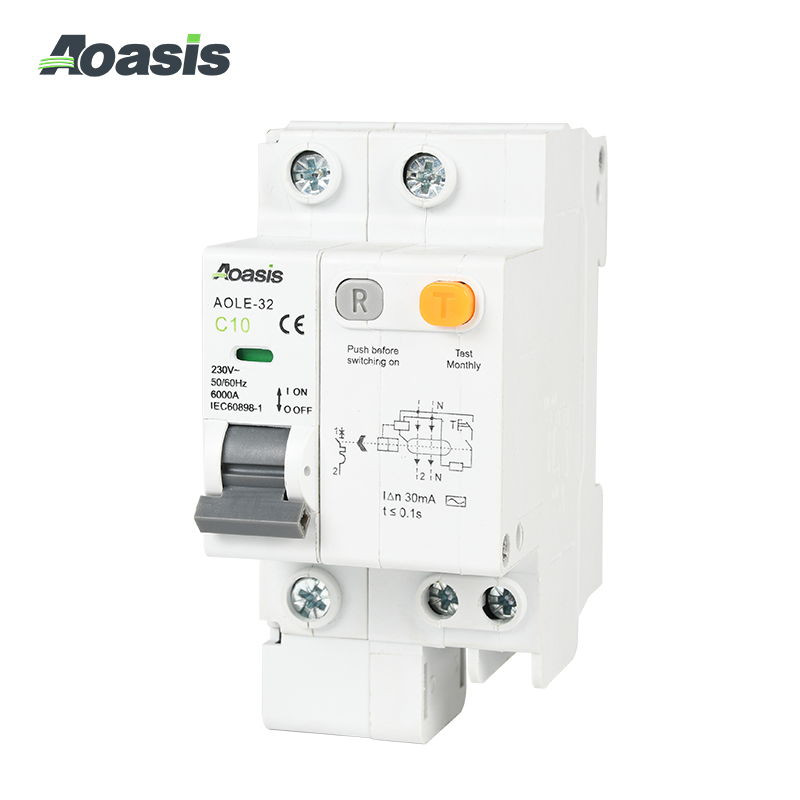

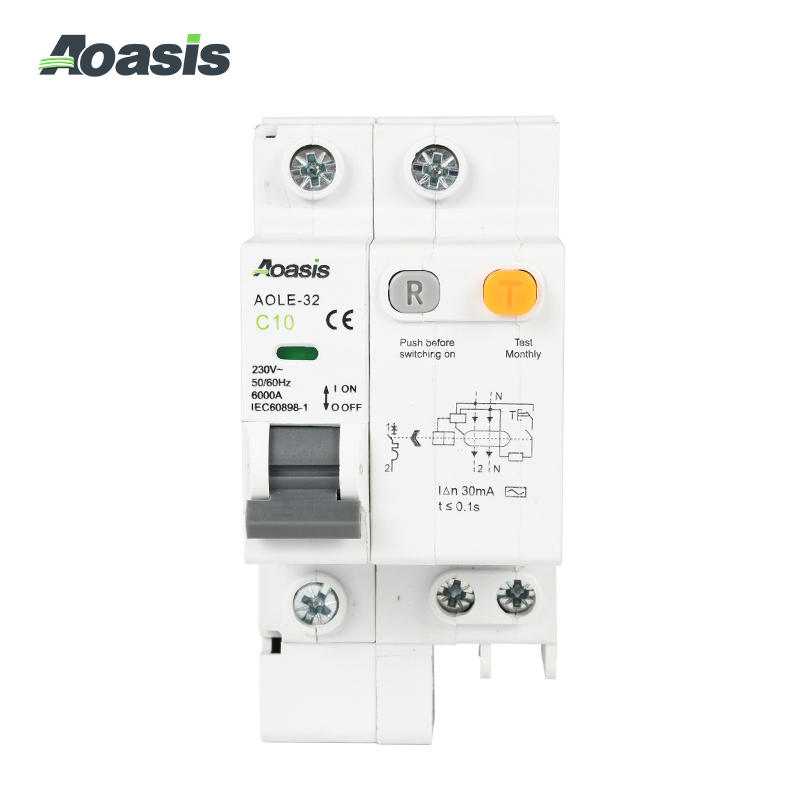

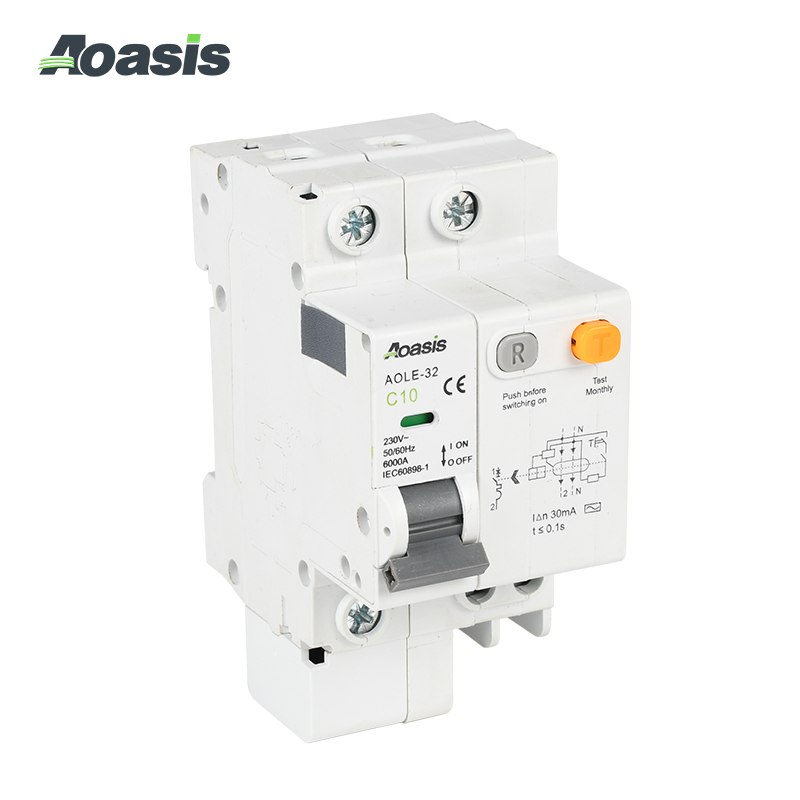

AOLE-32 1P+N Residual Current Circuit Breaker (RCCB)

AOLE Residual Current Circuit Breaker (RCCB)

Characteristics

AOLE series residual currentaction circuit breaker is suitable for use in line AC 50Hz/60Hz, rated current up to 63A. Here's how the AOLE series works. When a person is electrocuted or the leakage current of the grid exceeds the specified value, the circuit breaker with the remaining current can quickly cut off the faulty power supply in a very short time, in order to protect the safety of the person and electrical equipment. It can also be used for overload and short circuit protection of lines, and normally can also be used to infrequently switch on and off electrical equipment and lighting lines.AOLE series is suitable for industrial and commerciallighting distribution systems.

Product Selection:


Technical Parameters:

Type
AOLE-32
AOLE-63
Standard
GB16917.1, 1IEC61009-1
Functions
Short-circuit protection、Overload protection、Leakage Protection、Isolation function
Frame current(A) lnm
32A 63A
Pole 1P+N、2P: 230V AC  3P、3P+N、4P: 400V AC
Rated current(A)
6、10、16、20、25、32
40、50、63
Rated voltage(V) Ue
1P+N、2P230V AC  3P、3P+N、4P: 400V AC
Rated insulated voltage(V)
250V(relatively)/500V(relative phase
Rated impulse withstand voltage(kV) Uimp
4
Rated residual working current(mA)
30、100、300
Residual current characteristics
AC Type
Rated short-circuit breaking capacity lcn
4. 5kA、6kA
Rated ultimate short-circuit breaking capacity lcu
4. 5kA、6kA
Rated operating short-circuit breaking capacity lcs
4. 5kA、6kA
Trip curve
B(3In~5In)
C(5In~10In)
D(10In~14In)
Release Form
Thermomagnetic release
Electrical life
10000
Mechanical life
20000
Pollution grade
2
Protection level
IP20
Temperature
-35℃~+70℃
Altitude
Do not exceed 2000m
Wiring terminal
Screw crimping
Max. connection capacity(mm2)
6-32A: 16mm2
40-63A: 25mm2
Max. ultimate torque (Nm)
6-32A: 2N.m
40-63A: 2.5 N.m
Installation category
II、III
Installation method
TH35-7.5、TH37-7.5 type DIN
Incoming wiring method
Install the wire at the top

Outline Overall and Installation Dimensions (mm)
