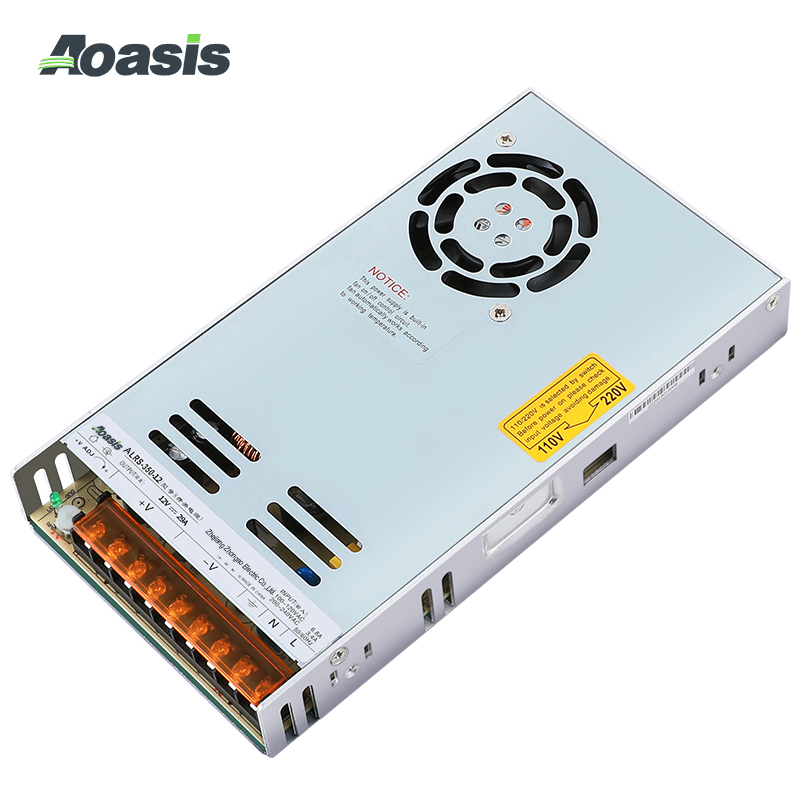

| Product model | ALRS-200 | ALRS-350 | |
| Meet a criterion | TUVEN60950，EN61558-1/-2-16，UL60950-1，GB4943 | ||
| Output | DC voltage (V) |
5V、12V、24V、36V、48V |
5V、12V、24V、36V、48V |
| Rated current (A) | 40A、17A、8.8A、5.9A、4.4A | 60A、29A、14.6A、9.7A、7.3A | |
| Rated power (W) | 200W、204W、211.2W、212.4W、211.2W | 300W、348W、350.4W、349.2W、350.4W | |
| Ripple swept noise | 150mVp-p、150mVp-p、150mVp-p、200mVp-p、200mVp-p | ||
|
Voltage regulationrange |
±10% | ||
| Voltage accuracy | 5V ±3.0% 12V ±1.5% 24~48V ±1.0% | ||
| Linear adjustment rate | 5~48V ±0.5% | ||
| Load regulation | 5V ±2.0% 12V±1.0% 24~48V ±0.5% | ||
| Start, rise time | 1500ms、50ms/230VAC 1500ms、50ms/115VAC | ||
| Hold time | 16ms/230VAC 12ms/115VAC | ||
| Input | Voltage range/frequency | 90-132VAC/180-264VDC/240-370VDC 47Hz~63Hz | |
| Efficiency (typical) | 87%、87.5%、89.5%、89.5%、90% | 83.5%、 85%、88%、88.5%、 89% | |
| Working current | 4A/115VAC 2.2A/230VAC | 6.8A/115VAC 3.4A/230VAC | |
| Surge current |
60A/115VAC 60A/230VAC |
||
| Leak current | <2mA 240VAC | ||
| Protect | Overload protection | ≥110%-130% | |
| Overvoltage protection |
≥115%-145% |
||
| Environment | Operating temperature and humidity | -25℃~+70℃; 20%~90RH | |
| Storage temperature and humidity | -40℃~+85℃; 10%~95RH | ||
| Safety standard | Withstand voltage |
Input-output:3KVAC Input-output(enclosure):2KVAC/0.5KVAC |
|
| Insulation resistance | Input-output(enclosure):500VDC/100MΩ 25°C 70%RH | ||
|
Other |
Size(mm) | 215*115*30mm(L*W*H) | |
| Net weight/Gross weight | 660g/727g | 760g/823g | |
