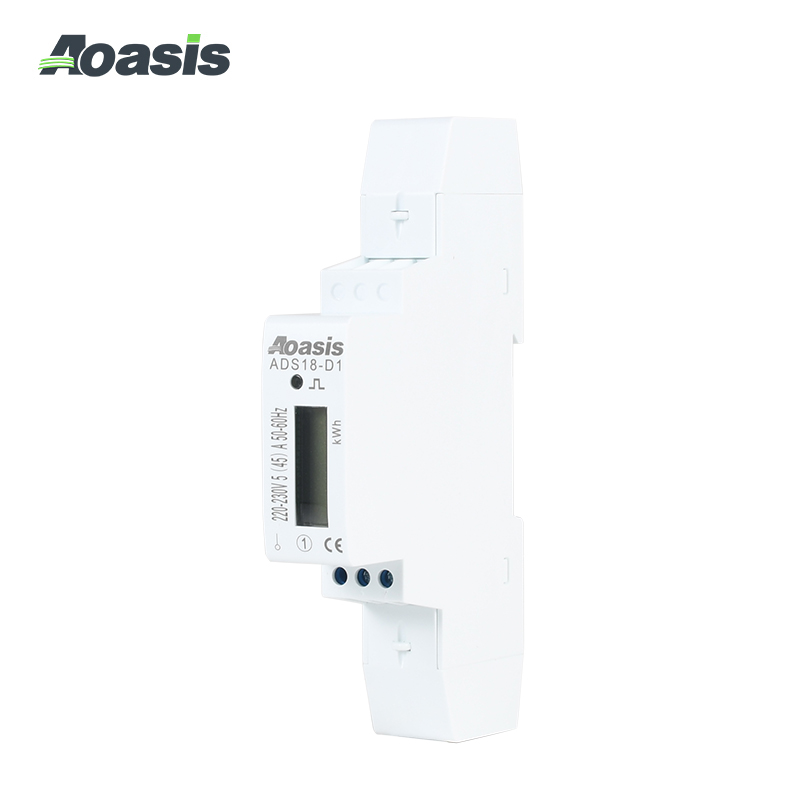

The meter is designed to measure single-phase, two-wire AC active energy in residential, utility and industrial applications. It is a long-life instrument with high stability, high overload capacity, low power consumption, small size and other advantages.

Inquiry

Product Details

Basic Function

· Mechanical step register 5+1 or LCD display 6+1

· Bi-directional total active energy measurement, reverse active energy measure in the total active energy

· For LCD display type meter, Energy data can store in memory chip more than 15 years after power off

· Pulse LED indicates working of meter, Passive pulse output with optical coupling isolation 35mm din rail installation

· LCD display with backlight (optional function)

Technical Data:

Rate voltage AC	110V,120V,220V,230,240V(0.8~1.2Un)
Rate Current /Frequency	5(32)A,5(40)A,5(45)A/50Hz or 60Hz±10%
Connection mode	Direct type	Accuracy class	1%or 0.5%
Power consumption	<1W/10VA	Start current	0.004Ib
AC voltage withstand	4000V/25mA for 60s	Over current withstand	30\|max for 0.01s
IP grade	IP20	Executive standard	IEC62053-21 DIN 43880
Work temperature	-25 ℃ ~70 ℃	Pulse output	Passive pulse,80±5 ms

Wire connection:

Outline dimension:
