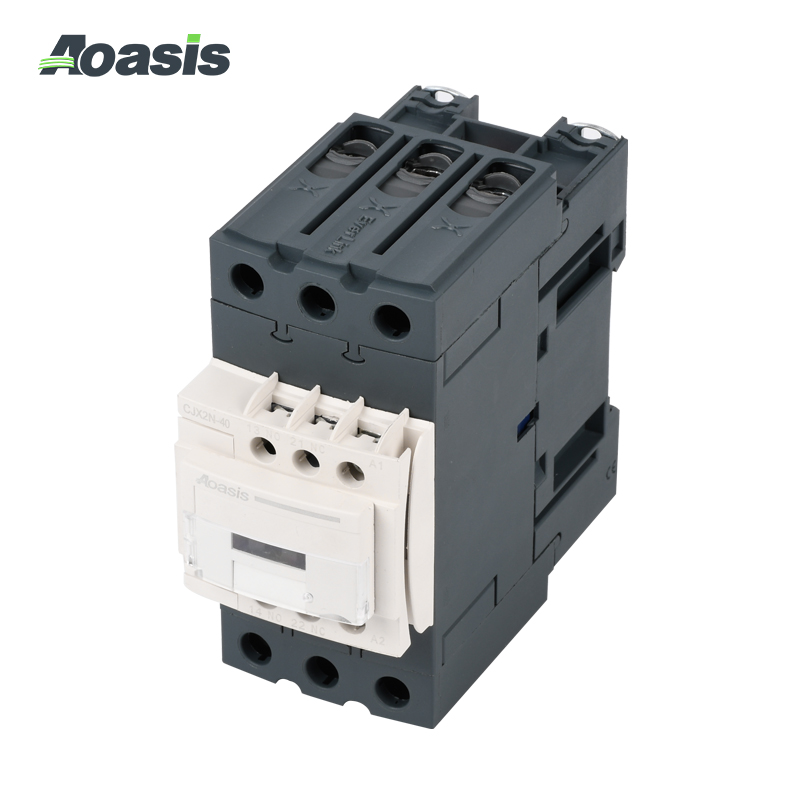

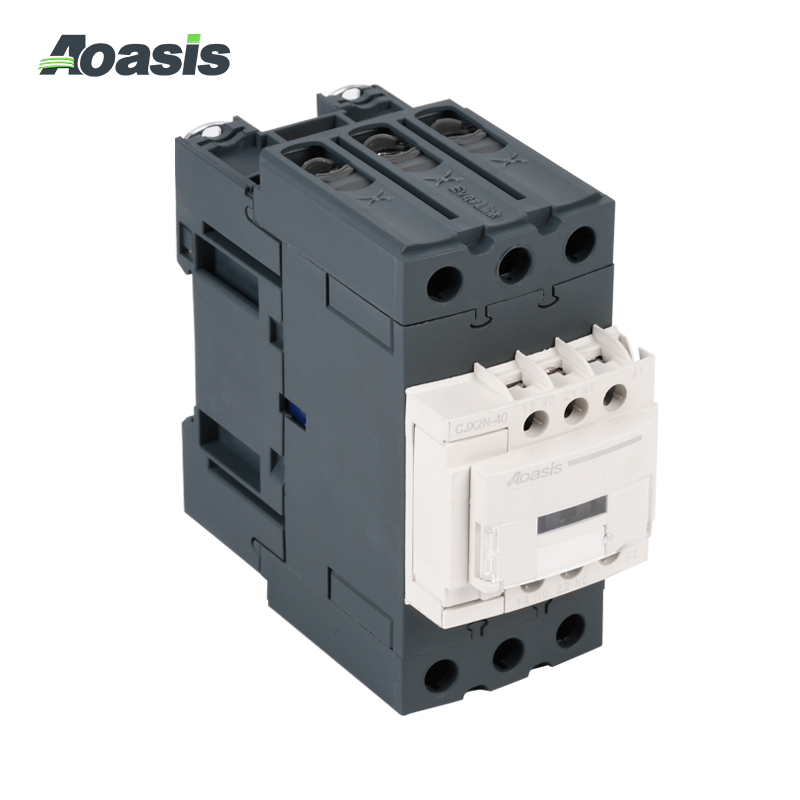

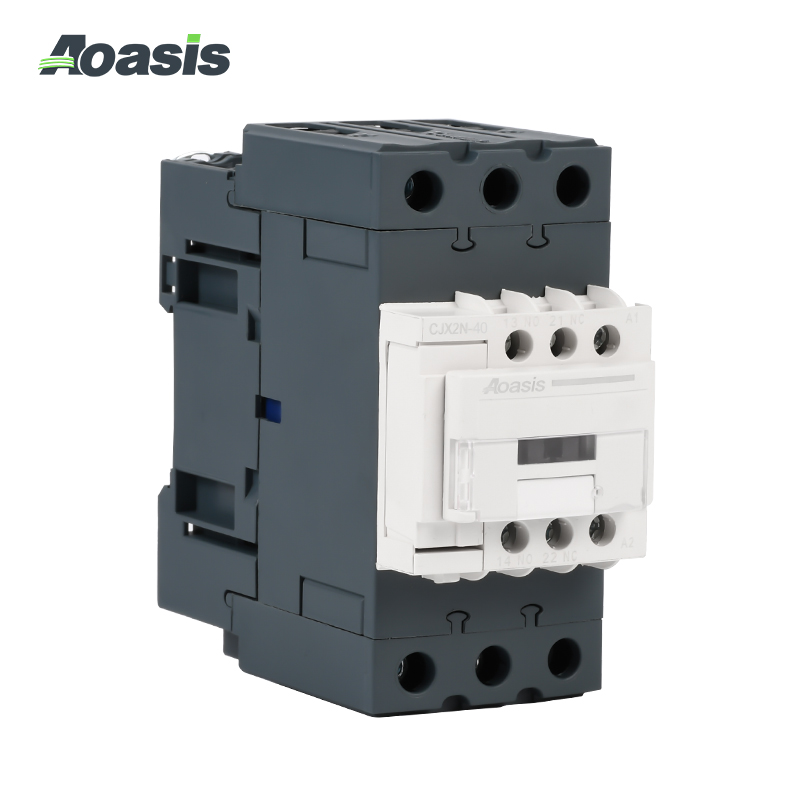

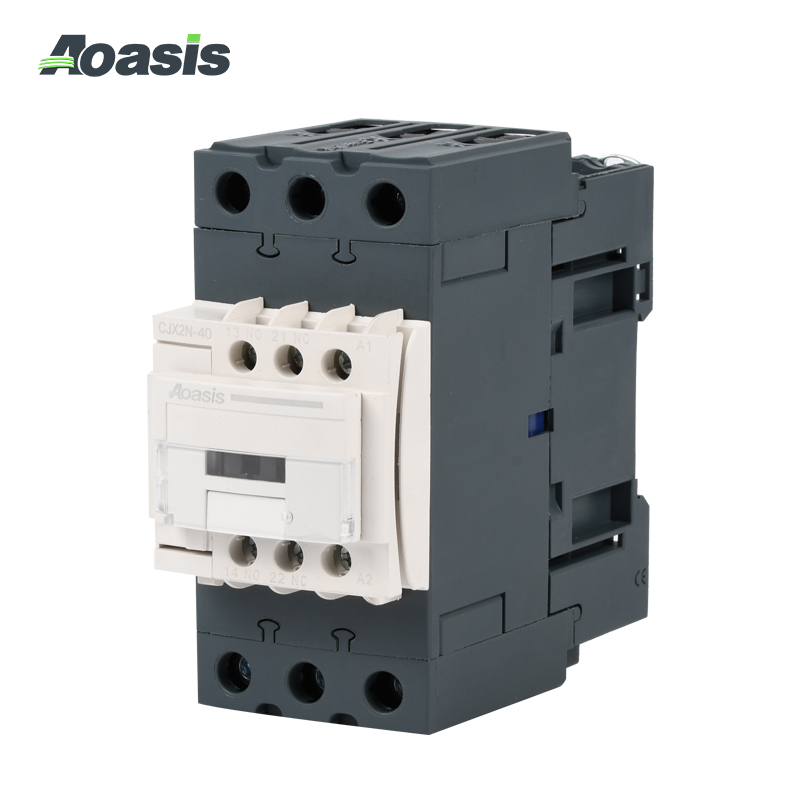

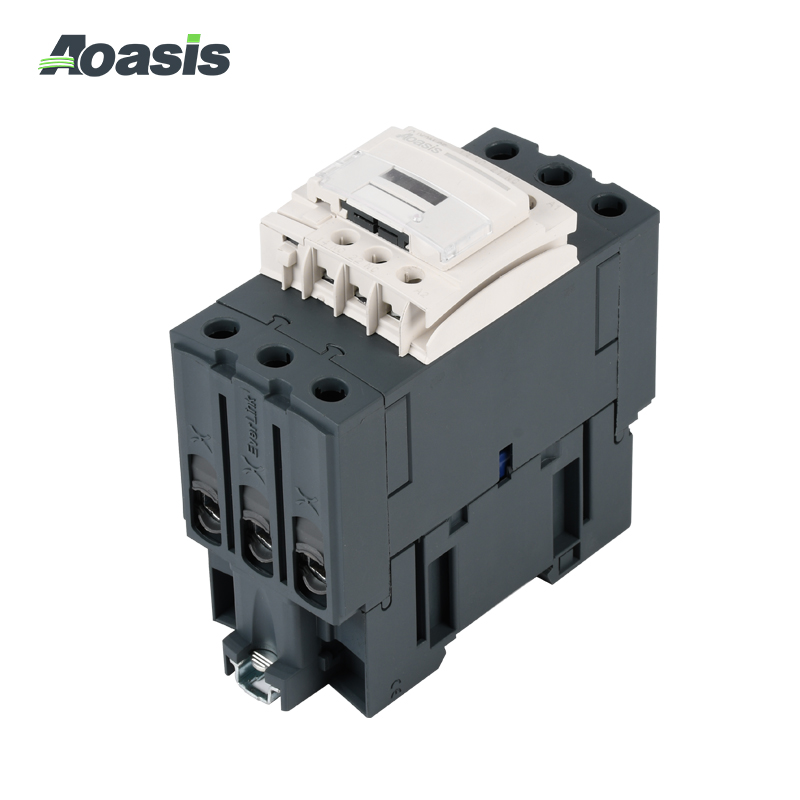

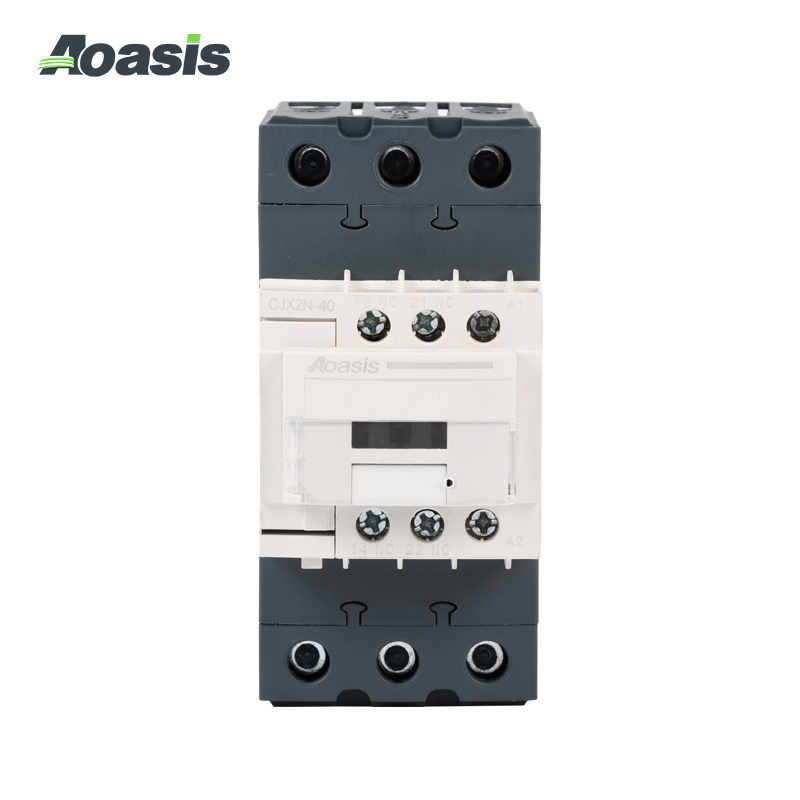

CJX2-40/50/65 AC Contactor

CJX2

Characteristics

CJX2-□□series contactor is suitable for using in the circuit up to the rated voltage 600V AC 50Hz or 60Hz,DC voltage 220V rated current 150A,for making and breaking and frequent starting, controlling the AC motor which is combined with the auxiliary contact group, air delayer,machine interlocking device and etc.It is combined into the delay contactor, mechanical interlock contactor, switchover capacitor contactor, star-delta starter, with the thermal JR28 relay; it is combined into the electromagnetic starter.

Type and Signification:

Characteristics:

CJX2 Series products can use building-block install way to add auxiliary contact group time-delay block, thermal relay and other accessories forming various of derived products.

Accessory Assembly Illustration:

Technical parameters:

Type

CJX2-40

CJX2-50

CJX2-65

CJX2-80

CJX2-95

CJX2-115

CJX2-150

CJX2-170

Rated Power kW/HP(AC-3)

IEC60947-4-1

GB14048.4

200-240V

11/15

15/20

18.5/25

22/30

25/35

30/40

40/50

55/75



380-440V

18.5/25

22/30

30/40

37/50

45/60

55/75

75/100

90/125



500-550V

30/40

37/50

37/50

45/60

45/60

75/100

90/125

100/145



660-690V

30/40

37/50

37/50

45/60

45/60

75/100

90/125

100/145

Rated Current A(AC-3)

IEC60947-4-1

GB14048.4

200-240V

50

60

75

90

110

125

165

175



380-440V

40

50

65

80

95

115

150

170



500-550V

34

39

42

49

59

100

120

125



660-690V

34

39

42

49

59

100

120

125

Conventional Thermal Current Ith:(A)

60

80

80

110

130

200

250

250

Rated Insulated Voltage Ui:(V)

690

1000

Auxiliary

Contact



AC-15

Contact

Arrangement

Standard

1NO+1NC

---





Special

---

---



Rated Current A(AC-15)

IEC60947-5-1

GB14048.5

200-240V

1.6

---





380-440V

0.95

---



Conventional Thermal Current Ith:(A)

16

---

Mechanical Life(Million Times)

6

5


Dimensions(mm):
