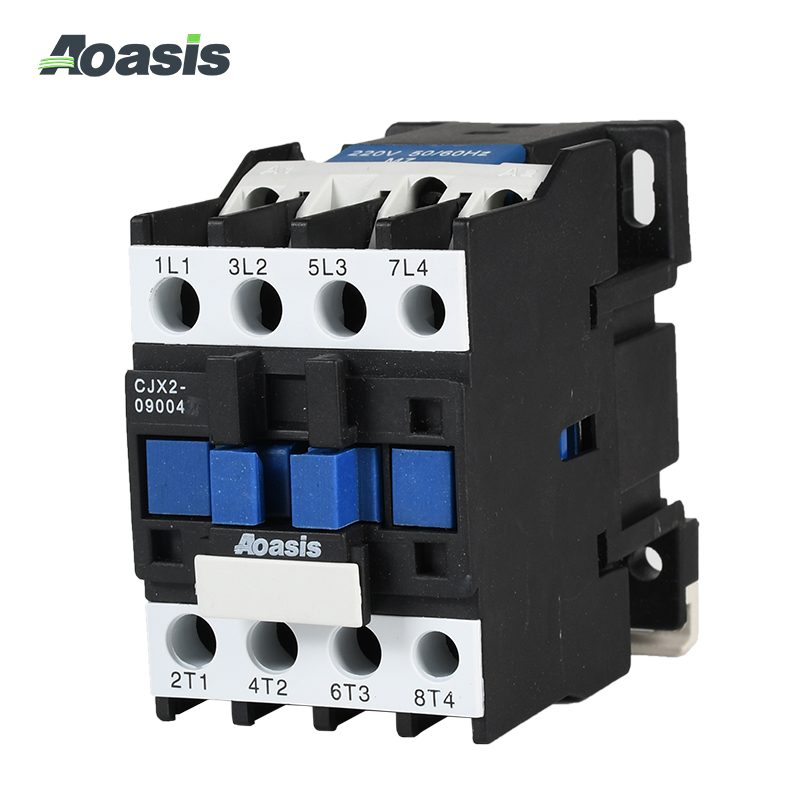

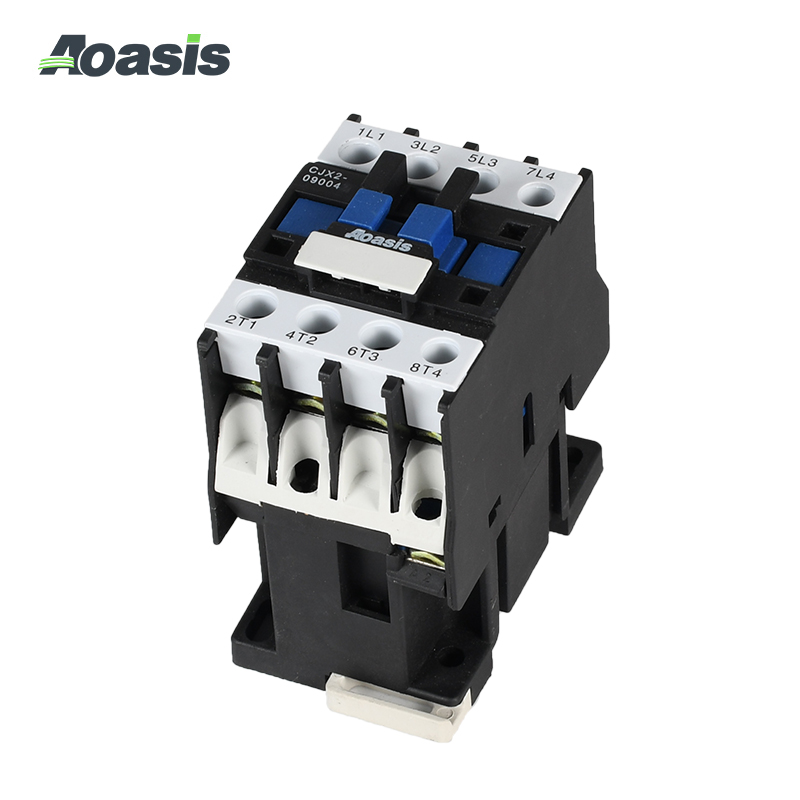

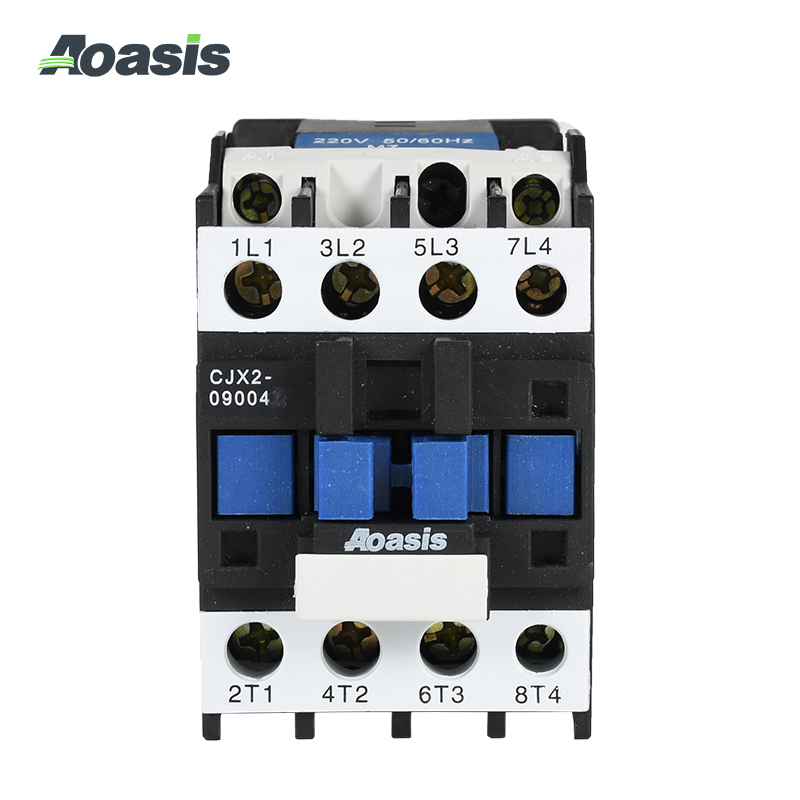

CJX2-09/12 4P AC Contactor

CJX2-4P

Characteristics

Technical parameters:

Type

4NO

CJX2-09004

CJX2-12004

CJX2-25004

CJX2-40004

CJX2-50004

CJX2-65004

CJX2-80004

CJX2-95004

2NO+2NC

CJX2-09008

CJX2-12008

CJX2-25008

CJX2-40008

CJX2-50008

CJX2-65008

CJX2-80008

CJX2-95008

Main circuit

Pole

4P

Rated Insulated Voltage(V)

690

Rated Operating Voltage(V)

690

Stipulated Heating Current(A)

25

25

40

60

80

80

125

125

Rated Working

Current(A)

AC-3380/400V       A

9

12

25

40

50

65

80

95

AC-3660/690V       A

6.6

8.9

18.0

34.0

39.0

42.0

49.0

49.0

AC-4380/400V       A

3.3

5.0

8.5

18.5

24.0

28.0

37.0

44.0

AC-4660/690V       A

1.5

2.0

4.4

9.0

12.0

14.0

17.3

21.3

Rated Power

kW/HP(AC-3)

AC-3380/400V      KW

4.0

5.5

11.0

18.5

22.0

30.0

37.0

45.0

AC-3660/690V      KW

5.5

7.5

15.0

30.0

33.0

37.0

45.0

45.0

AC-4380/400V      KW

1.2

2.2

4

7.5

11.0

15.0

18.5

22.0

AC-4660/690V      KW

1.1

1.5

4.0

7.5

11.0

11.0

15.0

18.5

Mechanical Life

10thousand times

1000

800

600

Electrical Life

AC-3 10thousand times

100

80

60

AC-4 10thousand times

20

15

10

Operational

Frequency

AC-3 10thousand times

1200

600

AC-3 10thousand times

300

300

Equipped with fuse Protector

RT16-25

RT16-25

RT16-50

RT16-63

RT16-80

RT16-80

RT16-125

RT16-125

Connection capacity                mm²

1.5

1.5

4

10

16

16

25

35

Coli

Rated control

circuit voltage (Us)

50Hz           V

24、36、110、220、380

50/60Hz50Hz    V

24、36、110、220、380

Allowed control

circuit voltage

Operation       V

85%~110% Us

Release OFF     V

20%~75% Us

Coil power dissipation

Attraction ON   VA

70

110

200

Keep          VA

9

11

24

Power dissipation W

2.7

4

10

Connection capacity of wiring terminal


Flexible wire
(without terminal)


1 wire       mm²

1…4

1.5…6

2.5…25

4…50

2 wire       mm²

1…4

1.5…6

2.5…16

4…25


Flexible wire
(with terminal)


1 wire       mm²

1…4

1…6

2.5…25

4…50

2 wire       mm²

1…2.5

1…4

2.5…10

4…16

Stiff cable

(without terminal)

1 wire       mm²

1…4

1.5…6

2.5…25

4…50

2 wire       mm²

1…4

1.5…6

2.5…10

4…25


Dimensions(mm):

CJX2-09004~25004、CJX2-09008~25008


Type

A max

B max

C max

C1 max

C2 max

a

b

c

CJX2-09004、09008、12004、12008

47

76

82

115

134

35

50/60

4.5

CJX2-25004、25008

58

86

96

130

149

40

50/60

4.5

CJX2-40004、50004、65004

85

128

116

149

168

40

100/110

6.5

CJX2-40008、50008、65008

85

128

126

149

168

40

100/110

6.5

CJX2-80004、95004

96

128

127

160

179

40

100/110

6.5

CJX2-80008、95008

96

128

136

160

179

40

100/110

6.5

Note: C1max-contactor+F4, C2max-contactor+LA2
