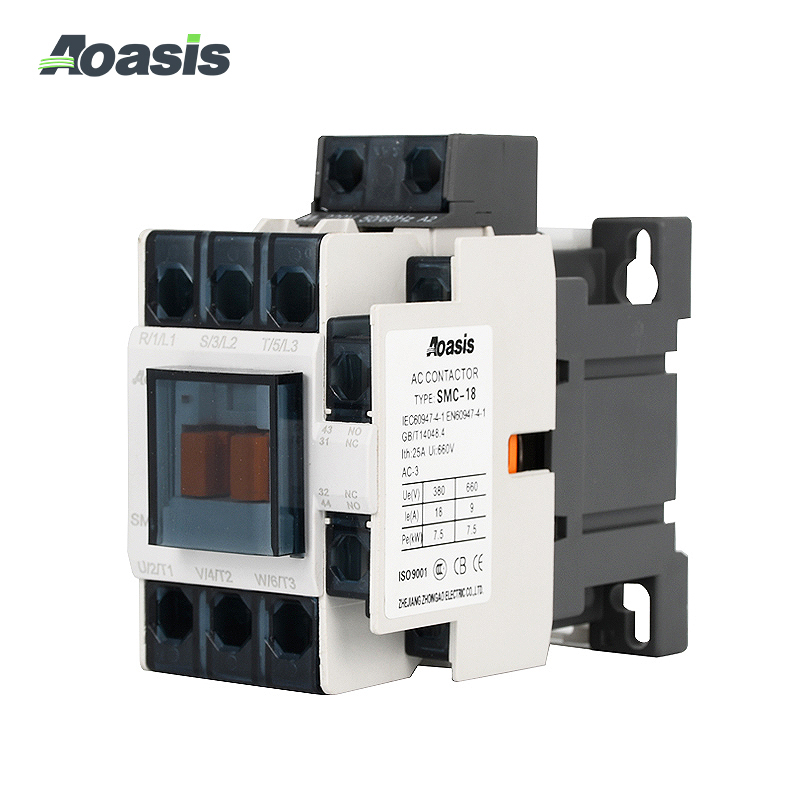

SMC-9/12/18/22 AC Contactor

SMC AC Contactors

Characteristics

SMC-口口type contactor is mainly used in the electric system with AC 50Hz/60Hz,the maximum voltage 660 V, and the maximum current 800A.lt is used for long distance swich-on and of circuit and frequently-starting motor.
lf properly combined with thermal overload relay device, it can work as starter of motor to prevent overload or open-phase. Series of such contactors can be equipped with toy-brick type auxiliary heads, air time-delay heads and interlocking device to act as time-delay contactor,reversing contactor, switching contactor and star-delta starter.

Type and Signification:

Technical Parameters:

Type

SMC-9

SMC-12

SMC-18

SMC-22

SMC-32

SMC-40

SMC-48

Rated Power kW/HP(AC-3)

IEC60947-4-1

GB14048.4

200-240V

2.5/3.5

3.5/4.7

4.5/6

5.5/7.5

7.5/10

11/15

11/15

380-440V

4/5.5

5.5/7.5

7.5/10

11/15

15/20

18.5/25

18.5/25

500-550V

4/5.5

7.5/10

7.5/10

15/20

18.5/25

22/30

22/30

660-690V

4/5.5

7.5/10

7.5/10

15/20

18.5/25

22/30

22/30

Rated Current A(AC-3)

IEC60947-4-1

GB14048.4

200-240V

11

13

18

22

32

40

48

380-440V

9

12

18

22

32

40

45

500-550V

7

12

13

22

28

32

40

660-690V

5

9

9

18

20

23

25

Conventional Thermal Current Ith:(A)

25

25

40

40

50

60

65

Rated Insulated Voltage Ui:(V)

690

Auxiliary

Contact

 AC-15

Contact

Arrangement

Standard

1NO+1NC

2NO+2NC

Special

Optional

Optional

Rated Current A(AC-15)

IEC60947-5-1

GB14048.5

200-240V

1.6

380-440V

0.95

Conventional Thermal Current Ith:(A)

16

Mechanical Life(Million Times)

10


Characteristics:

l Auxiliary electrified contact block is used,convenient for installation.

l Contactor and thermal relay can be connected directly,without any other fittings.

l Install by using screws or directly install at the standard guide track of 35mm.

l lt is easy to replace coil for using drawout type coil structure and unnecessary to dismantle contactor.

l Various accessories.


Accessory Assembly lllustration:


Product

Type

Mark


Product
Type
Mark

Reversing Contactor

SMC-

22N


Aux Contacts Unit
SAU-
2

Capacitor Contactors

SMC-

22C


Mechanical Interlock Unit
SAR- 9

D.O.L Motor Starter

SMS-

22


Separate Mounting Unit
SAZ- 22H


Dimensions(mm):


Electrical Life Curve:


If you have any enquiry about quotation or cooperation,please feel free to email us ator use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
