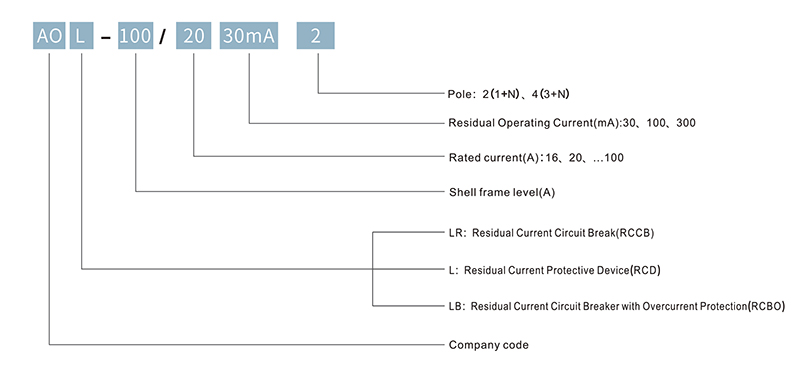

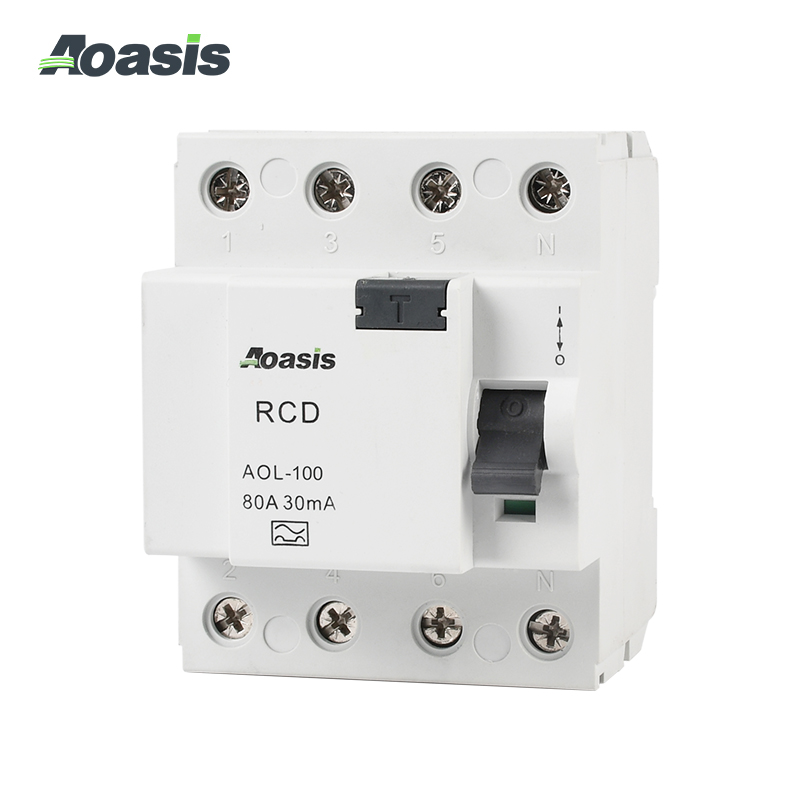

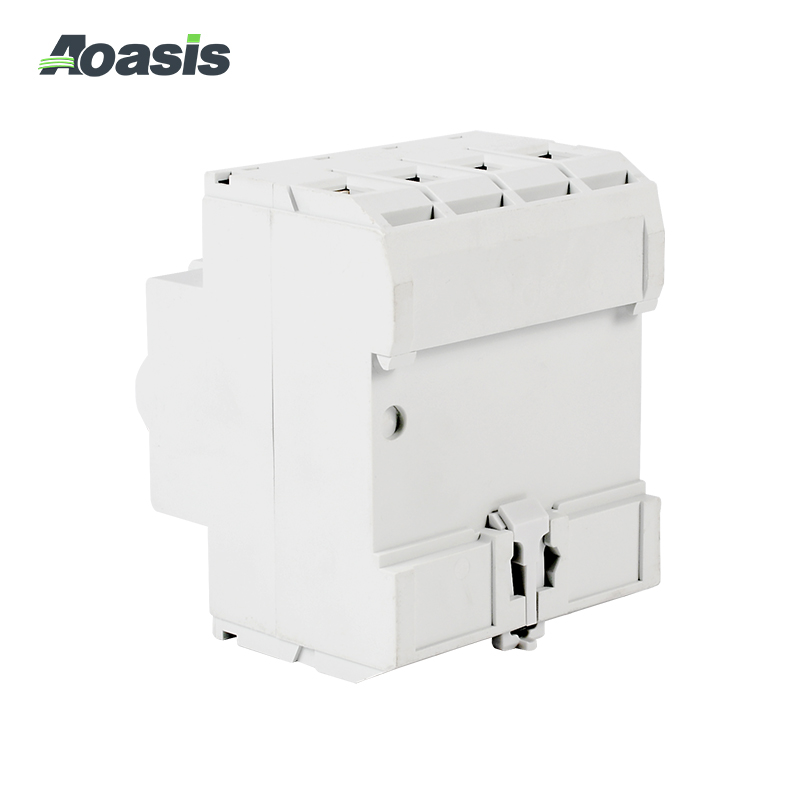

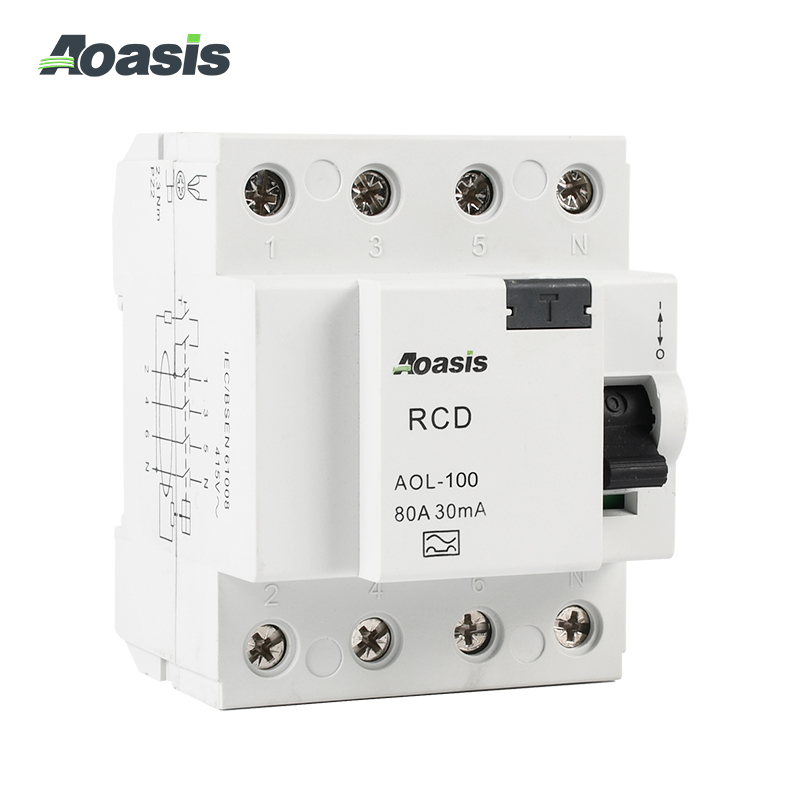

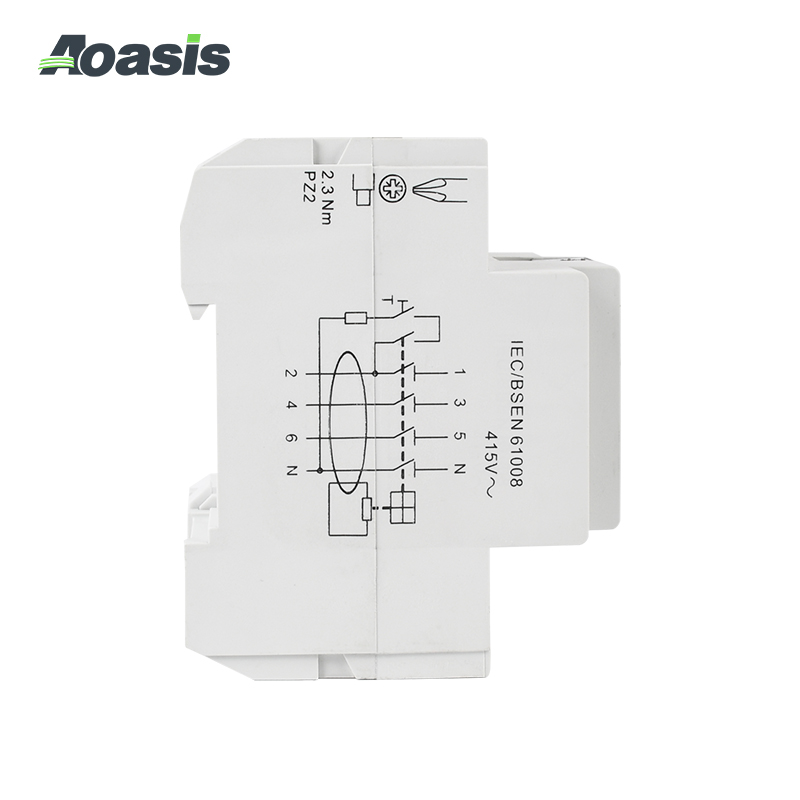

Product Selection：
Technical Parameters：
|
Type |
AOL-100 |
|
Standard |
IEC61009-1，GB16917.1，IEC61008-1，GB16916.1 |
|
Functions |
Leakage Protection、Isolation Function |
|
Frame Current(A) |
100 |
|
Pole |
2(1+N)、4(3+N) |
|
Rated Current(A) |
40、63、80、100 |
|
Rated Voltage(V) |
AC230(1P)、AC230/400 |
|
Insulation Voltage |
500 |
|
Rated Impulse Withstand Voltage(KV) |
4 |
|
Rated Residual Working Current(mA) |
30、100、300 |
|
Residual Current Characteristics |
A、AC |
|
Rated Short-Circuit Breaking Capacity |
6KA |
|
Rated Ultimate Short-Circuit Breaking Capacity |
6KA |
|
Rated Opetating Short-Circuit Breaking Capacity |
6KA |
|
Max.Breaking Capacity at Rated Residual Current |
0.1s |
|
Tripping Curve |
- |
|
Release Form |
Thermomagnetic Release |
|
Electrical Life |
10000 |
|
机械寿命(次) Mechanical Life |
20000 |
|
Pollution Grade |
2 |
|
Protection Level |
IP20 |
|
Temperature |
-35℃~ +70℃ |
|
Altitude |
Do not Exceed 2000m |
|
Wiring Terminal |
Screw Crimping |
|
Max. Connection Capacity (m㎡) |
25 |
|
Max.Ultimate Torque (Nm) |
2.5 |
|
Installation Category |
II、III |
|
Installation Method |
TH35-7.5 Standard DIN Rail |
|
lncoming Wiring Method |
Installed the Wire at the Top |

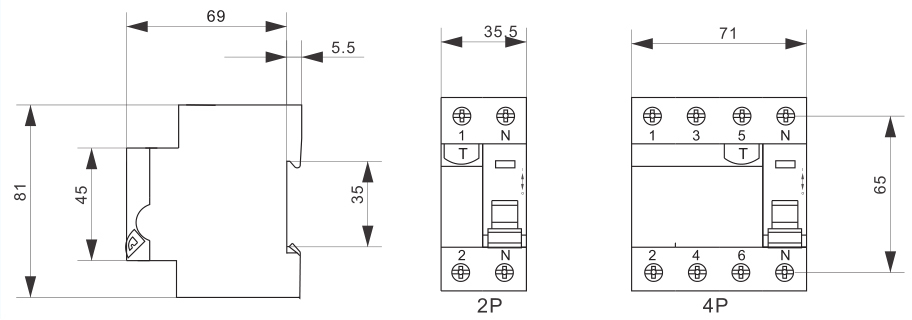

Outline Overall and Installation Dimensions (mm)：
