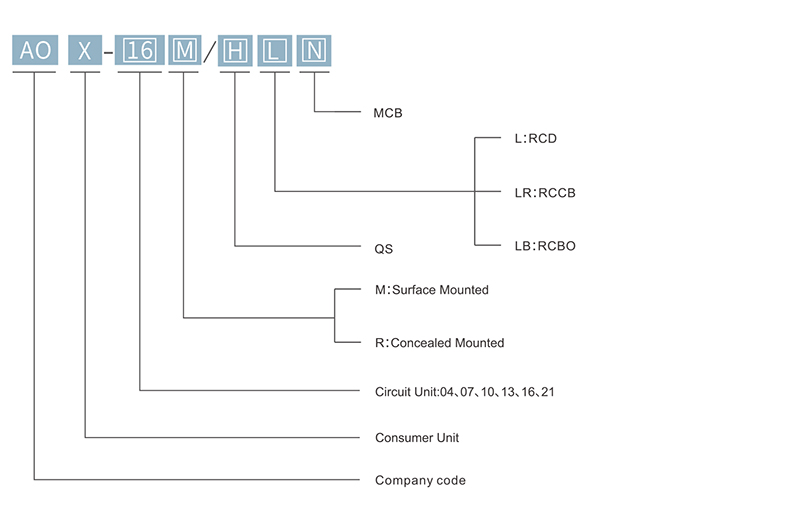

Product Selection：
Technical Parameters：
|
Product Model |
Main Switch Configuration |
Available Loop Element |
|
|
Isolating Switch（QS） |
Quantity |
||
|
AOX-04M/H |
AOH-125 63A |
1 |
2 |
|
AOX-07M/H |
AOH-125 100A |
1 |
5 |
|
AOX-10M/H |
AOH-125 100A |
1 |
8 |
|
AOX-13M/H |
AOH-125 100A |
1 |
11 |
|
AOX-16M/H |
AOH-125 100A |
1 |
14 |
|
AOX-21M/H |
AOH-125 100A |
1 |
19 |
Optional matching line protection products:
|
Product Name |
Product Model |
Current Specifications |
|
Isolating Switch(QS) |
AOH-125 |
25A、40A、63A、80A、100A、125A |
|
Residual Current Protective Device (RCD) |
AOL-100 |
40A、63A、80A、100A |
|
Miniature Circuit Breaker (MCB) |
AON-63 |
2A、4A、6A、10A、16A、20A、25A、32A、 40A、50A、63A |
|
Surge Protection Device (SPD) |
AOU-65 |
Max. Discharge Current:65KA Max. Permissible Strength of Backup Fuse:125A gL |
Outline Overall and Installation Dimensions (mm)：
AOX-04M
AOX-07~21M
|
Product Model |
Circuit Unit |
Width（B） |
Mounting Dimension（E） |
|
AOX-07M |
7P |
188 |
138 |
|
AOX-10M |
10P |
241 |
160 |
|
AOX-13M |
13P |
292 |
210 |
|
AOX-16M |
16P |
343 |
260.4 |
|
AOX-21M |
21P |
438 |
356 |
