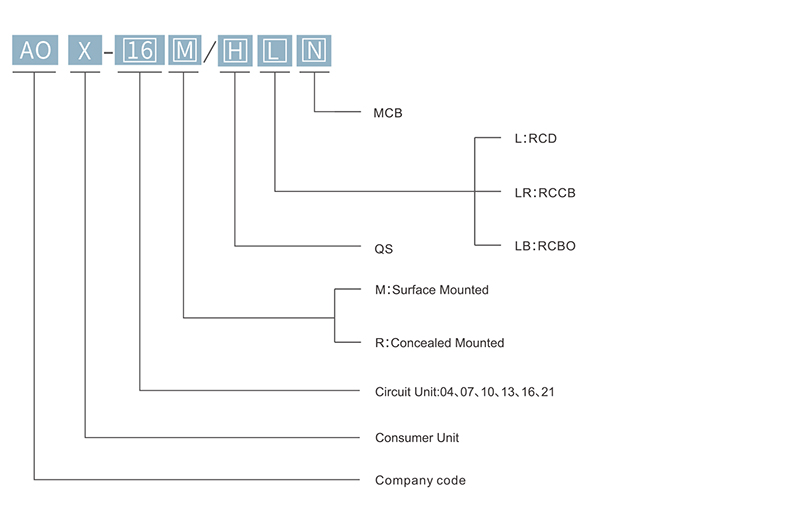

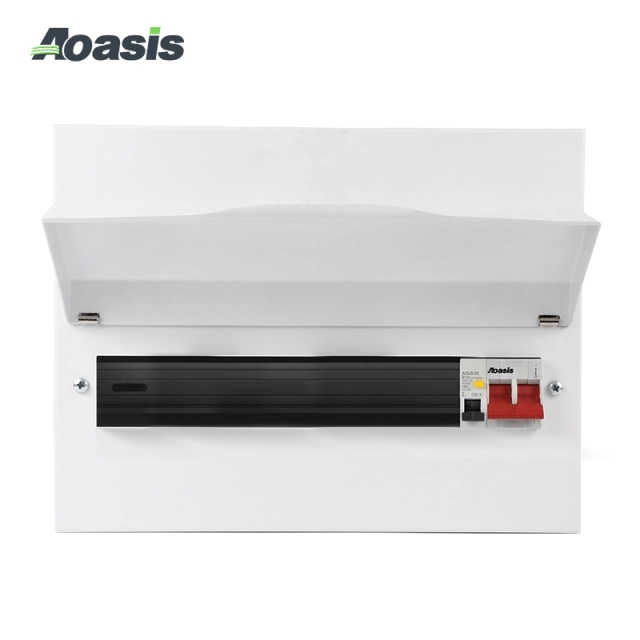

Product Selection：
Technical Parameters：
|
Rated Working Voltage |
230/400VAC |
|
Max.Rated Working Current |
100A |
|
Case Material |
Ivory:RAL9010 |
|
Housing Characteristics |
Made of high quality cold-rolled steel plate and treated with electrostatic spray,it has excellent corrosion resistance. |
|
Independent grounding,ensure more safe and reliable grounding continuity,prevent electrical fire accidents. |
|
|
Installation and Wiring |
There are knockout holes at the inlet and outlet ends of the box body and the bottom of box for easy installation. |
|
There is enough installation space in the box body to meet the needs of user wiring. |
|
|
Standard |
BS 7671、GB/T 17466.1, GB/T 17466.24 |
|
Protection Grade |
IP30 |
Optional matching line protection products:
|
ProductModel |
Main Switch Configuration |
Available Loop Element |
|||||
|
Isolating Switch |
Quantity |
Residual Current Protective Device |
Quantity |
||||
|
AOX-04M/HLB |
AOH-125 63A |
1 |
AOLB-32 20A 30mA |
1 |
1 |
||
|
AOX-07M/HLB |
AOH-125 80A |
1 |
AOLB-32 25A 30mA |
1 |
4 |
||
|
AOX-10M/HLB |
AOH-125 100A |
1 |
AOLB-32 32A 30mA |
1 |
7 |
||
|
AOX-13M/HLB |
AOH-125 100A |
1 |
AOLB-3232A 30mA |
1 |
10 |
||
|
AOX-16M/HLB |
AOH-125 100A |
1 |
AOLB-3232A 30mA |
1 |
13 |
||
|
AOX-21M/HLB |
AOH-125 100A |
1 |
AOLB-3232A 30mA |
1 |
18 |
||
Optional matching line protection products:
|
Product Name |
Product Model |
Current Specifications |
|
Isolating Switch(QS) |
AOH-125 |
25A、40A、63A、80A、100A、125A |
|
Residual Current Protective Device (RCD) |
AOL-100 |
40A、63A、80A、100A |
|
Miniature Circuit Breaker (MCB) |
AON-63 |
2A、4A、6A、10A、16A、20A、25A、32A、 40A、50A、63A |
|
Surge Protection Device (SPD) |
AOU-65 |
Max. Discharge Current:65KA Max. Permissible Strength of Backup Fuse:125A gL |
|
Residual Current Circuit Breaker (RCCB) |
AOLR-80 |
16A、20A、25A、32A、40A、63A、80A |
|
Residual Current Circuit Breaker With Overcurrent Protection(RCD) |
AOLR-32 |
6A、10A、16A、20A、25A、32A、 |
Outline Overall and Installation Dimensions (mm)：
AOX-04M
AOX-07~21M
|
Product Model |
Circuit Unit |
Width（B） |
Mounting Dimension（E） |
|
AOX-07M |
7P |
188 |
138 |
|
AOX-10M |
10P |
241 |
160 |
|
AOX-13M |
13P |
292 |
210 |
|
AOX-16M |
16P |
343 |
260.4 |
|
AOX-21M |
21P |
438 |
356 |
