Technical parameters:
|
TYPE |
CJX2N-40 |
CJX2N-50 |
CJX2N-65 |
||
|
Rated Power kW/HP(AC-3) IEC60947-4-1 GB14048.4 |
200-240V |
11/15 |
15/20 |
18.5/25 |
|
|
380-440V |
18.5/25 |
22/30 |
30/40 |
||
|
500-550V |
30/40 |
37/50 |
37/50 |
||
|
Rated Current A(AC-3) IEC60947-4-1 GB14048.4 |
200-240V |
50 |
60 |
75 |
|
|
380-440V |
40 |
50 |
65 |
||
|
500-550V |
34 |
39 |
42 |
||
|
Conventional Thermal Current Ith:(A) |
60 |
80 |
80 |
||
|
Rated Insulated Voltage Ui:(V) |
690 |
||||
|
Auxiliary Contact
AC-15 |
Contact Arrangement |
Standard |
1NO+1NC |
||
|
Special |
--- |
||||
|
Rated Current A(AC-15) IEC60947-5-1 GB14048.5 |
200-240V |
1.6 |
|||
|
380-440V |
0.95 |
||||
|
Conventional Thermal Current Ith:(A) |
16 |
||||
|
Electric Life(Million Times) |
1 |
||||
|
Mechanical Life(Million Times) |
5 |
||||
Circuits Characteristic and Terminal Connection:
|
Connection Circuits |
CJX2N-09 |
CJX2N-12 |
CJX2N-18 |
CJX2N-25 |
CJX2N-32 |
CJX2N-40 |
CJX2N-50 |
CJX2N-65 |
|
|
Coil Voltage(V) |
AC 50Hz/60Hz |
24，48，110，220/230，380/400，420/440 |
|||||||
| Acting Range |
Attraction(Hot) |
(85%~110%)Us；+40℃ |
|||||||
|
Release(Cold) |
AC:(20%~75%)Us,DC:(10%~75%)Us;-5℃ |
||||||||
|
Installation |
35mm DIN Rail or Screw(M4) |
||||||||
| Connection | Main Contact |
Screw(M3.5)Line-Pressed Teminal Wire：1~4m㎡ |
Screw(M4)Line-Pressed Teminal Wire：1.25~5.5m㎡
|
Screw(M6)Line-Pressed Teminal Wire：2~22m㎡
|
|||||
| Aux.Contact/Coil |
Screw(M3.5)Line-Pressed Teminal |
||||||||

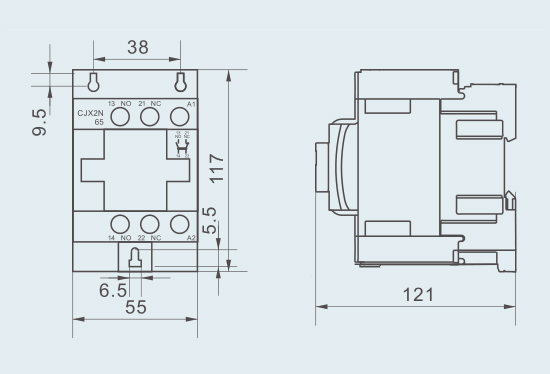

External Dimensions(mm) H(height):
