Technical Parameters:
|
TYPE |
CJX2N-09 |
CJX2N-12 |
CJX2N-18 |
CJX2N-25 |
CJX2N-32 |
||
|
Rated Power kW/HP(AC-3) IEC60947-4-1 GB14048.4 |
200-240V |
2.2/3 |
3/4 |
4/5.5 |
5.5/7.5 |
7.5/10 |
|
|
380-440V |
4/5.5 |
5.5/7.5 |
7.5/10 |
11/15 |
15/20 |
||
|
500-550V |
5/7 |
7.5/10 |
9/12 |
15/20 |
18.5/25 |
||
|
Rated Current A(AC-3) IEC60947-4-1 GB14048.4 |
200-240V |
11 |
15 |
22 |
30 |
40 |
|
|
380-440V |
9 |
12 |
18 |
25 |
32 |
||
|
500-550V |
7 |
9 |
12 |
18 |
21 |
||
|
Conventional Thermal Current lth:(A) |
18 |
18 |
25 |
40 |
40 |
||
|
Rated Insulated Voltage Ui:(V) |
690 |
||||||
|
Auxiliary Contact
AC-15 |
Contact Arrangement |
Standard |
1NO+1NC |
||||
|
Special |
--- |
||||||
|
Rated Current A(AC-15) IEC60947-5-1 GB14048.5 |
200-240V |
1.6 |
|||||
|
380-440V |
0.95 |
||||||
|
Conventional Thermal Current lth:(A) |
16 |
||||||
|
Electric Life(Million Times)(AC-3) |
1 |
||||||
|
Mechanical Life(Million Times) |
5 |
||||||
Circuits Characteristic and Terminal Connection:
|
Connection Circuits |
CJX2N-09 |
CJX2N-12 |
CJX2N-18 |
CJX2N-25 |
CJX2N-32 |
CJX2N-40 |
CJX2N-50 |
CJX2N-65 |
|
|
Coil Voltage(V) |
AC 50Hz/60Hz |
24，48，110，220/230，380/400，420/440 |
|||||||
| Acting Range |
Attraction(Hot) |
(85%~110%)Us；+40℃ |
|||||||
|
Release(Cold) |
AC:(20%~75%)Us,DC:(10%~75%)Us;-5℃ |
||||||||
|
Installation |
35mm DIN Rail or Screw(M4) |
||||||||
| Connection | Main Contact |
Screw(M3.5)Line-Pressed Teminal Wire：1~4m㎡ |
Screw(M4)Line-Pressed Teminal Wire：1.25~5.5m㎡
|
Screw(M6)Line-Pressed Teminal Wire：2~22m㎡
|
|||||
| Aux.Contact/Coil |
Screw(M3.5)Line-Pressed Teminal |
||||||||

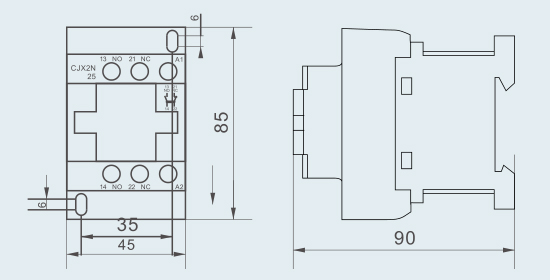

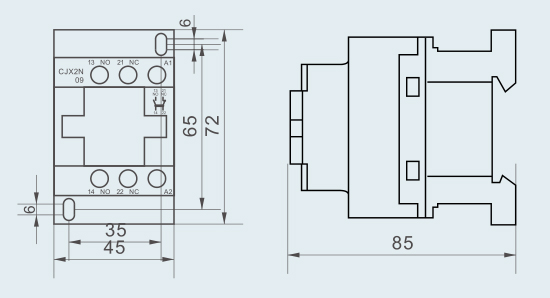

External Dimensions(mm) H(height):
