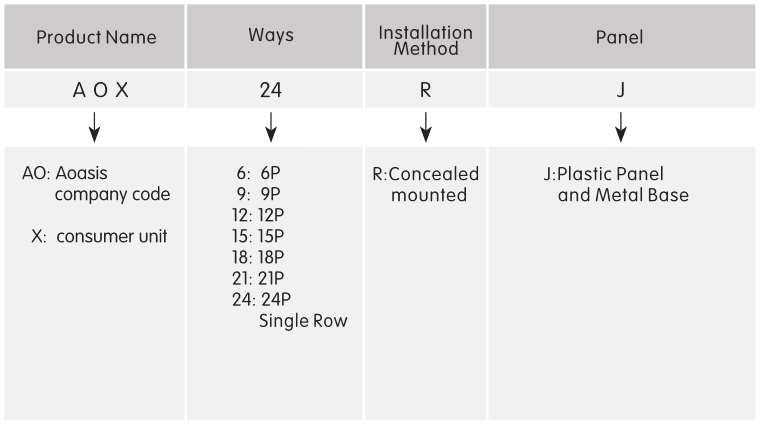

Product Selection：
Note: The width is multiple of 18mm, 1-digit width is 18mm.
Main Parameter：
|
Rated Working Voltage |
230/400VAC |
|
Max.Rated Working Current |
125A |
|
Case Material |
Movable door: Translucence,Panel: Ivory |
|
The movable door is made of high quality PC material.The panel is made of ABS flame retardant material with V-0 flame retardant grade. |
|
|
The bottom box is made of cold-rolled steel plate, and the edges are bent.The surface is treated with electrostatic spray, which is strong and durable and has excellent corrosion resistance. |
|
|
Installation and Wiring |
There are knockout holes on the top and bottom for easy access of wires. |
|
There is a distance between the bottom box and the guide rail to meet the customer's wiring needs. |
|
|
For easy and accurate installation, the guide rail can be fine-tuned in the vertical direction,and also can be fine-tuned up and down. |
|
|
Standard |
GB/T 17466.1,GB/T 17466.24 |
|
Protection Grade |
Ip30 |

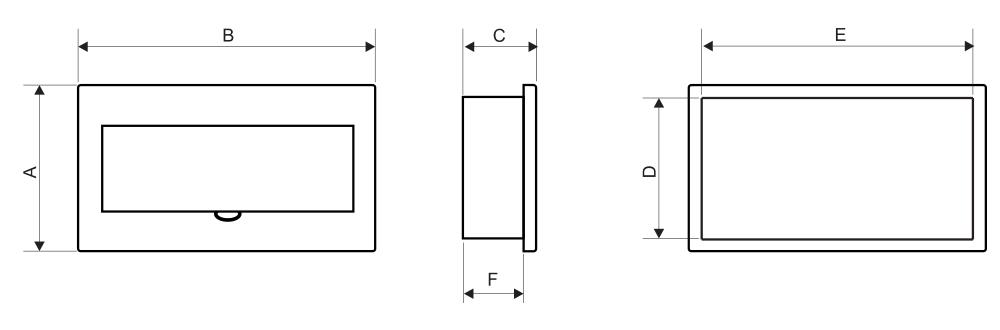

Outline Overall andInstallation Dimensions（mm）：
|
Type |
Ways |
A |
B |
C |
D |
E |
F |
|
AOX-6RJ |
6P |
222 |
237 |
102 |
205 |
189 |
90 |
|
AOX-9RJ |
9P |
222 |
250 |
102 |
205 |
243 |
90 |
|
AOX-12RJ |
12P |
222 |
305 |
102 |
205 |
297 |
90 |
|
AOX-15RJ |
15P |
242 |
360 |
102 |
225 |
350 |
90 |
|
AOX-18RJ |
18P |
242 |
416 |
102 |
225 |
404 |
90 |
|
AOX-21RJ |
21P |
242 |
470 |
102 |
225 |
458 |
90 |
|
AOX-24RJ |
24P Single row |
402 |
312 |
102 |
375 |
297 |
90 |
