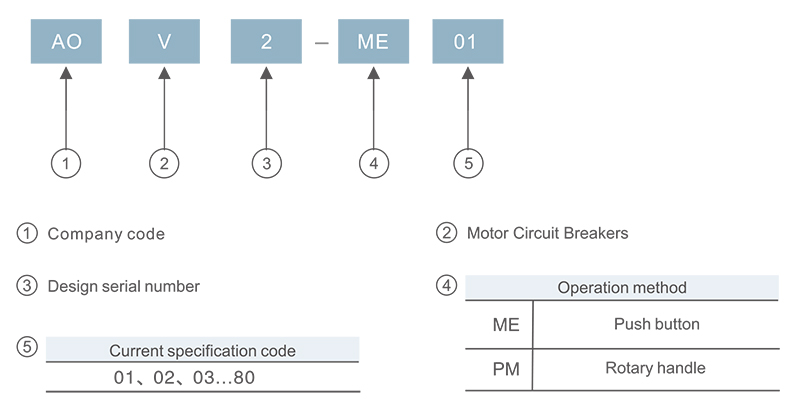

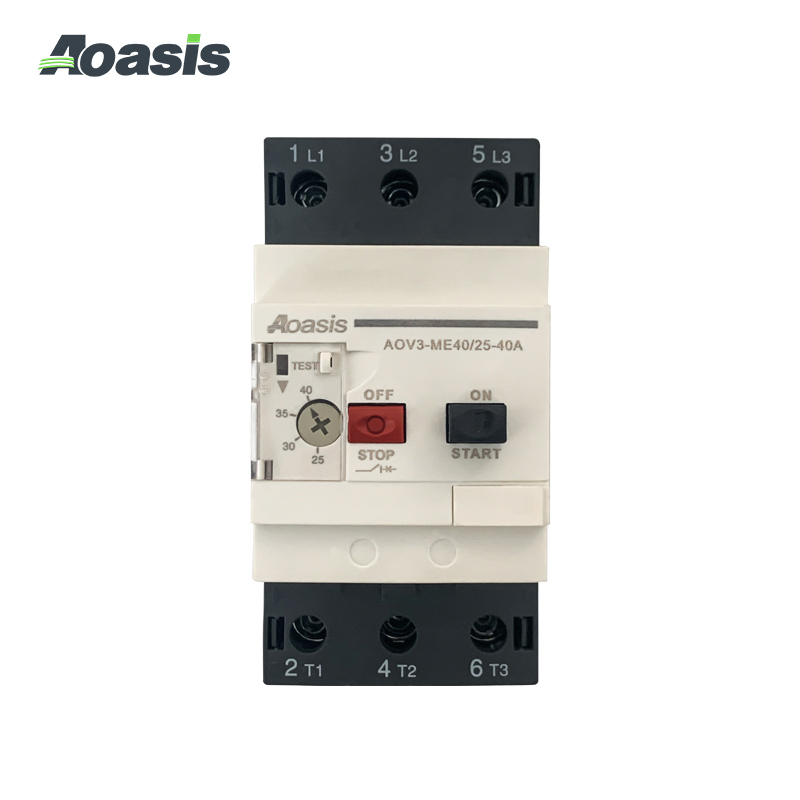

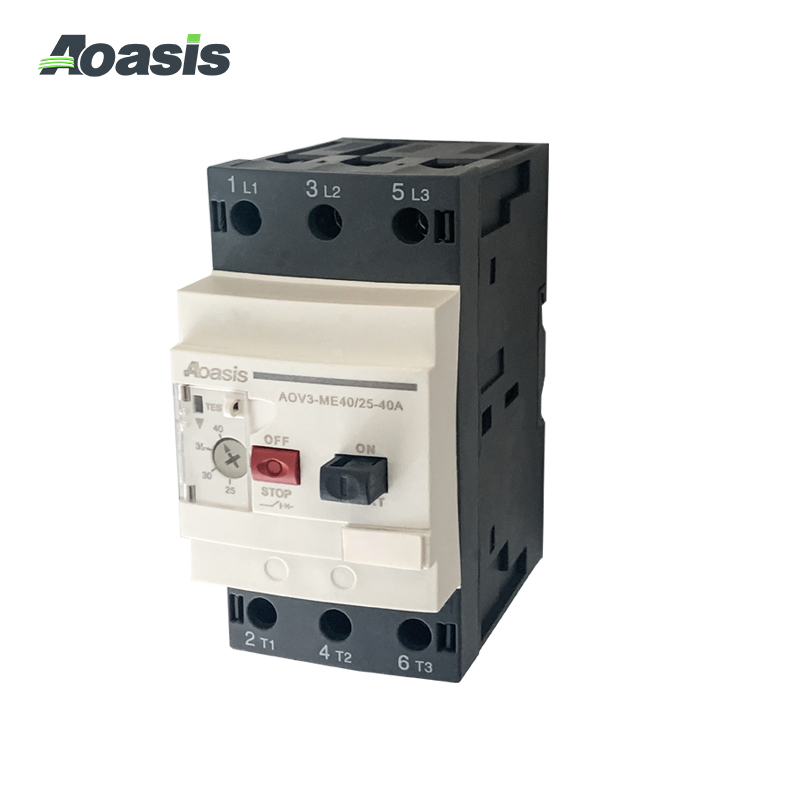

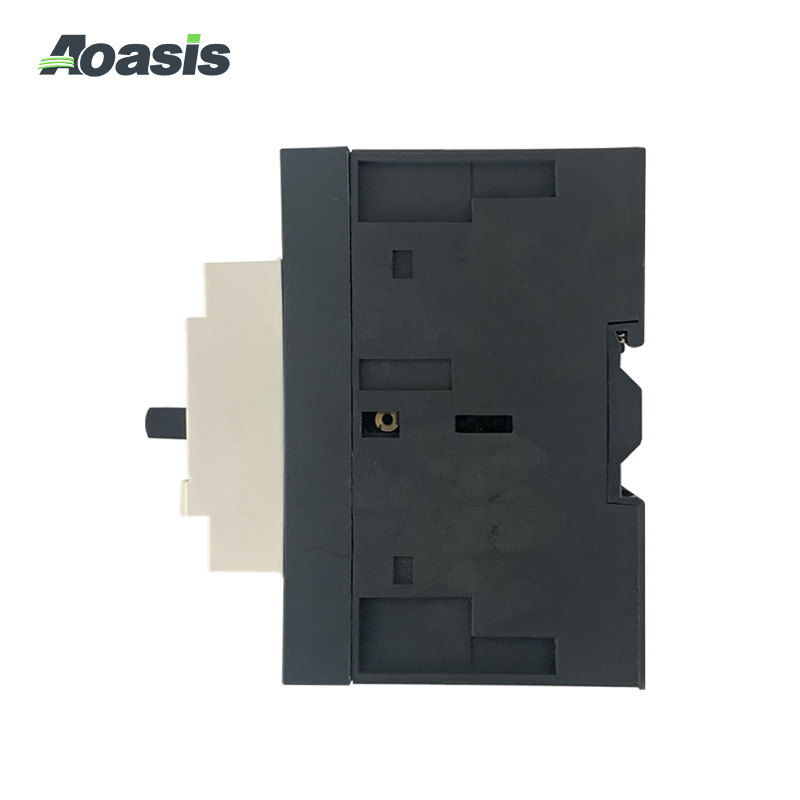

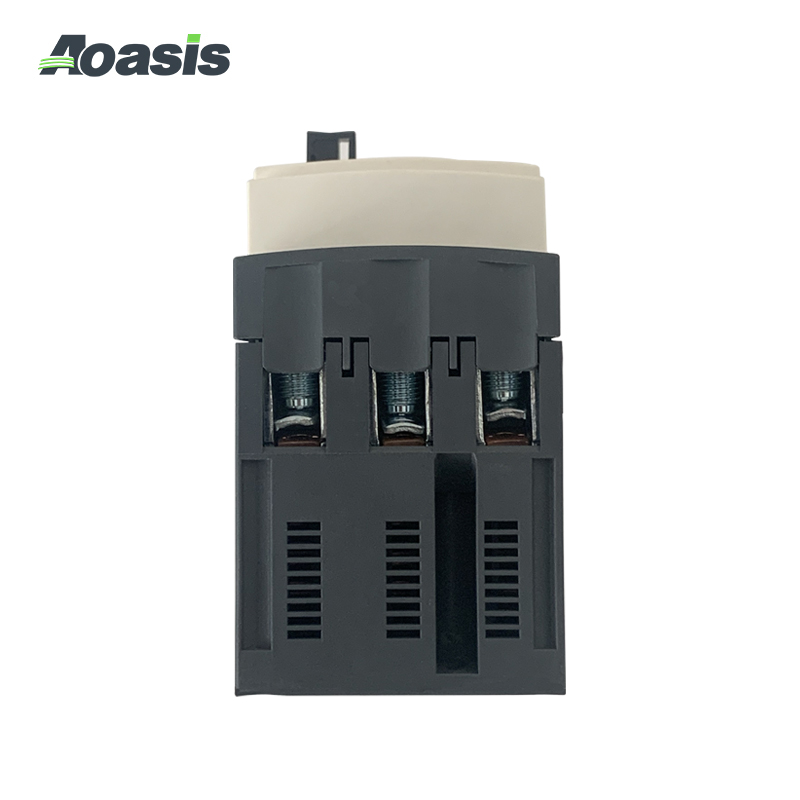

Model specification：
Design Features：
● Adjustable current setting value: it can be adjusted to the appropriate current value indicating position according to the actual working current.
● Can simulate mechanism trip design: through the TEST can make the mechanism trip, convenient simulation TEST.
Structural Features：
● Double new point structure: double break point of contact can suppress and disperse arc energy, improve the effort of eliminating isolated, improve the ability of connecting new points, reduce the electrical loss of melting head, and effectively improve the electrical life of the product.
● Thermal and magnetic comprehensive protection structure: the product has multiple protection functions of overload, short circuit and three-phase unbalanced.
Technical Parameters：
|
AOV3-ME |
|||||
|
Motor Circuit Breakers Model |
AOV3-ME40 |
AOV3-ME63 |
AOV3-ME80 |
||
|
Rated current A |
25-40A |
40-63A |
56-80A |
||
|
Press-button control 50/60Hz,AC-3 The three-phase motor standard rated power |
230V (kW) |
11 |
15 |
22 |
|
|
400V (kW) |
18.5 |
30 |
40 |
||
|
415V (kW) |
22 |
33 |
45 |
||
|
440V (kW) |
22 |
33 |
45 |
||
|
The breaking capacity meets IEC60947-2 Standard |
230/240V |
Icu (kA) |
100 |
||
|
Ics%（1） |
100 |
||||
|
400/415V |
Icu (kA) |
15 |
|||
|
Ics%（1） |
50 |
||||
|
440V |
Icu (kA) |
10 |
|||
|
Ics%（1） |
60 |
||||
|
500V |
Icu (kA) |
4 |
|||
|
Ics%（1） |
100 |
||||
|
690V |
Icu (kA) |
2 |
|||
|
Ics%（1） |
100 |
||||
|
If the breaking capacity Isc is greater than Icu, the corresponding fuse can be used. (if needed) |
230/240V |
aM A |
★ |
||
|
gG A |
★ |
||||
|
400/415V |
aM A |
315 |
|||
|
gG A |
400 |
||||
|
440V |
aM A |
315 |
|||
|
gG A |
400 |
||||
|
500V |
aM A |
200 |
|||
|
gG A |
250 |
||||
|
690V |
aM A |
200 |
|||
|
gG A |
250 |
||||
★Don't need Fusegear: breaking capacity lcn>lsc
(1)percentage of lcu
Outline Dimensional Diagram(mm)：
| Type | AOV2-ME&PM | AOV3-ME |
| a |
44.5 |
61.2 |
| b |
89 |
121 |
| c |
ME:78,PM:90 |
114 |
X1 is electrical clearance = 400mm, applicable to Ue<690v
