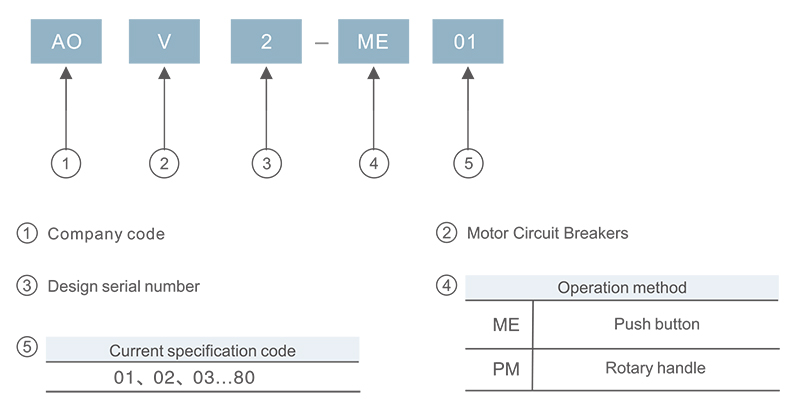

Model specification：
Design features：
● Adjustable current setting value: it can be adjusted to the appropriate current value indicating position according to the actual working current.
● Can simulate mechanism trip design: through the TEST can make the mechanism trip, convenient simulation TEST.
Structural Features：
● Double new point structure: double break point of contact can suppress and disperse arc energy, improve the effort of eliminating isolated, improve the ability of connecting new points, reduce the electrical loss of melting head, and effectively improve the electrical life of the product.
● Thermal and magnetic comprehensive protection structure: the product has multiple protection functions of overload, short circuit and three-phase unbalanced.
Technical Parameters：
|
50/60Hz,AC-3 |
Set Range of
thermal Tripping Curren
|
Magnetic Trip Curren |
The Current Code |
|||
|
The three-phase motor standard rated power |
||||||
|
230V KW |
400V KW |
415V KW |
440V KW |
A |
Id±20% A |
|
|
- |
- |
- |
- |
0.1-0.16 |
1.5 |
01 |
|
- |
- |
- |
- |
0.16-0.25 |
2.4 |
02 |
|
- |
- |
- |
- |
0.25-0.4 |
5 |
03 |
|
- |
- |
- |
- |
0.4-0.63 |
8 |
04 |
|
- |
- |
- |
0.37 |
0.63-1 |
13 |
05 |
|
- |
0.37 |
- |
0.55 |
1-1.6 |
22.5 |
06 |
|
0.37 |
0.75 |
0.75 |
1.1 |
1.6-2.5 |
33.5 |
07 |
|
0.75 |
1.5 |
1.5 |
1.5 |
2.5-4 |
51 |
08 |
|
1.1 |
2.2 |
2.2 |
3 |
4-6.3 |
78 |
10 |
|
2.2 |
4 |
4 |
4 |
6-10 |
138 |
14 |
|
3 |
5.5 |
5.5 |
7.5 |
9-14 |
170 |
16 |
|
4 |
7.5 |
9 |
9 |
13-18 |
223 |
20 |
|
5.5 |
11 |
11 |
11 |
17-23 |
327 |
21 |
|
5.5 |
11 |
11 |
11 |
20-25 |
327 |
22 |
|
7.5 |
15 |
15 |
15 |
24-32 |
416 |
32 |
Technical Parameters：
|
Moter Circuit Breaker Model |
|
01-06 |
07 |
08 |
10 |
14 |
16 |
20 |
21 |
22 |
32 |
||
|
Rated Value |
A |
01~1.6 |
2.5 | 4 | 6.3 | 10 | 14 | 18 | 23 | 25 | 32 | ||
|
Breaking Capacity GB/T140482 Standard |
230/240V |
Icu |
kA |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
|
lsc%(1) |
|
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
||
|
400/415V |
Icu |
kA |
★ |
★ |
★ |
★ |
★ |
100 |
100 |
100 |
100 |
100 |
|
|
lsc%(1) |
|
★ |
★ |
★ |
★ |
★ |
50 |
50 |
40 |
40 |
40 |
||
|
440V |
Icu |
kA |
★ |
★ |
★ |
★ |
★ |
50 |
20 |
20 |
20 |
20 |
|
|
lsc%(1) |
|
★ |
★ |
★ |
★ |
★ |
75 |
75 |
75 |
75 |
75 |
||
|
500V |
Icu |
kA |
★ |
★ |
★ |
★ |
50 |
42 |
10 |
10 |
10 |
10 |
|
|
lsc%(1) |
|
★ |
★ |
★ |
★ |
100 |
100 |
75 |
75 |
75 |
75 |
||
|
Thermal Stress Protection of Cable in Short Circuit Minimum Protective Wear Area |
1m㎡ |
|
● |
● |
● |
≤10kA |
≤6kA |
（2） |
（2） |
（2） |
（2） |
（2） |
|
|
Insulated Copper Core Cable |
40°C
Isc value
|
1.5 m㎡ |
|
● |
● |
● |
≤20kA |
≤10kA |
（2） |
（2） |
（2） |
（2） |
（2） |
|
2.5 m㎡ |
|
● |
● |
● |
● |
● |
● |
● |
● |
● |
（2） |
||
|
4~6m㎡ |
|
● |
● |
● |
● |
● |
● |
● |
● |
● |
● |
||
★>100kA
(1) percentage of lcu
●The cable section is protected.
(2)The cable section is unprotected.
Outline Dimensional Diagram(mm)：
| Type | AOV2-ME&PM | AOV3-ME |
| a |
44.5 |
61.2 |
| b |
89 |
121 |
| c |
ME:78,PM:90 |
114 |
X1 is electrical clearance = 400mm, applicable to Ue<690v
