AOU-40 4P Surge Protective Device

AOU

Caracteristicas

AOU surge protect Device, also known as lightning protector. It is an electronic device that provides safety protection for various electronic equipment, instruments and communication lines. When the electrical circuit or communication line suddenly produces a peak current or voltage due to external interference, the surge protection device can lead to shunt in a very short time, in order to avoid damage to other equipment in the circuit caused by the surge.AOU surge protector device is suitable for ac 50/60 Hz power supply system with rated voltage 220V/380V to protect indirect and direct lightning effects or other transient overvoltage surges. It meets the requirements of surge protection for residential use, tertiary and industrial fields.

Product Selection:


Technical Parameters:

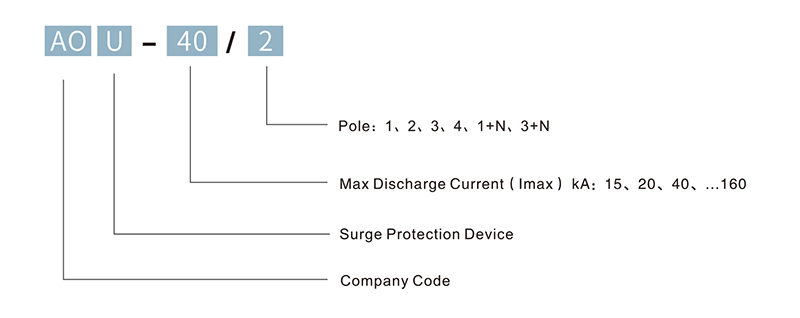

Type

AOU-15

AOU-20

AOU-40

AOU-65

Nominal Discharge Current

20

10

20

30

Max Discharge Current

Impulse Current

20

40

65

Max. Permissible Strength of Backup Fuse

50

50

100

125

Max Continuous Operating Voltage

275

340

385

440

275

340

385

440

275

340

385

440

275

340

385

440

Protection Level

1.7

1.8

2.0

2.2

1.3

1.5

1.6

1.8

1.5

1.8

1.8

2.0

1.6

1.9

2.0

2.2

Protection Class

Level 1 Protection

Level 2 Protection

Level 2 Protection

Waveform

8/20与10/350

8/20 and 10/350

8/20

Leakage Current

≤20

Response Time

≤25

Product Srtucture

Plug

Protection Method

Protection of Incoming Line

Pole

1,2,3,4,1+N,3+N

Working Condition Indicator Window

Green: Normal, Red: Fault

Wiring Capacity of Terminal

Minimum Size of Copper Conductor 4m㎡, Maximum Size: Unistrand 36m㎡, Multistrand 25m㎡

Standards

IEC61643-1、GB18802.1

Optional Accessories

Yes (YX telecommand)

Installation

It is modular construction which can directly install at thestandard DIN rail. Rated Torque: 3.5NM

Protection Level

IP20


Type

AOU-80

AOU-120

AOU-160

Nominal Discharge Current

40

60

80

Max Discharge Current

80

120

160

Max. Permissible Strength of Backup Fuse

160

200

250

Max Continuous Operating Voltage

275

340

385

440

275

340

385

440

275

340

385

440

Protection Level

2.2

2.5

2.5

2.8

2.3

2.5

2.5

2.8

2.3

2.5

2.5

2.8

Leakage Current

≤20

Response Time

≤25

Product Srtucture

Plug

Protection Class

Level 2 Protection

Pole

1,2,3,4,1+N,3+N

Working Condition Indicator Window

Green: Normal, Red: Fault

Wiring Capacity of Terminal

Minimum Size of Copper Conductor 4m㎡, Maximum Size: Unistrand 36m㎡, Multistrand 25m㎡

Standards

IEC61643-1、GB18802.1

Optional Accessories

Yes (YX telecommand)



Annex:

Name

Telecommand

Rated Operational Voltage

125V

Rated Operating Current

1A

Contact

One normally open contact, one normally closed contact.

Function

When SPD module fails and disconnects, normally open contacts will close and normally closed contacts will break. A fault message will be sent.

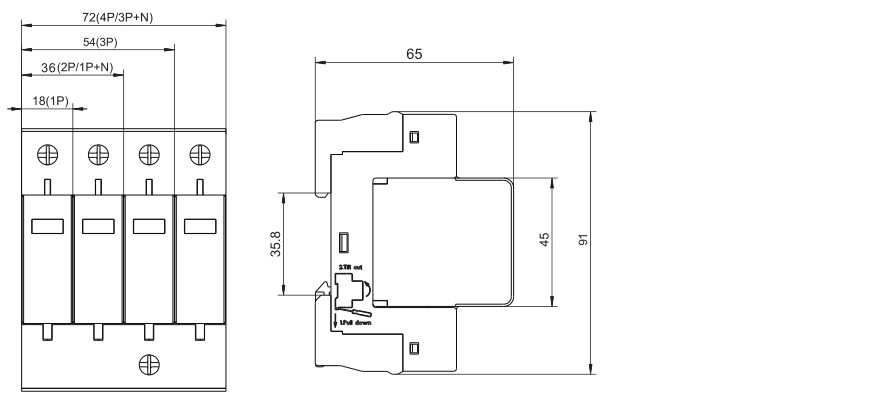

Outline Overall and Installation Dimensions (mm):

AOU-15~65


Product Model

Specification

 Width (mm)

AOU-15~65

1P

18

2P/1P+N

36

3P

54

4P/3P+N

72

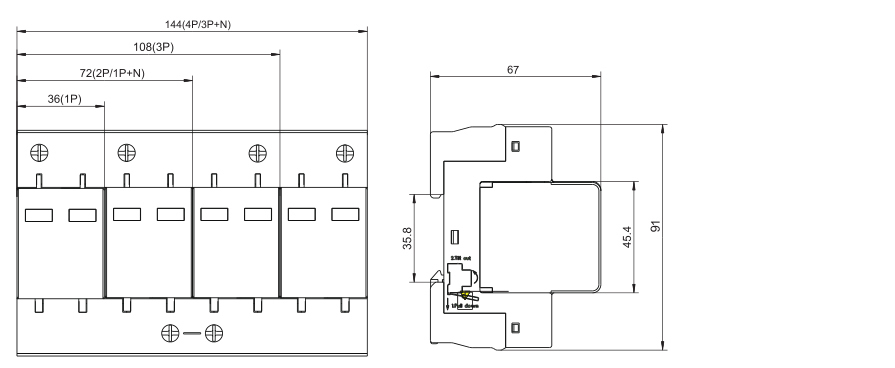

Outline Overall and Installation Dimensions (mm):

AOU-80~160

Product Model

Specification

  Width (mm)

AOU-15~65

1P

18

2P/1P+N

36

3P

54

4P/3P+N

72


Wiring diagram of AOU surge protector:

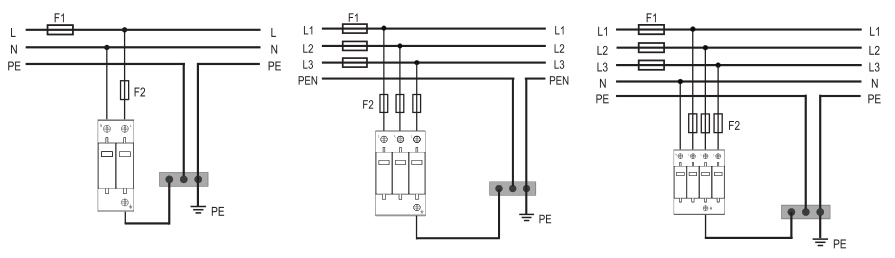

Schematic diagram of TN-S system installation:

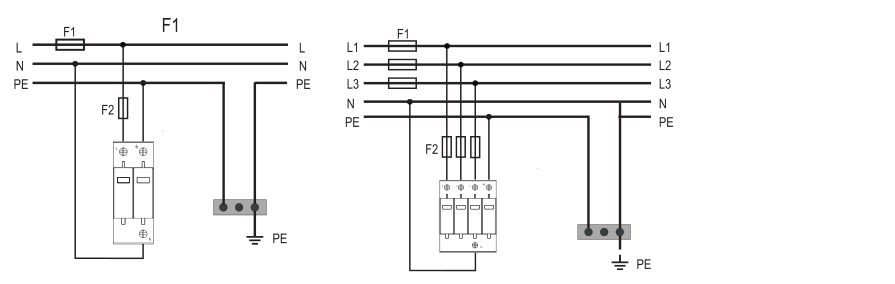

Schematic diagram of TT-S system installation:
