Type and Signification
Technical Parameters
| Product model | Two-phase | AORD-06/2 | AORD-30/2 | AORD-60/2 | AORD-120/2 | |
| Three-phase | AORD-06/3 | AORD-30/3 | AORD-60/3 | AORD-120/3 | ||
| Setting current(A) | 1~6A | 5~30A | 5~60A | 10~120A | ||
| Time setting | Starting D-Time |
0.2~60 sec |
||||
| Operation O-Time | 0.2~12 sec | |||||
| Reset | Manual/Electric Reset | |||||
| Operating Time Spec | Constant time-lag | |||||
| Accuracy | Current | ±5% | ||||
| Time | ±5% | |||||
|
Control Voltage |
Voltage range | 230V | AC 90~260V | |||
| 400V | AC 180~460V | |||||
|
Frequency |
50/60Hz | |||||
| Auxiliary Contactor | Auxiliary Contactor | 1-SPDT(1C) | ||||
| Capacity |
5A/250VAC Resistive |
|||||
| Insulation | Between Case&Circuit | 500VDC/100MQ | ||||
|
Dielectric strength |
Between Case&Circuit | 2.0kV,50/60Hz,1min | ||||
| Between contacts | 1.0kV,50/60Hz,1min | |||||
| Between circuit | 2.0kV,50/60Hz,1min | |||||
| Environment |
Temperature |
Storage | -30~80℃ | |||
| Operation | -20~60℃ | |||||
| Humidity |
30~85% RH Not-condensate |
|||||
|
Mounting |
35mm DIN-Rail / Panel | |||||

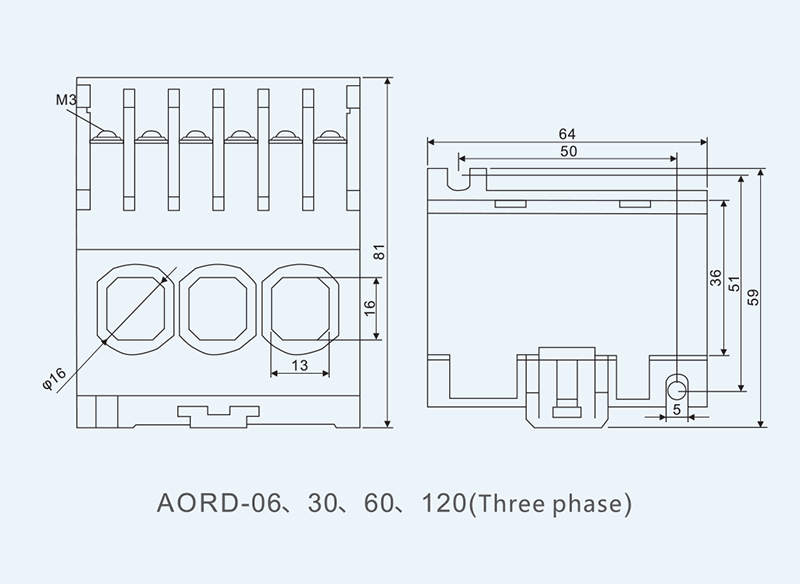

Outline Dimension
