Product selection guide：
Main performance indexes：
|
Type |
AOMD-125H |

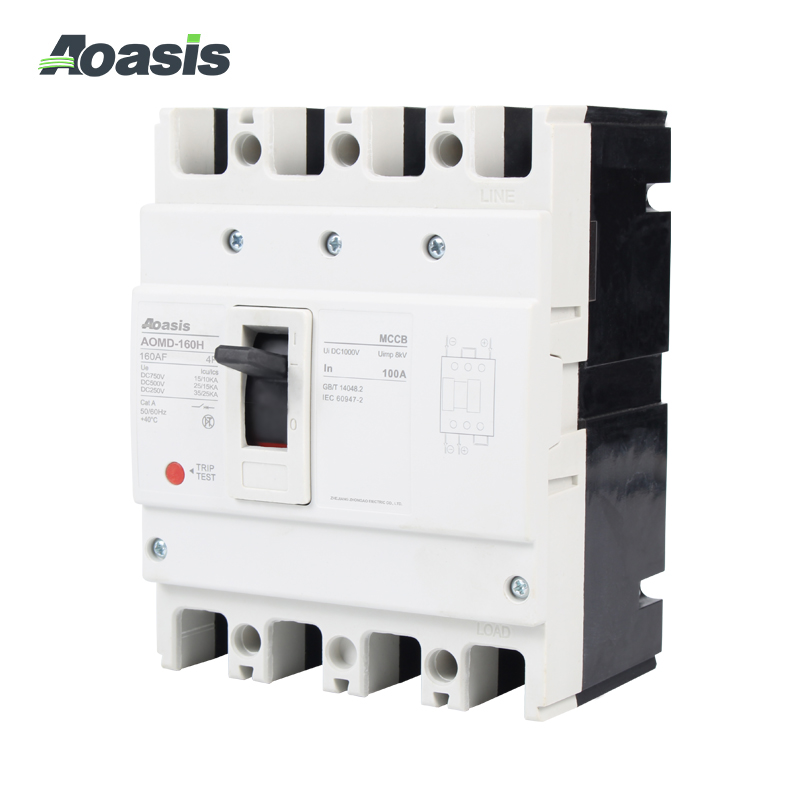

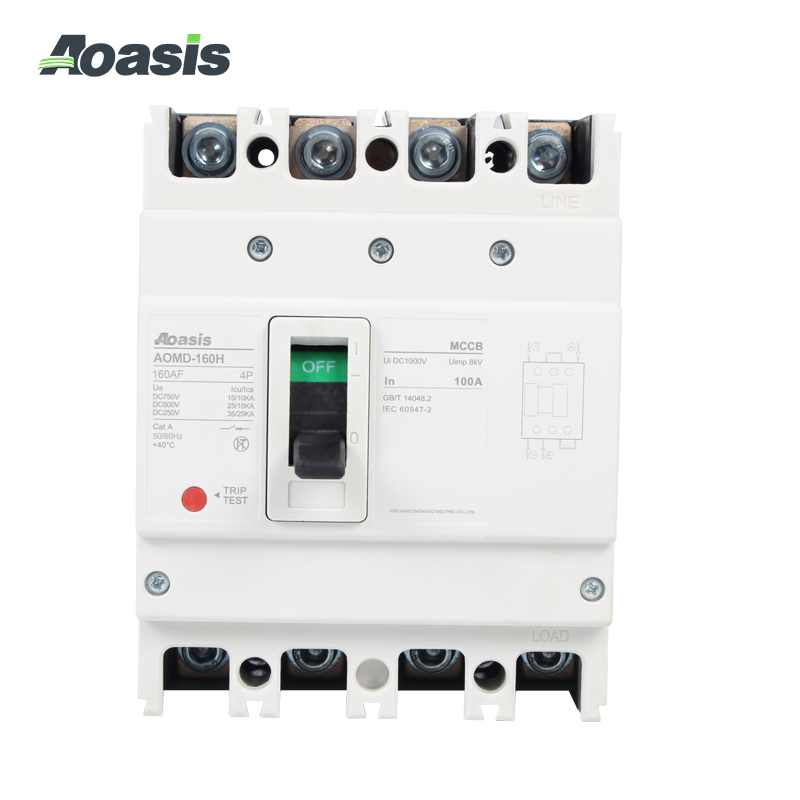

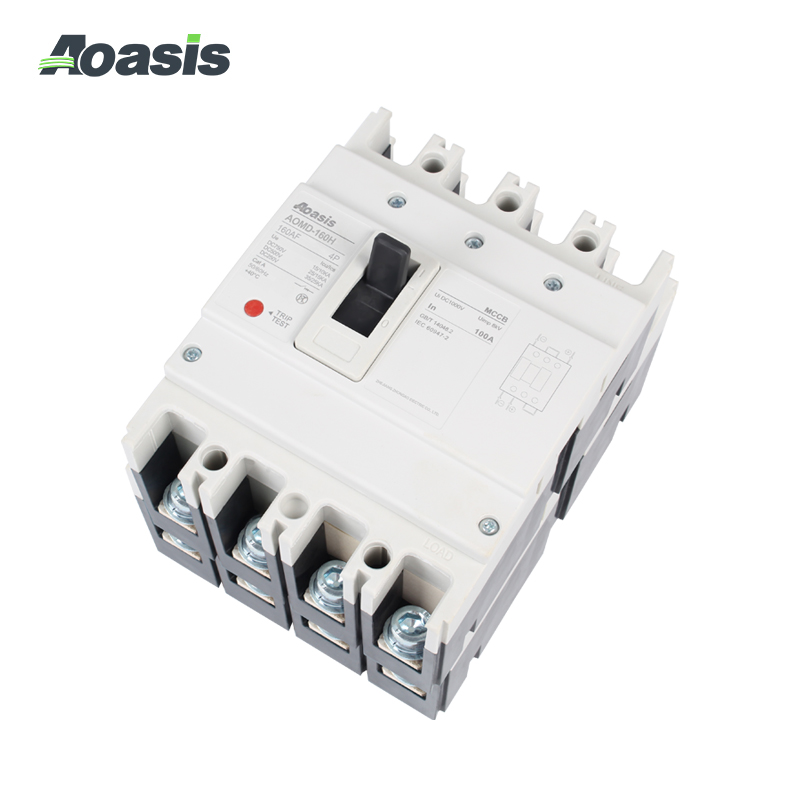

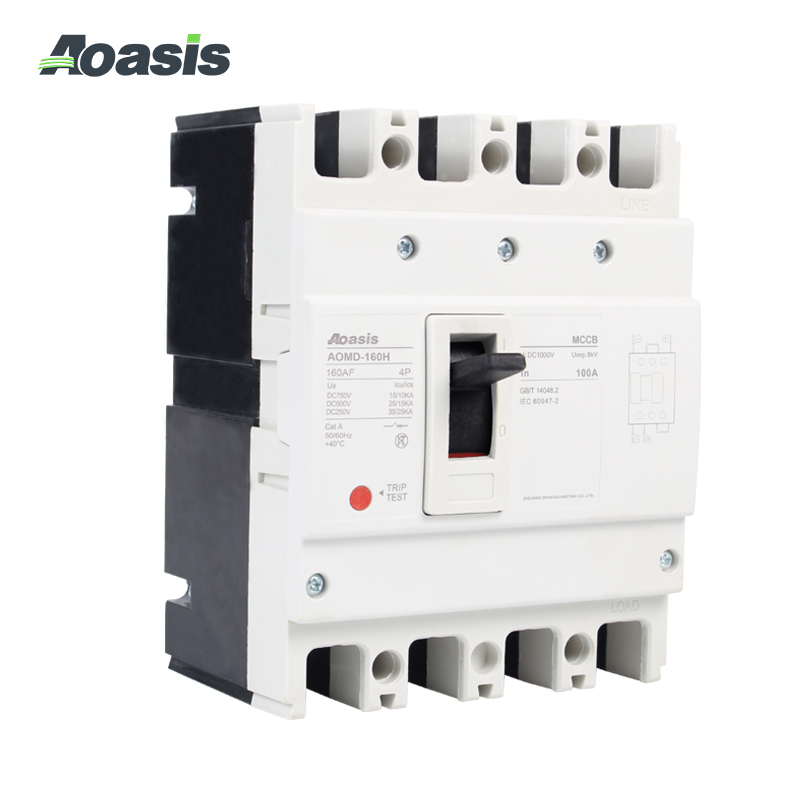

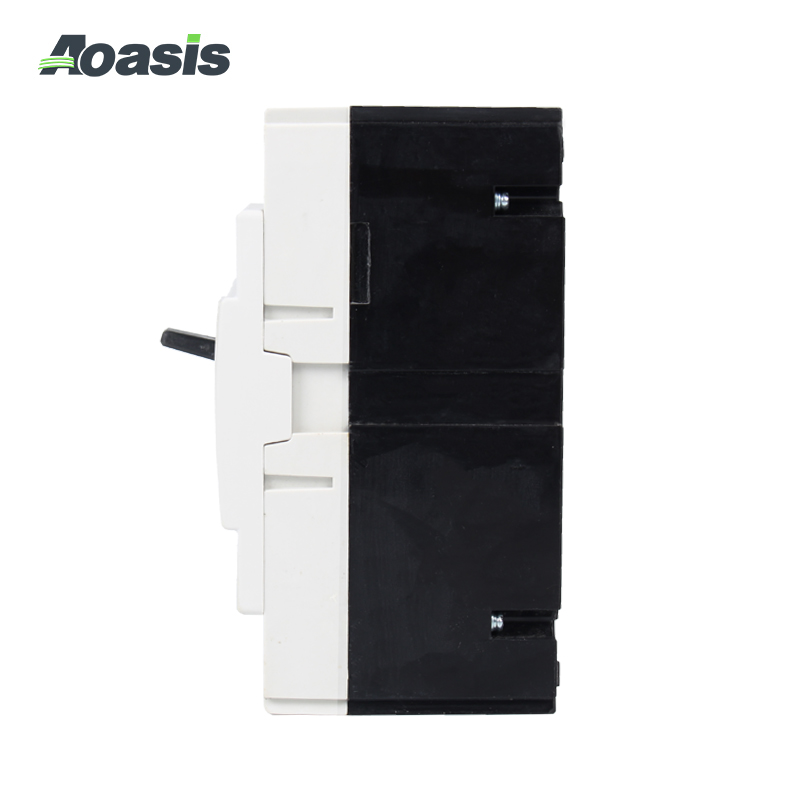

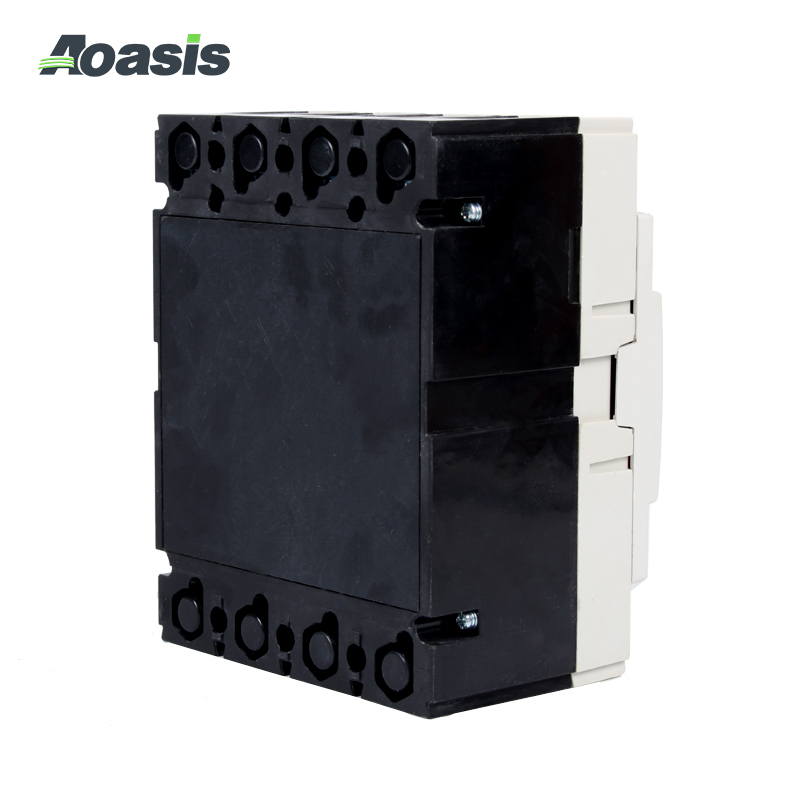

AOMD-160H |
AOMD-250H |
|
|
Pole |
2P, 3P, 4P |
2P, 3P, 4P |
2P, 3P, 4P |
|
|
Rated current (A) |
16, 20, 32, 40, 50,
63, 80, 100, 125
|
16, 20, 32, 40, 50,63, 80,
100, 125, 140, 160
|
125, 140, 160, 180, 200, 225, 250 |
|
|
Rated voltage |
DC250V, DC500V,
DC750V, DC1000V
|
DC250V, DC500V,
DC750V, DC1000V
|
DC250V, DC500V,
DC750V, DC1000V
|
|
|
Rated insulation voltage |
DC1000V |
DC1000V |
DC1000V |
|
|
Short-circuit breaking capacity (KA)
lcu(lcs=70%Icu)
|
DC250V(35kA), DC500V(25kA), DC750V(15kA), C1000V(10kA) |
DC250V(35kA), DC500V(25kA), DC750V(15kA), DC1000V(10kA) |
DC250V(35kA), DC500V(25kA), DC750V(15kA), DC1000V(10kA) |
|
|
Operating cycle number |
ON |
6000 |
3000 |
3000 |
|
OFF |
9000 |
7000 |
7000 |
|
|
Outline dim. (mm) a-b-c-ca |
2P |
50-130-68-90 |
60-155-88-115 |
- |
|
3P |
75-130-68-90 |
90-155-88-115 |
105-165-88-115 |
|
|
4P |
100-130-68-90 |
120-155-88-115 |
140-165-88-115 |
|
|
Weight (kg) |
2P |
0.55 |
1.0 |
- |
|
3P |
0.65 |
1.1 |
1.5 |
|
|
4P |
0.8 |
1.4 |
1.9 |
|
|
Electric operating device (MD) |
● |
● |
● |
|
|
External driving operating handle |
● |
● |
● |
|
|
Automatic release |
Thermal electromagnetic type |
Thermal electromagnetic type |
Thermal electromagnetic type |
|
