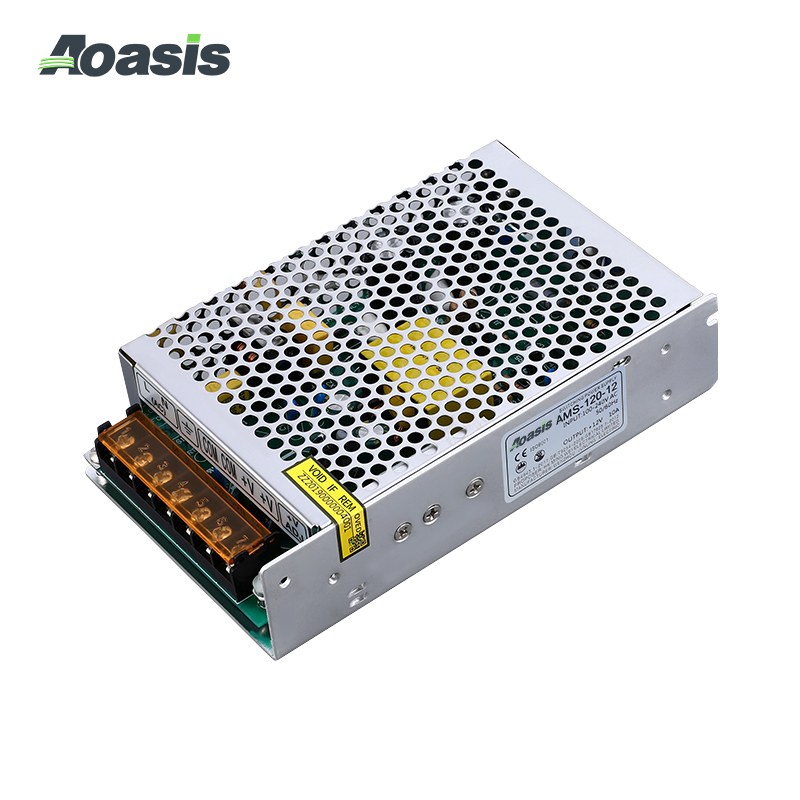

| Product model | AMS-120 | AMS-200 | AMS-250 | |
| Meet a criterion | TUVEN60950，EN61558-1/-2-16，UL60950-1，GB4943 | |||
| Output | DC voltage (V) |
5V、12V、24V、36V、48V |
||
| Rated current (A) | 20、10、5、3.35、2.5 | 40、20.8、10.4、7、5.2 | ||
| Rated power (W) | 50、60、60、61.3、60 | 200、249.6、249.6、252、249.6 | ||
| Ripple and noise | <50mV、<120mV、<150mV、<240mV、<240mV | |||
|
Ripple swept noise |
±10% | |||
| Voltage accuracy | 5V ±2% 12V~48V ±1% | |||
| Linear adjustment rate | <±0.5% | |||
| Load regulation rate | 5V < ±1.5% 12V~48V < ±0.5% | |||
| Start up time | 200ms、50ms/220VAC | |||
| Keep time | 20ms/220VAC | |||
| Import | Voltage range/frequency | 85-264VAC 47Hz~63Hz(120VDC~370VDC) | ||
| Efficiency (typical) | >78%、>82%、>84%、>84%、>84% | |||
| Working current | <2A 110VAC <1.3A 220VAC | <2.5A 220VAC | ||
| Shock current |
110VAC 18A 220VAC 36A |
|||
| Leakage current | 1.5KVAC时 <5mA 220KVAC时 <1mA | |||
| Protect | Overload protection |
≥105%-150% Type:Cconstant current ouput +VO down to the under-voltage point cut off output,reset |
||
| Overvoltage protection |
+VO down to the undervoltage point to close the output |
|||
| Environment | Working temperature and humidity | -10℃~+50℃; 20%~90RH | ||
| Storage temperature and humidity | -20℃~+85℃; 10%~95RH | |||
| Safety standard | Pressure resistance |
Input-output:1.5KVAC Input-output(enclosure):1.5KVAC/0.5KVAC |
||
| Insulation impedance | Input-output(enclosure):500VDC/100MΩ | |||
|
Else |
Size | 159*98*38mm(L*W*H) | 199*110*50mm(L*W*H) | |
| Net weight/Gross weight | 436g/478g | 727/780g | ||
