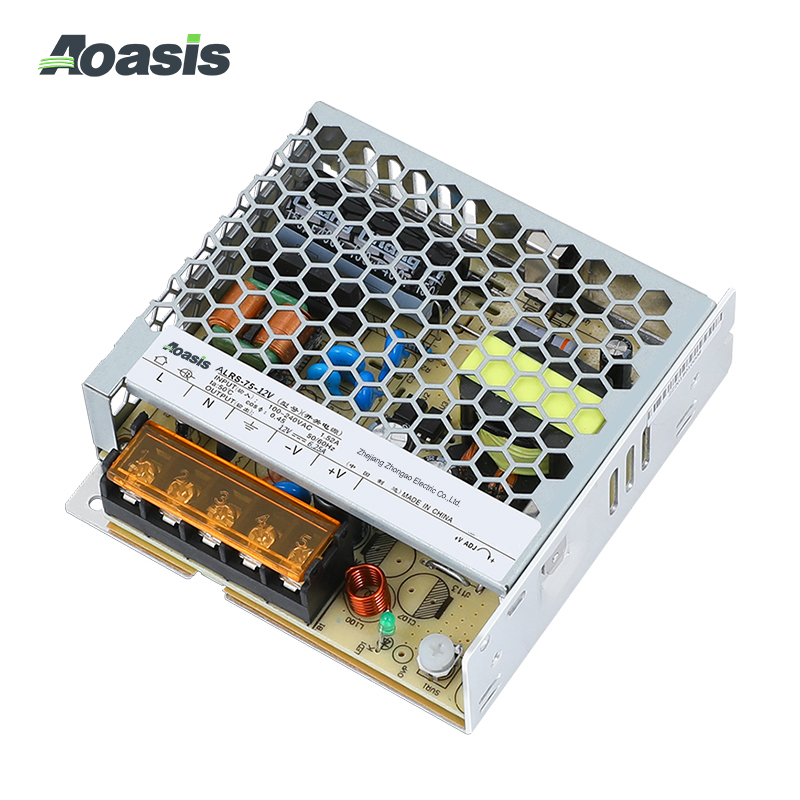

| Product model | ALRS-75 | ALRS-100 | |
| Meet a criterion | TUVEN60950，EN61558-1/-2-16，UL60950-1，GB4943 | ||
| Output | DC voltage (V) |
5V、12V、24V、36V、48V |
5V、12V、24V、36V、48V |
| Rated current (A) | 14A、6A、3.2A、2.1A、1.6A | 18A、8.5A、4.5A、2.8A、2.3A | |
| Rated power (W) | 70W、72W、76.8W、75.6W、76.8W | 90W、102W、108W、100.8W、110.4W | |
| Ripple and noise | 100mVp-p、120mVp-p、150mVp-p、200mVp-p、200mVp-p | ||
|
Ripple swept noise |
±10% | ||
| Voltage accuracy | 5V ±2.0% 12~48V ±1.0% | ||
| Linear adjustment rate | 5V ±0.5% 12~48V ±0.5% | ||
| Load regulation rate | 5V ±1.0% 12~48V ±0.5% | ||
| Start up time | 500ms、30ms/230VAC 500ms、30ms/115VAC | ||
| Keep time | 60ms/230VAC 12ms/115VAC | 55ms/230VAC 10ms/115VAC | |
| Import | Voltage range/frequency | 85-264VAC 120-373VDC/47Hz~63Hz | |
| Efficiency (typical) | 86.5% 89% 90% 91.5% 91.5% | 86% 88% 90% 90.5% 91% | |
| Working current | 1.4A/115VAC 0.85A/230VAC | 1.9A/115VAC 1.2A/230VAC | |
| Shock current |
65A/230VAC |
50A/230VAC | |
| Leakage current | <0.75mA 240VAC | <1mA 240VAC | |
| Protect | Overload protection | ≥110%-130% | |
| Overvoltage protection |
≥115%-145% |
||
| Environment | Working temperature and humidity | -30℃~+70℃; 20%~90RH | |
| Storage temperature and humidity | -40℃~+85℃; 10%~95RH | ||
| Safety standard | Pressure resistance |
Input-output:4KVAC Input-output(enclosure):2KVAC/1.25KVAC |
Input-output:3KVAC Input-output(enclosure):1.5KVAC/0.5KVAC |
| Insulation impedance | Input-output(enclosure):500VDC/100MΩ | ||
|
Else |
Size | 99*97*30mm(L*W*H) | 129*97*30mm(L*W*H) |
| Net weight/Gross weight | 250g/272g | 340g/365g | |
