Type and Signification：
Characteristics：

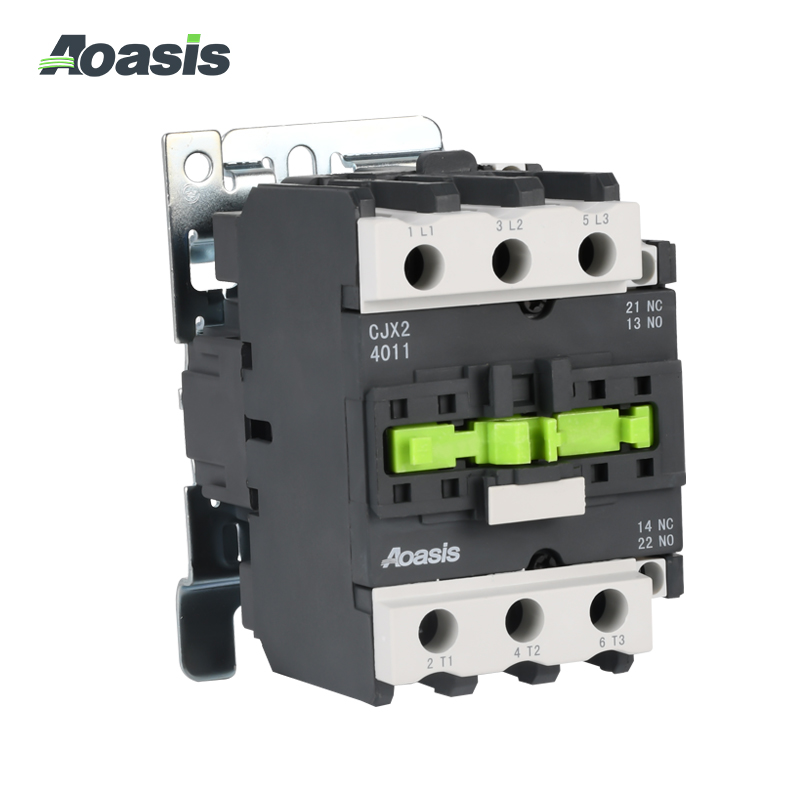

CJX2 Series products can use building-block install way to add auxiliary contact group time-delay block, thermal relay and other accessories forming various of derived products.
Accessory Assembly Illustration：
Technical parameters：
|
Type |
CJX2-40 |
CJX2-50 |
CJX2-65 |
CJX2-80 |
CJX2-95 |
CJX2-115 |
CJX2-150 |
CJX2-170 |
|||
|
Rated Power kW/HP(AC-3) IEC60947-4-1 GB14048.4 |
200-240V |
11/15 |
15/20 |
18.5/25 |
22/30 |
25/35 |
30/40 |
40/50 |
55/75 |
||
|
|
380-440V |
18.5/25 |
22/30 |
30/40 |
37/50 |
45/60 |
55/75 |
75/100 |
90/125 |
||
|
|
500-550V |
30/40 |
37/50 |
37/50 |
45/60 |
45/60 |
75/100 |
90/125 |
100/145 |
||
|
|
660-690V |
30/40 |
37/50 |
37/50 |
45/60 |
45/60 |
75/100 |
90/125 |
100/145 |
||
|
Rated Current A(AC-3) IEC60947-4-1 GB14048.4 |
200-240V |
50 |
60 |
75 |
90 |
110 |
125 |
165 |
175 |
||
|
|
380-440V |
40 |
50 |
65 |
80 |
95 |
115 |
150 |
170 |
||
|
|
500-550V |
34 |
39 |
42 |
49 |
59 |
100 |
120 |
125 |
||
|
|
660-690V |
34 |
39 |
42 |
49 |
59 |
100 |
120 |
125 |
||
|
Conventional Thermal Current Ith:(A) |
60 |
80 |
80 |
110 |
130 |
200 |
250 |
250 |
|||
|
Rated Insulated Voltage Ui:(V) |
690 |
1000 |
|||||||||
|
Auxiliary Contact
AC-15 |
Contact Arrangement |
Standard |
1NO+1NC |
--- |
|||||||
|
|
|
Special |
--- |
--- |
|||||||
|
|
Rated Current A(AC-15) IEC60947-5-1 GB14048.5 |
200-240V |
1.6 |
--- |
|||||||
|
|
|
380-440V |
0.95 |
--- |
|||||||
|
|
Conventional Thermal Current Ith:(A) |
16 |
--- |
||||||||
|
Mechanical Life(Million Times) |
6 |
5 |
|||||||||
Dimensions(mm)：
