Technical parameters:
|
Type |
4NO |
CJX2-09004 |
CJX2-12004 |

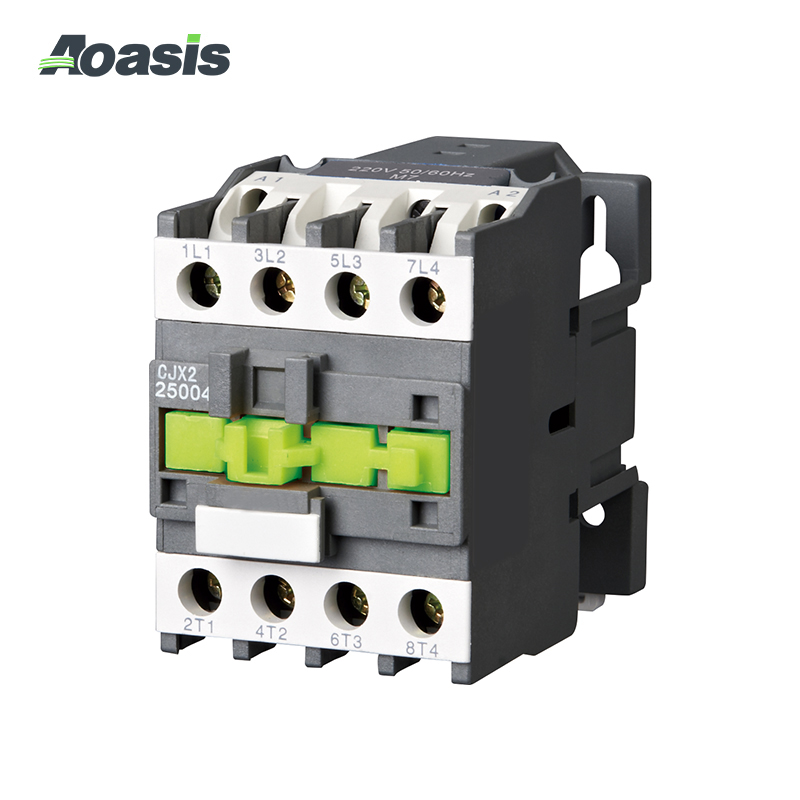

CJX2-25004 |
CJX2-40004 |
CJX2-50004 |
CJX2-65004 |
CJX2-80004 |
CJX2-95004 |
|
|
2NO+2NC |
CJX2-09008 |
CJX2-12008 |
CJX2-25008 |
CJX2-40008 |
CJX2-50008 |
CJX2-65008 |
CJX2-80008 |
CJX2-95008 |
||
|
Main circuit |
||||||||||
|
Pole |
4P |
|||||||||
|
Rated Insulated Voltage(V) |
690 |
|||||||||
|
Rated Operating Voltage(V) |
690 |
|||||||||
|
Stipulated Heating Current(A) |
25 |
25 |
40 |
60 |
80 |
80 |
125 |
125 |
||
|
Rated Working Current(A) |
AC-3380/400V A |
9 |
12 |
25 |
40 |
50 |
65 |
80 |
95 |
|
|
AC-3660/690V A |
6.6 |
8.9 |
18.0 |
34.0 |
39.0 |
42.0 |
49.0 |
49.0 |
||
|
AC-4380/400V A |
3.3 |
5.0 |
8.5 |
18.5 |
24.0 |
28.0 |
37.0 |
44.0 |
||
|
AC-4660/690V A |
1.5 |
2.0 |
4.4 |
9.0 |
12.0 |
14.0 |
17.3 |
21.3 |
||
|
Rated Power kW/HP(AC-3) |
AC-3380/400V KW |
4.0 |
5.5 |
11.0 |
18.5 |
22.0 |
30.0 |
37.0 |
45.0 |
|
|
AC-3660/690V KW |
5.5 |
7.5 |
15.0 |
30.0 |
33.0 |
37.0 |
45.0 |
45.0 |
||
|
AC-4380/400V KW |
1.2 |
2.2 |
4 |
7.5 |
11.0 |
15.0 |
18.5 |
22.0 |
||
|
AC-4660/690V KW |
1.1 |
1.5 |
4.0 |
7.5 |
11.0 |
11.0 |
15.0 |
18.5 |
||
|
Mechanical Life |
10 thousand times |
1000 |
800 |
600 |
||||||
|
Electrical Life |
AC-3 10 thousand times |
100 |
80 |
60 |
||||||
|
AC-4 10 thousand times |
20 |
15 |
10 |
|||||||
|
Operational Frequency |
AC-3 10 thousand times |
1200 |
600 |
|||||||
|
AC-3 10 thousand times |
300 |
300 |
||||||||
|
Equipped with fuse Protector |
RT16-25 |
RT16-25 |
RT16-50 |
RT16-63 |
RT16-80 |
RT16-80 |
RT16-125 |
RT16-125 |
||
|
Connection capacity mm² |
1.5 |
1.5 |
4 |
10 |
16 |
16 |
25 |
35 |
||
|
Coli |
||||||||||
|
Rated control circuit voltage (Us) |
50Hz V |
24、36、110、220、380 |
||||||||
|
50/60Hz50Hz V |
24、36、110、220、380 |
|||||||||
|
Allowed control circuit voltage |
Operation V |
85%~110% Us |
||||||||
|
Release OFF V |
20%~75% Us |
|||||||||
|
Coil power dissipation |
Attraction ON VA |
70 |
110 |
200 |
||||||
|
Keep VA |
9 |
11 |
24 |
|||||||
|
Power dissipation W |
2.7 |
4 |
10 |
|||||||
|
Connection capacity of wiring terminal |
||||||||||
|
Flexible wire
(without terminal)
|
1 wire mm² |
1…4 |
1.5…6 |
2.5…25 |
4…50 |
|||||
|
2 wire mm² |
1…4 |
1.5…6 |
2.5…16 |
4…25 |
||||||
|
Flexible wire
(with terminal)
|
1 wire mm² |
1…4 |
1…6 |
2.5…25 |
4…50 |
|||||
|
2 wire mm² |
1…2.5 |
1…4 |
2.5…10 |
4…16 |
||||||
|
Stiff cable (without terminal) |
1 wire mm² |
1…4 |
1.5…6 |
2.5…25 |
4…50 |
|||||
|
2 wire mm² |
1…4 |
1.5…6 |
2.5…10 |
4…25 |
||||||
Dimensions(mm):
CJX2-09004~25004、CJX2-09008~25008
|
Type |
A max |
B max |
C max |
C1 max |
C2 max |
a |
b |
c |
|
CJX2-09004、09008、12004、12008 |
47 |
76 |
82 |
115 |
134 |
35 |
50/60 |
4.5 |
|
CJX2-25004、25008 |
58 |
86 |
96 |
130 |
149 |
40 |
50/60 |
4.5 |
|
CJX2-40004、50004、65004 |
85 |
128 |
116 |
149 |
168 |
40 |
100/110 |
6.5 |
|
CJX2-40008、50008、65008 |
85 |
128 |
126 |
149 |
168 |
40 |
100/110 |
6.5 |
|
CJX2-80004、95004 |
96 |
128 |
127 |
160 |
179 |
40 |
100/110 |
6.5 |
|
CJX2-80008、95008 |
96 |
128 |
136 |
160 |
179 |
40 |
100/110 |
6.5 |
Note: C1max-contactor+F4, C2max-contactor+LA2
